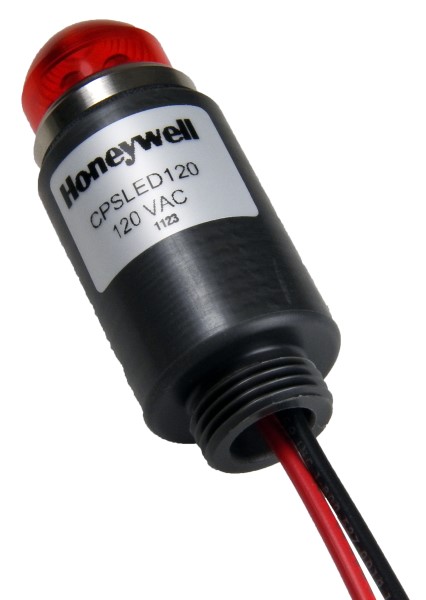

Honeywell CPSLED120 Cable Pull Safety Switch
Honeywell’s MICRO SWITCH CPSLED120 Cable-Pull Safety Switches offer a cost-effective solution for emergency stop signals, providing a readily accessible means compared to multiple push-buttons. The internal mechanism latches on both slackened and pulled cables, ensuring reliable operation. The switch features direct opening action, various contact configurations (1NO/1NC, 2NO/2NC, 1NO/3NC, or 4NC), and optional LED indicators for visual status. Suitable for long conveyor systems, automated environments, and applications requiring perimeter guarding, the CPSLED120 enhances productivity and safety.
Honeywell CPSLED120 Cable Pull Safety Switch Specifications:
- Description: cable-pull safety switches
- Switching options: 1NO/1NC direct acting, 2NO/2NC direct acting, 1NO/3NC direct acting, 4NC direct acting
- Sealing: IP67, NEMA 1, 4, 12, 13
- Contacts: silver, gold plated over silver
- Conduit/Connectors: 1/2 NPT, PG 13.5, 20 mm, PF 1/2; Brad Harrison 10-pin conductor
- Force to maintain actuation shaft (2CPS): 25 lb
- Actuation shaft operating force (2CPS): 40 lb
- Operating temperature: -40 °C to 80 °C [-40 °F to 176 °F]
- Storage temperature: -40 °C to 85 °C [-40 °F to 185 °F]
- Mechanical endurance: 1 million operations
- Rated thermal current (Ith): 10 A
- Rated impulse withstand (Uimp): 2500 V
- Rated insulation voltage (Ui): 300 V
- Useable gold-plated current: 1 mA to 50 mA, 60 Vdc max./125 Vdc max.
- Pollution degree: 3
- Conditional short circuit current: 1000 A
- Short circuit protective device: Class J fuse (10 A/600 V)
- Shock: 15 g per IEC 68-2-27
- Vibration: 10 Hz to 500 Hz, 5 g per IEC 68-2-6
- Approvals: UL, CSA, CE, SIL
- Standards: UL Listed, CSA Certified, CE mark, SIL
- Typical cable span: 76 m [250 ft]
