Honeywell DPRAAN0005NG0000A5 Pressure Sensor
The Honeywell DPR Series is a robust, industry-standard board mount pressure sensor designed for differential and gage pressure measurements in various industrial applications such as HVAC, leak detection, and pneumatic control. It features a fully calibrated, temperature-compensated silicon piezoresistive sensor module with analog voltage output, operating from a 5.0 V power supply. The sensors offer high accuracy with a total error band as low as +1.25% FSS, a stable offset voltage, and internal diagnostics. Suitable for dry, non-corrosive gases, the DPR Series ensures durability in demanding environments with internal diagnostics for failure detection and RoHS compliance.
Honeywell DPRAAN0005NG0000A5 Pressure Sensor Specifications:
- Pressure range: +1.6 mbar to +25 mbar | +160 Pa to +2.5 kPa | 40.5 inH,O to +10 inH,O
- Type: Differential and gage pressure measurement
- Accuracy: as low as +1.25% FSS BFSL, stable offset voltage
- Operating temperature: -20°C to 70°C (-4°F to 158°F), compensated range
- Supply voltage: 5.0 Vdc, minimum 3.0 Vdc, typical 5.25 Vdc
- Supply current: 27 to 35 mA
- Output: Analog voltage, transfer function 5% to 80% of Vref
- Response time: 1 ms, startup time: 5 ms
- Overvoltage and reverse polarity protected
- Durability: ≥1 million pressure cycles, burst pressure varies by model
- Material: Ports high-temp polyamide, alumina ceramic substrate, silicone O-rings
- Wetted materials: ceramic, silicon, glass, solder, epoxy, silicone
- Environmental specs: Humidity 0%-95% RH, non-condensing; vibration 15g; shock 100g, 6ms
- Certifications: RoHS compliant, UL listed
- Port options: Flying leads, AMP, Molex connector with various lengths

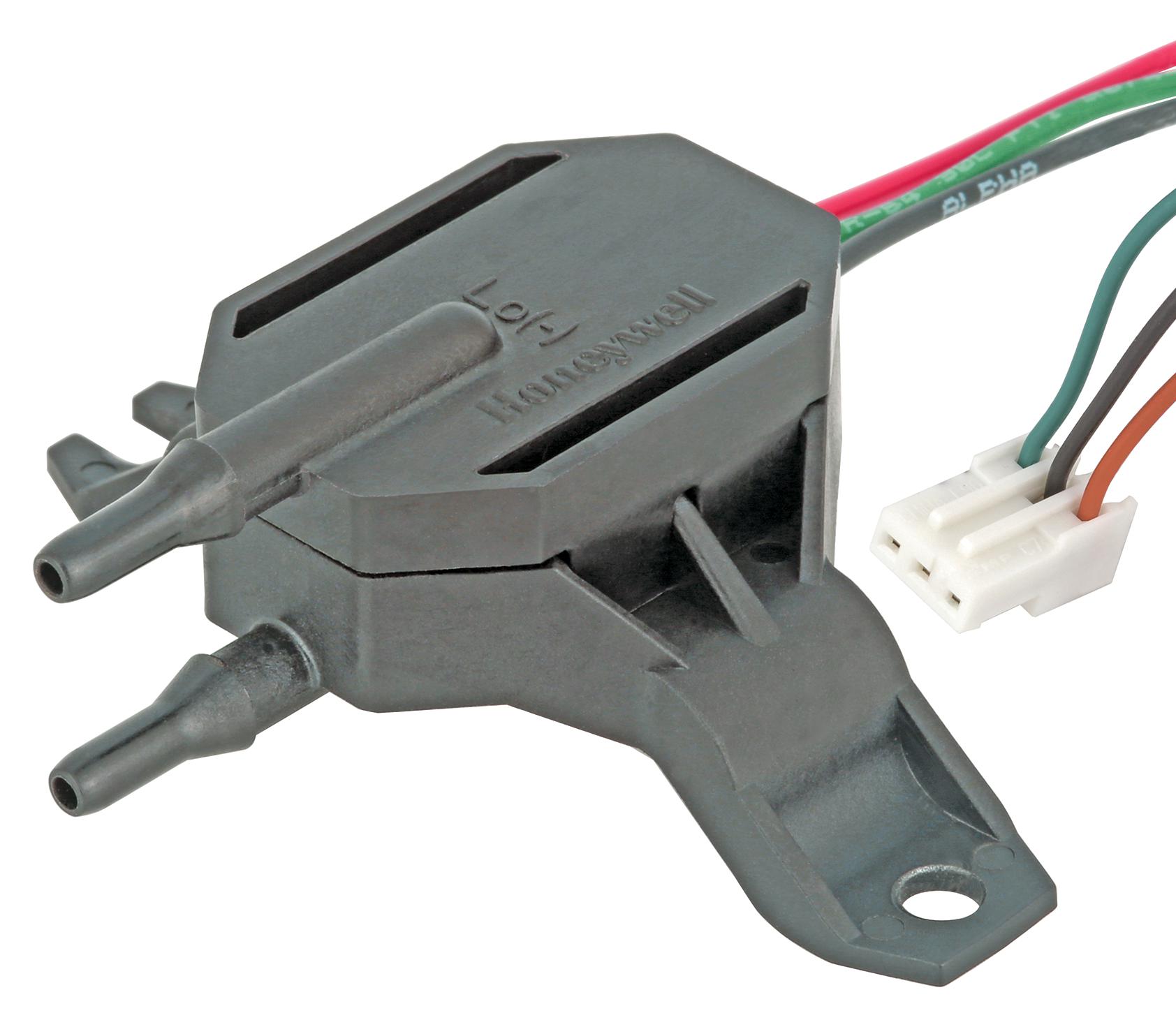

Buy the Honeywell Series DPR Pressure Sensor: DPRAAN0005NG0000A5
Purchase the Honeywell DPR Series pressure sensor online today for precise differential and gage pressure measurements in demanding industrial environments. Designed with a fully calibrated, temperature-compensated silicon sensor and analog voltage output, this sensor offers high accuracy with a total error band as low as +1.25% FSS. Suitable for dry, non-corrosive gases, its durable housing with industry-standard mounting ensures reliable operation in HVAC, leak detection, and pneumatic control systems. Get your DPR Series sensor online now for quick delivery and dependable performance.
Buy Honeywell DPR pressure sensor now and experience unmatched accuracy, durability, and internal diagnostics for industrial pressure monitoring.
Frequently Asked Questions
Where can I buy Honeywell DPRAAN0005NG0000A5?
You can click on the BUY or RFQ button to purchase DPRAAN0005NG0000A5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part DPRAAN0005NG0000A5?
You can download the DPRAAN0005NG0000A5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of DPRAAN0005NG0000A5?
Honeywell
