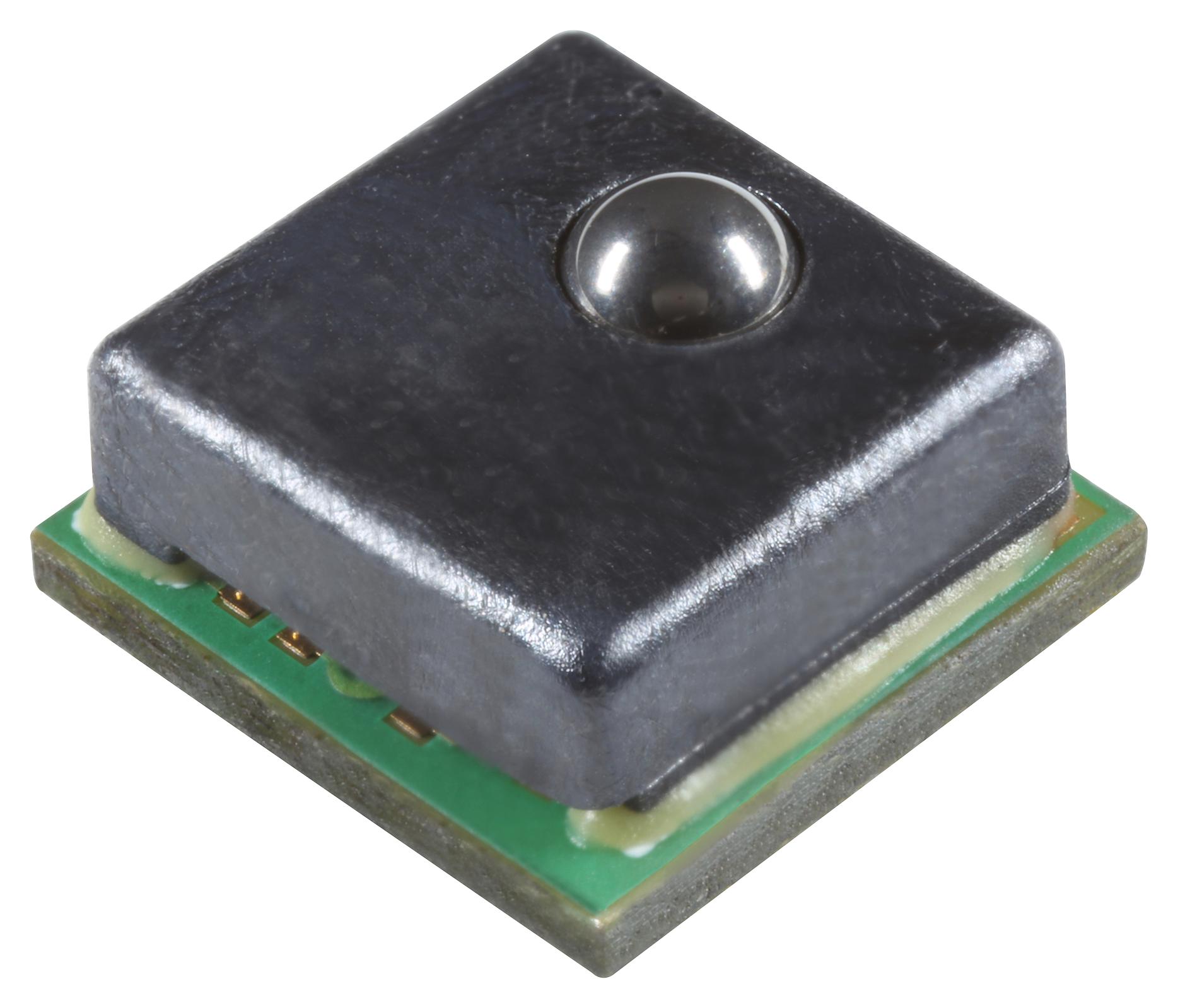

Honeywell FMAMSDXX015WCSC3 Force Sensor
The FMA series are piezoresistive force sensors equipped with a digital output, providing accurate force measurement over a specified full-scale range and temperature span. Fully calibrated and temperature compensated via an onboard ASIC, these sensors adjust for offset, sensitivity, temperature effects, and nonlinearity. They feature a mechanical coupling with a sphere contact element, allowing easy integration with tubing, membranes, or plungers, ensuring consistent performance and a reliable mechanical interface. Designed according to ISO 9001 standards, they deliver a stable output proportional to applied force. This model offers a 15N measurement range, with diagnostics for short and open circuits, and a SPI digital output. It operates on 3.3V supply within a small 5mm x 5mm form factor, with a transfer function of 20% to 80%. The device functions reliably over temperatures from 5°C to 50°C (41°F to 122°F) with low power consumption of 14mW, making it suitable for medical and industrial applications. Its robust construction provides durability even under over-force conditions.
Honeywell FMAMSDXX015WCSC3 Force Sensor Specifications:
- Size: 5 mm x 5 mm
- Force Range: 15 N
- Output: SPI or I2C compatible digital signal
- Calibration: Fully calibrated and temperature compensated
- Temperature Range: 5°C to 50°C (41°F to 122°F)
- Supply Voltage: 3.3 V ±10%, 5.0 V ±10%
- Power Consumption: 14 mW
- Overforce Limit: 3X force range
- Response Time: 0.42 to 0.84 ms
- Total Error Band: ±8% of FSS
- Accuracy: ±2% FSS typical
- Materials: Stainless steel sphere contact, liquid crystal polymer housing
- Diagnostics: Short and open circuit detection
- Environmental: Operating in humidity 0-95% RH, non-condensing; shock and vibration resistant per MIL-STD
- Connector: SPI or I2C interface, compatible with common microcontrollers
- Durability: Up to 1 million force cycles
Buy the Buy Honeywell FMA Series Part Number FMAMSDXX015WCSC3 Online
Acquire the Honeywell FMA Series force sensor, model FMAMSDXX015WCSC3, capable of measuring up to 15N with high accuracy, digital output, and robust construction. Designed for demanding medical and industrial environments, it ensures stable readings over a wide temperature range. Its compact 5mm x 5mm size enables easy integration into space-constrained applications. Featuring advanced diagnostics, low power consumption, and temperature compensation, this sensor provides reliable, repeatable force measurements, making it an essential component for force sensing, automation, robotics, and load monitoring systems.
Buy Honeywell FMAMSDXX015WCSC3 now and experience unmatched reliability and performance in force measurement for industrial and medical applications.
Frequently Asked Questions
Where can I buy Honeywell FMAMSDXX015WCSC3?
You can click on the BUY or RFQ button to purchase FMAMSDXX015WCSC3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part FMAMSDXX015WCSC3?
You can download the FMAMSDXX015WCSC3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of FMAMSDXX015WCSC3?
Honeywell
