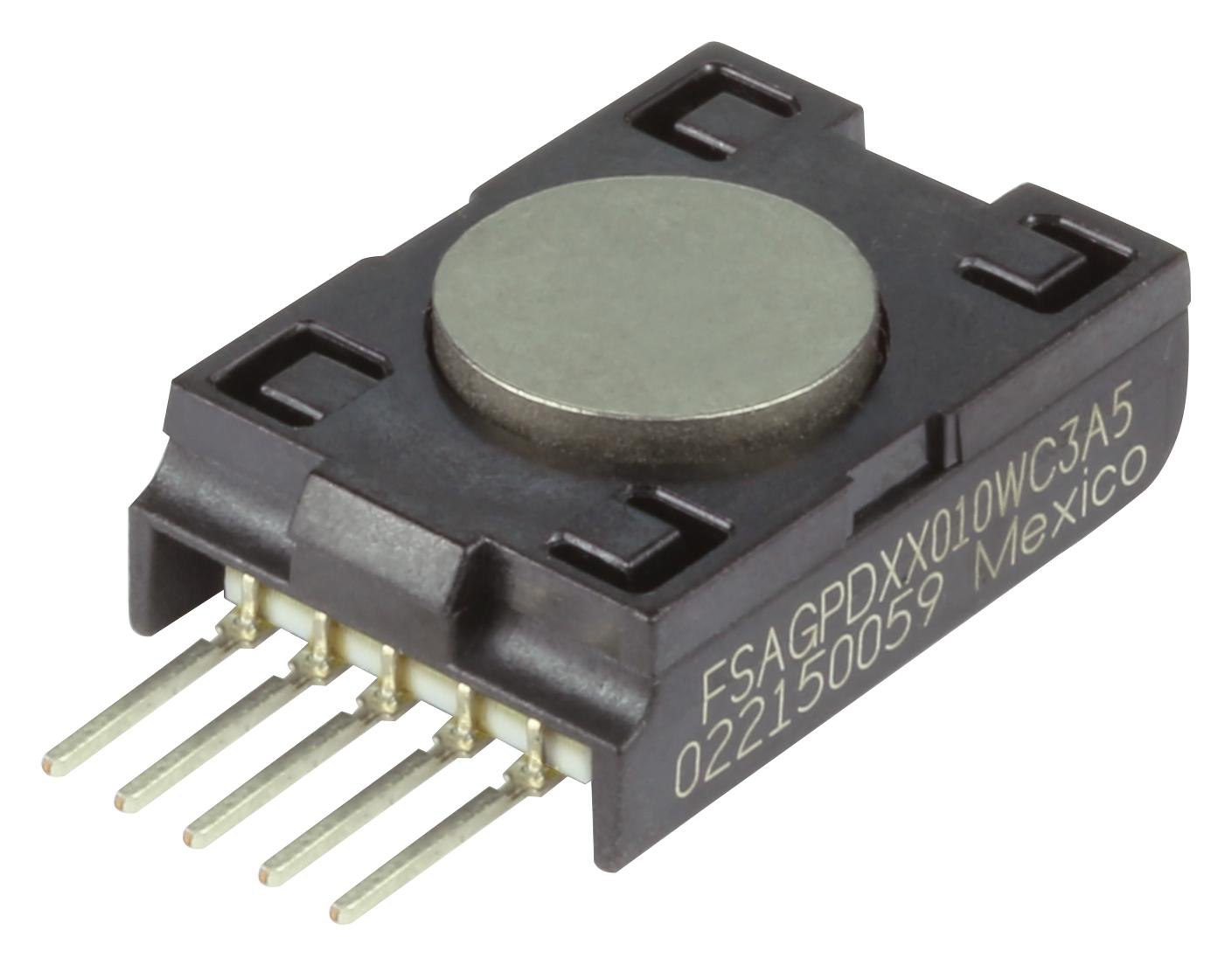

Honeywell FSAGPNXX010WC2C3 Force Sensor
The FSA Series force sensors by Honeywell are piezoresistive-based devices that deliver accurate analog and digital outputs over a wide force range. Fully calibrated and temperature compensated, they feature on-board ASIC for enhanced performance, durability, and corrosion resistance. Suitable for medical and industrial applications, these sensors offer multiple force ranges, diagnostic functions, and low power consumption. Their robust design ensures reliable, repeatable measurements, with features like overforce protection and excellent long-term stability, making them ideal for load sensing, infusion pumps, and compression sensing tasks.
Honeywell FSAGPNXX010WC2C3 Force Sensor Specifications:
- Supply voltage: 3.3 Vdc (typ. +10%) or 5.0 Vdc (typ. +10%)
- Supply current: 2.0 mA (3.3 V), 2.6 mA (5 V)
- Power input: 13-20 mW
- Operating temperature: 0°C to 70°C (32°F to 158°F)
- Storage temperature: -40°C to 85°C (-40°F to 185°F)
- Response time: 0.42 to 0.84 ms
- Total Error Band: +5% FSS
- Accuracy: ±3% FSS
- Overforce limit: 6804 g (15 lb)
- Force ranges: 5N, 7.5N, 10N, 15N, 20N, 25N, 1 lb, 1.5 lb, 2 lb, 3 lb, 5 lb, 500 g, 750 g, 1 kg, 2 kg
- Outputs: Ratiometric analog, SPI, I2C digital
- Protection features: Diagnostics for sensor shorts/opens, corrosion-resistant package
- Materials: high-temperature polyamide, stainless steel 316, alumina ceramic
- Shock/vibration: MIL-STD-202, Method 214/213
- Life cycle: ≥1 million force cycles
- Mounting dimensions: Approx. 25.02 mm x 23.57 mm
Buy the Honeywell Series FSA: Force Sensor 010WC2C3
Purchase the Honeywell FSA Series force sensor online today and benefit from precise, calibrated force measurement suitable for medical and industrial applications. With features like digital and analog outputs, extensive force ranges, and advanced diagnostics, this sensor ensures dependable performance. Its durable construction and corrosion-resistant materials make it ideal for load sensing, infusion pumps, and compression sensing tasks. Simplify your project requirements by ordering this high-quality sensor online for quick delivery and expert support.
Order your Honeywell Series FSA 010WC2C3 force sensor today and enhance your force measurement accuracy with reliable, long-lasting performance.
Frequently Asked Questions
Where can I buy Honeywell FSAGPNXX010WC2C3?
You can click on the BUY or RFQ button to purchase FSAGPNXX010WC2C3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part FSAGPNXX010WC2C3?
You can download the FSAGPNXX010WC2C3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of FSAGPNXX010WC2C3?
Honeywell
