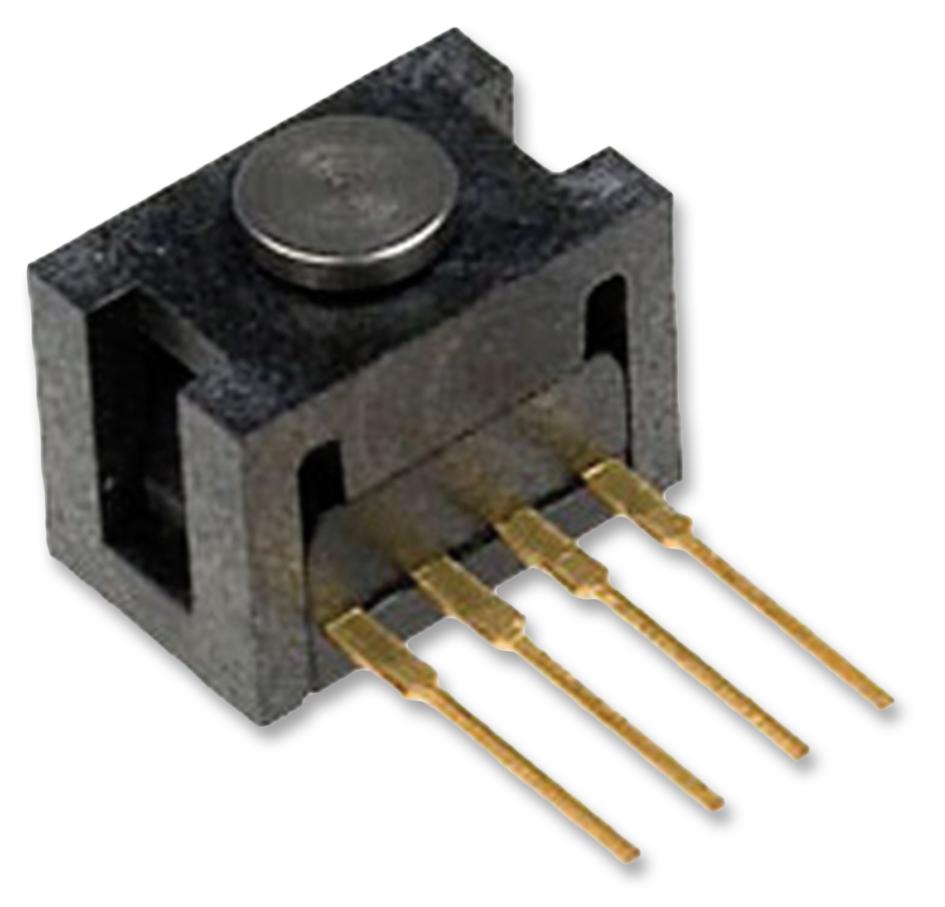

Honeywell FSG015WNPB Force Sensor
The Honeywell FSG Series Force Sensor offers precise, reliable force measurement in a compact design, utilizing a piezoresistive silicon sensing element with stable mV output. Featuring low deflection, high linearity (+0.5% span), repeatability (+0.2% span), and fast response times, it suits medical and industrial applications requiring accurate force sensing. The sensor is designed for durability with a stainless steel plunger, multiple mounting options, and overforce capacities up to three times the rated force. Its low power consumption and high ESD resistance ensure reliable operation in sensitive environments.
Honeywell FSG015WNPB Force Sensor Specifications:
- Force sensing range: 0 N to 15 N
- Operating temperature: -40°C to 85°C [-40°F to 185°F]
- Storage temperature: -40°C to 100°C [-40°F to 212°F]
- Excitation voltage: 3.3 V to 12.5 V
- Null offset: -30 mV to +30 mV
- Span: 395 mV at 10 N; 310 mV at 5 N; 395 mV at 15 N; 310 mV at 10 N
- Linearity: ±0.5% span
- Sensitivity: 6.6 to 7.2 mV/V/N
- Response time: 0.08 seconds
- Overforce capacity: up to 45 N
- Shock qualification: 150 g
- Vibration qualification: 0 Hz to 2 kHz, 20 g sine
- Electrical resistance: input 4-6 kΩ, output 4-6 kΩ
- Mounting options include brackets and various actuation heights
- ESD sensitivity level 3B, ensuring durability against static discharge
- Sensing technology: piezoresistive silicon element with stable mv output
- Sensor package design includes modular construction and elastomeric technology
- Designed for use in medical infusion pumps, robotic end-effectors, load sensing, and tension control
Buy the Honeywell Series FSG Force Sensor: FSG015WNPB
Experience the high-precision Honeywell Force Sensor from the FSG Series, designed for medical and industrial applications. With a sensing range of 0 to 15 newtons, it features stable piezoresistive silicon technology, low deflection, and excellent linearity. Compact and customizable, this sensor offers quick response, high ESD resistance, and overforce capacity up to three times rated force. Perfect for load measurement, robotic end-effectors, or tension control, it ensures reliable performance and durability for demanding environments.
Get Honeywell FSG015WNPB today—built for precision and long-lasting durability in force measurement applications.
Frequently Asked Questions
Where can I buy Honeywell FSG015WNPB?
You can click on the BUY or RFQ button to purchase FSG015WNPB from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part FSG015WNPB?
You can download the FSG015WNPB datasheet or visit the Honeywell website for support.
Who is the manufacturer of FSG015WNPB?
Honeywell
