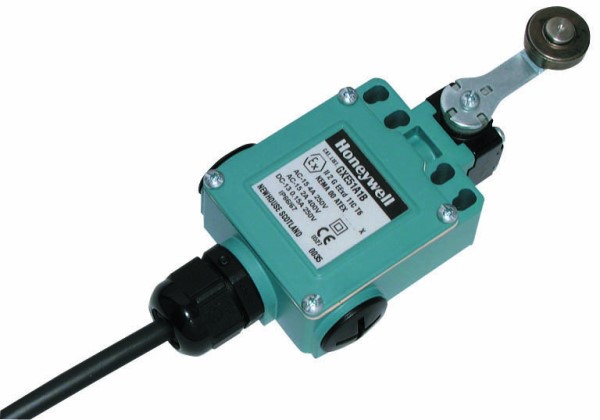

Honeywell GXE51A1B Explosion-Proof Limit Switch
The GXE51A1B explosion-proof limit switch is designed for hazardous environments, featuring side rotary actuation with a 1NC 1NO SPDT snap action mechanism and a 5-meter cable. It is constructed with rugged zinc die-cast housing, fully sealed with IP66/67 protection, and complies with ATEX, IEC, EN standards. Suitable for Category 2 or 3 explosive atmospheres in petrochemical, material handling, and valve applications, it offers durability, reliable switching, and certifications for use in hazardous areas with operating temperatures from -25°C to 75°C.
Honeywell GXE51A1B Explosion-Proof Limit Switch Specifications:
- Actuator Type: Side Rotary
- Circuitry: 1NC 1NO SPDT Snap Action
- Ampere Rating: 5 A (Thermal)
- Supply Voltage: 240 Vac
- Housing Material: Zinc Die-Cast
- Termination Type: 5 m Cable (Bottom Exit Cable Only)
- Sealing Standard: IP66/67
- Approvals: CE Certified, KEMA 00 ATEX 2103 X
- Mechanical Life: Up to 2 million cycles
- Operating Temperature Range: -25°C to 75°C (35°F to 168°F)
- Standards: EN50014, EN50018,IEC947-5-1, EN60947-5-1
- Explosion Protection: EEx d IIC T6
- Series: GXS Series
Buy the Honeywell Series GXS Explosion-Proof Limit Switch: GXE51A1B
Order the Honeywell GXE51A1B explosion-proof limit switch online today. Designed for hazardous areas, it features a rugged zinc die-cast housing, IP66/67 sealing, and a 5-meter cable. The side rotary actuator with snap action switch ensures reliable performance in petrochemical, material handling, and valve applications. Certified to meet ATEX and IEC standards, this switch offers durability, up to 2 million mechanical cycles, and operates within -25°C to 75°C temperatures. Secure your safety and efficiency with this essential control device.
Get Honeywell GXE51A1B explosion-proof limit switch today—built for hazardous environments with reliable, durable operation and industry-standard certifications.
Frequently Asked Questions
Where can I buy Honeywell GXE51A1B?
You can click on the BUY or RFQ button to purchase GXE51A1B from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part GXE51A1B?
You can download the GXE51A1B datasheet or visit the Honeywell website for support.
Who is the manufacturer of GXE51A1B?
Honeywell
