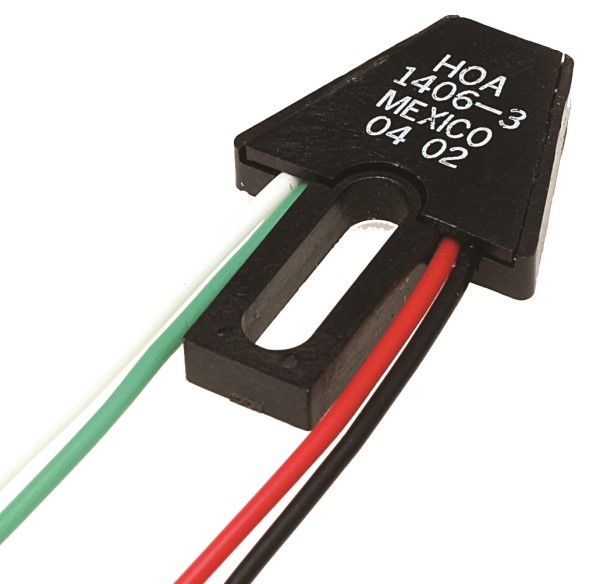

Honeywell HOA1406003 Reflective Infrared Sensor
The Honeywell HOA1406 series is a reflective sensor designed for applications requiring a compact and reliable solution. It combines an infrared emitting diode facing an NPN silicon phototransistor (HOA1406-001) or photodarlington (HOA1406-003) in a thermoplastic housing. This sensor is ideal for space-constrained environments or where multiple sensors need to be stacked. The hermetically sealed construction ensures durability and consistent performance. Cleaning recommendations include methanol and isopropanol.
Honeywell HOA1406003 Reflective Infrared Sensor Specifications:
- Choice of output: Phototransistor or photodarlington
- Package type: Low profile
- Emitter and detector: Hermetic style
- Lead wires: 24.0 in.(610 mm) min. 26 AWG Teflon insulated
- Housing material: Polycarbonate
- Cleaning agents: Methanol and isopropanol
- Wire color code: IRED anode - red, IRED cathode - black, Collector - white, Emitter - green
- Operating Temperature Range: -40¡C to 100¡C
- Storage Temperature Range: -40¡C to 100¡C
- IR emitter power dissipation: 80 mW
- IR emitter reverse voltage: 3 V
- IR emitter continuous forward current: 50 mA
- Detector collector-emitter voltage: 30 V
- Detector emitter-collector voltage: 5 V
- Detector power dissipation: 75 mW
- Detector collector DC current: 30 mA
Buy the HOA1406-003 HONEYWELL Reflective Infrared Sensor | myMectronic
Purchase the Honeywell HOA1406-003 Reflective Sensor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HOA1406003?
You can click on the BUY or RFQ button to purchase HOA1406003 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HOA1406003?
You can download the HOA1406003 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HOA1406003?
Honeywell
