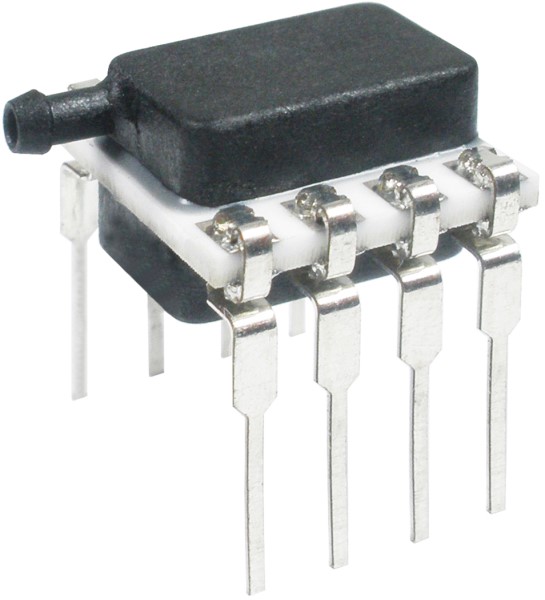

Honeywell HSCDRNN001PG2A3 High Accuracy Pressure Sensor
The Honeywell TruStability HSC Series is a piezoresistive silicon pressure sensor designed for high accuracy and stability. It features a ratiometric analog or digital output, fully calibrated and temperature compensated using an on-board ASIC. This sensor is suitable for measuring absolute, gage, or differential pressures in non-corrosive environments and is available in various configurations and pressure ranges, making it ideal for diverse industrial applications. Its small size and low power consumption further enhance its versatility.
Honeywell HSCDRNN001PG2A3 High Accuracy Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
- Accuracy: ±0.25 %FSS BFSL
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Stability: Minimizes system calibration needs and improves system performance
- TEB: Total Error Band (TEB) provides the sensor’s true performance over a compensated range
- Working Pressure Ranges: Allows ultra-low pressure sensors to be used continuously well above the calibrated pressure range
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 requirementS
- Media Compatibility: Compatible with non-corrosive, non-ionic fluids (available for pressure ranges above 40 mbar | 4 kPa | 20 inH2O)
Buy the HSCDRNN001PG2A3 HONEYWELL High Accuracy Pressure Sensor | myMectronic
Purchase the Honeywell HSCDRNN001PG2A3 pressure sensor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCDRNN001PG2A3?
You can click on the BUY or RFQ button to purchase HSCDRNN001PG2A3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCDRNN001PG2A3?
You can download the HSCDRNN001PG2A3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCDRNN001PG2A3?
Honeywell
