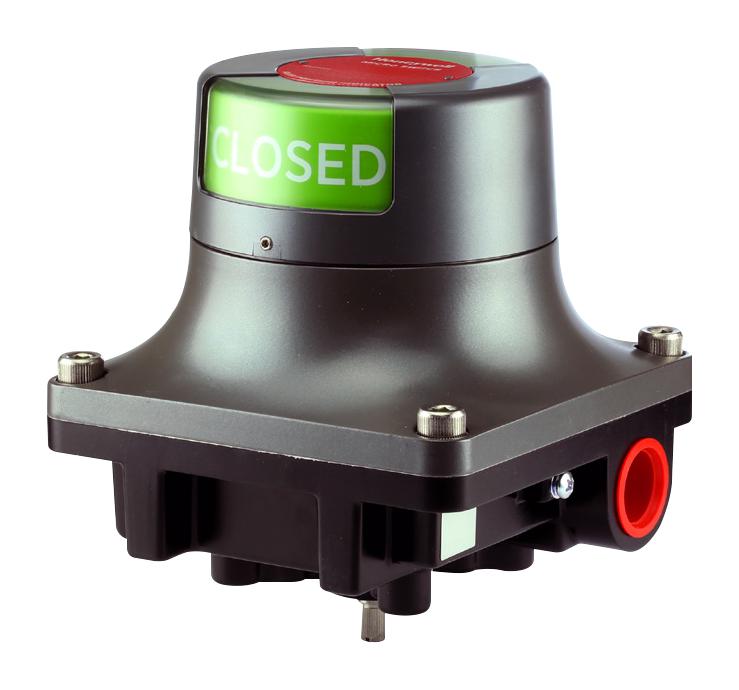

Honeywell VPX1E4ABBY1A2B Valve Position Indicator
The Honeywell VPX Series Valve Position Indicator is designed for reliable outdoor use in hazardous environments. With weather-sealed enclosures meeting NEMA 4, 4X, 6, and 13 standards, it can withstand rain, wind, snow, ice, and dust. Certified for ATEX, IEC Ex, CE, and cULus, including Intrinsically Safe options, it features durable die-cast aluminum housing and multiple color and angle indicators for visibility. Suitable for demanding applications like oil and gas facilities, refineries, chemical plants, and wastewater treatment, it offers high cycle endurance, SIL 3 safety verification, and extensive explosion-proof ratings.
Honeywell VPX1E4ABBY1A2B Valve Position Indicator Specifications:
- Housing material: Aluminum with protective paint finish
- Housing size: 152.3 mm H x 140 mm W x 140 mm D [6.0 in H x 5.5 in Wx 5.5 in D]
- Operating temperature: -40 °C to 80 °C [-40 °F to 176 °F]
- Sealing: NEMA 4, 4X, 6, 13; IP66 (IEC 60079-0), IP67 (IEC 60529)
- Agency approvals: cULus, ATEX, IEC Ex, CE (coming soon: NEPSI, KOSHA)
- Explosion proof designations: North America Division 1, Class I, Groups B-D; E-G; ATEX I 2G, 12 D; Ex db IIC T6 Gb; Ex tb IIIC T85°C Db
- Electrical ratings with snap-action switches: 15 A 150 Vac (UL), 16 A 250 Vac (CE)
- Intrinsically Safe version: Ex ia IIC T4 Ga; Ex ia IIIC T135°C Da, Ta -40 °C to 80°C
- Mechanical endurance: 500,000 cycles
- Safety Integrity Level: SIL 3
- Weight: approximately 2.4 kg [5.2 lb]
- Mounting options: Multiple angles, visible from all directions
Buy the Honeywell Series VPX Valve Position Indicator: VPX1E4ABBY1A2B
Order the Honeywell VPX Series Valve Position Indicator online today for robust performance in hazardous outdoor environments. Certified for explosion-proof applications, it features weather-sealed aluminum housing, SIL 3 safety level, and multiple color indicators for visibility. Designed for high cycle counts and extreme temperatures, this indicator ensures reliable operation in oil and gas, refineries, chemical plants, and wastewater treatment facilities. Enhance your safety and operational efficiency by purchasing this durable, certified valve position indicator online today.
Get Honeywell VPX1E4ABBY1A2B today—built for hazardous environments with weather-resistant aluminum housing and high longevity.
