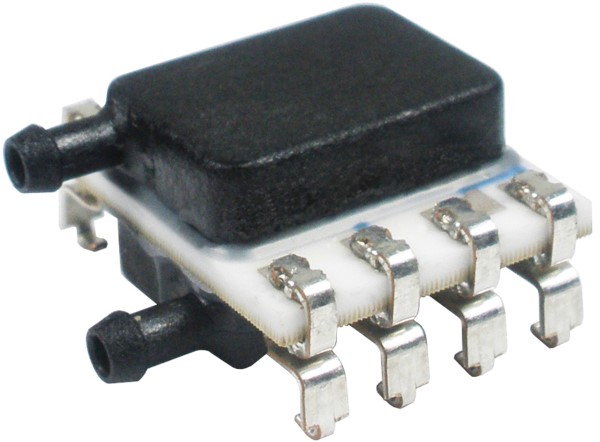

Honeywell HSCMRRN001ND2A5 TruStability Pressure Sensor
The Honeywell TruStability HSC Series is a piezoresistive silicon pressure sensor designed for high accuracy and stability in a compact form factor. It utilizes an on-board Application Specific Integrated Circuit (ASIC) for calibration and temperature compensation, ensuring reliable performance across a wide range of pressures and temperatures. Suitable for applications involving non-corrosive gases and liquids, the HSC Series offers flexibility in integration and reduces the need for system calibration, improving overall system efficiency and accuracy. Its low power consumption and optional diagnostic functions further enhance its suitability for various industrial and commercial applications.
Honeywell HSCMRRN001ND2A5 TruStability Pressure Sensor Specifications:
- Accuracy: ±0.25 %FSS BFSL
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output
- Power Consumption: Less than 10 mW (typical)
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Stability: Maintains stability after long-term use and thermal extremes
- Burst Pressure: High burst pressures promote system reliability
- Working Pressure Ranges: Allows ultra-low pressure sensors to be used continuously well above the calibrated pressure range
- Moisture Sensitivity Level: Meets IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1 requirementS
