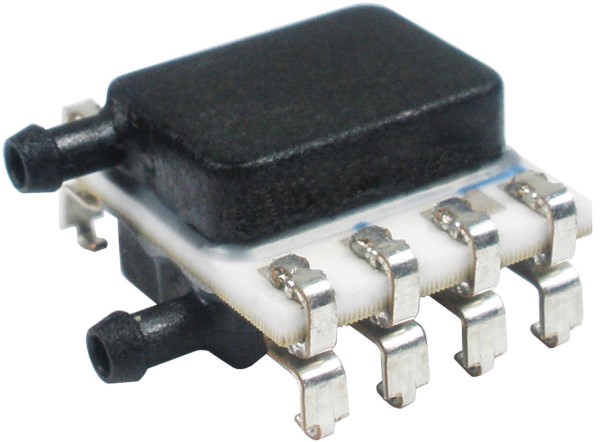

Honeywell HSCMRRN001PDSA3 High Accuracy Compensated Pressure Sensor
Honeywell’s TruStability HSCMRRN001PDSA3 pressure sensor is a high-accuracy, compensated, and amplified device suitable for a wide range of industrial applications. It utilizes piezoresistive silicon technology to provide a digital or analog output proportional to the applied pressure. The sensor is designed to measure absolute, gage, or differential pressures, making it versatile for various monitoring and control systems. Proper handling and media compatibility are crucial for optimal performance and longevity.
Honeywell HSCMRRN001PDSA3 High Accuracy Compensated Pressure Sensor Specifications:
- Supply voltage (Vsupply): -3.0 to 6.0 Vdc
- Storage temperature: -40 to 85 °C
- Soldering time and temperature: 4 s max. at 250 °C (SIP, DIP)
- Peak reflow temperature: 15 s max. at 250 °C (SMT)
- Humidity (gases only): 0% to 95% RH, non-condensing
- Humidity (liquid media): 100% condensing or direct liquid media on Port 1
- Vibration: MIL-STD-202G Method 204D, Condition B
- Shock: MIL-STD-202G, Method 213B, Condition C
- Life: 1 million pressure cycles minimum
- Moisture Sensitivity Level: 1
- Operating temperature range (HSC): -20 to 85 °C
- Operating temperature range (SSC): -40 to 85 °C
- Compensated temperature range (HSC): 0 to 50 °C
- Compensated temperature range (SSC): -20 to 85 °C
- Startup time: 5 ms
- Response time: 1 ms
- Accuracy: ±0.25 %FSS BFSL
- Output resolution: 0.03 %FSS
- Orientation sensitivity: ±0.1 %FSS (pressure ranges <40 mbar)
Buy the HSCMRRN001PDSA3 HONEYWELL High Accuracy Compensated Pressure Sensor | myMectronic
Purchase the Honeywell HSCMRRN001PDSA3 pressure sensor securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCMRRN001PDSA3?
You can click on the BUY or RFQ button to purchase HSCMRRN001PDSA3 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCMRRN001PDSA3?
You can download the HSCMRRN001PDSA3 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCMRRN001PDSA3?
Honeywell
