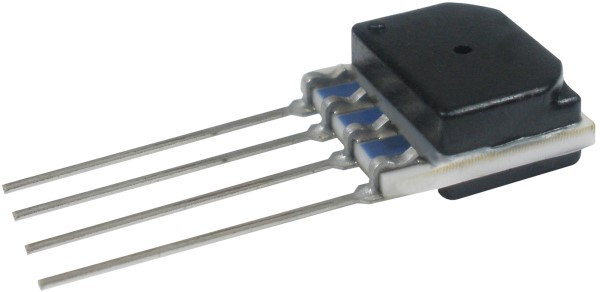

Honeywell HSCSNNN005NDAA5 Board Mount Pressure Sensor
The Honeywell TruStability HSC Series is a high-accuracy, compensated, and amplified piezoresistive silicon pressure sensor. It provides ratiometric analog or digital output, suitable for measuring absolute, gage, or differential pressures in various industrial applications. The sensor is fully calibrated and temperature compensated, minimizing system design requirements and improving accuracy. Its small size, low power consumption, and wide pressure range make it ideal for integration into diverse devices, from HVAC systems to medical equipment.
Honeywell HSCSNNN005NDAA5 Board Mount Pressure Sensor Specifications:
- Pressure Range: ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
- Output: Ratiometric analog; I[2] C- or SPI-compatible 14-bit digital output (min. 12-bit sensor resolution)
- Temperature Range: 0 °C to 50 °C [32 °F to 122 °F]
- Accuracy: ±0.25 %FSS BFSL
- Power Supply: 3.3 Vdc or 5.0 Vdc
- Package Size: 10 mm x 10 mm [0.39 in x 0.39 in]
- Media Compatibility: Non-corrosive, non-ionic gases and liquids (for pressure ranges above 40 mbar | 4 kPa | 20 inH2O)
- Moisture Sensitivity Level: IPC/JEDEC J-STD-020D.1 MSL 1
Buy the HSCSNNN005NDAA5 HONEYWELL Board Mount Pressure Sensor | myMectronic
Purchase the Honeywell HSCSNNN005NDAA5 Board Mount Pressure Sensor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell HSCSNNN005NDAA5?
You can click on the BUY or RFQ button to purchase HSCSNNN005NDAA5 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part HSCSNNN005NDAA5?
You can download the HSCSNNN005NDAA5 datasheet or visit the Honeywell website for support.
Who is the manufacturer of HSCSNNN005NDAA5?
Honeywell
