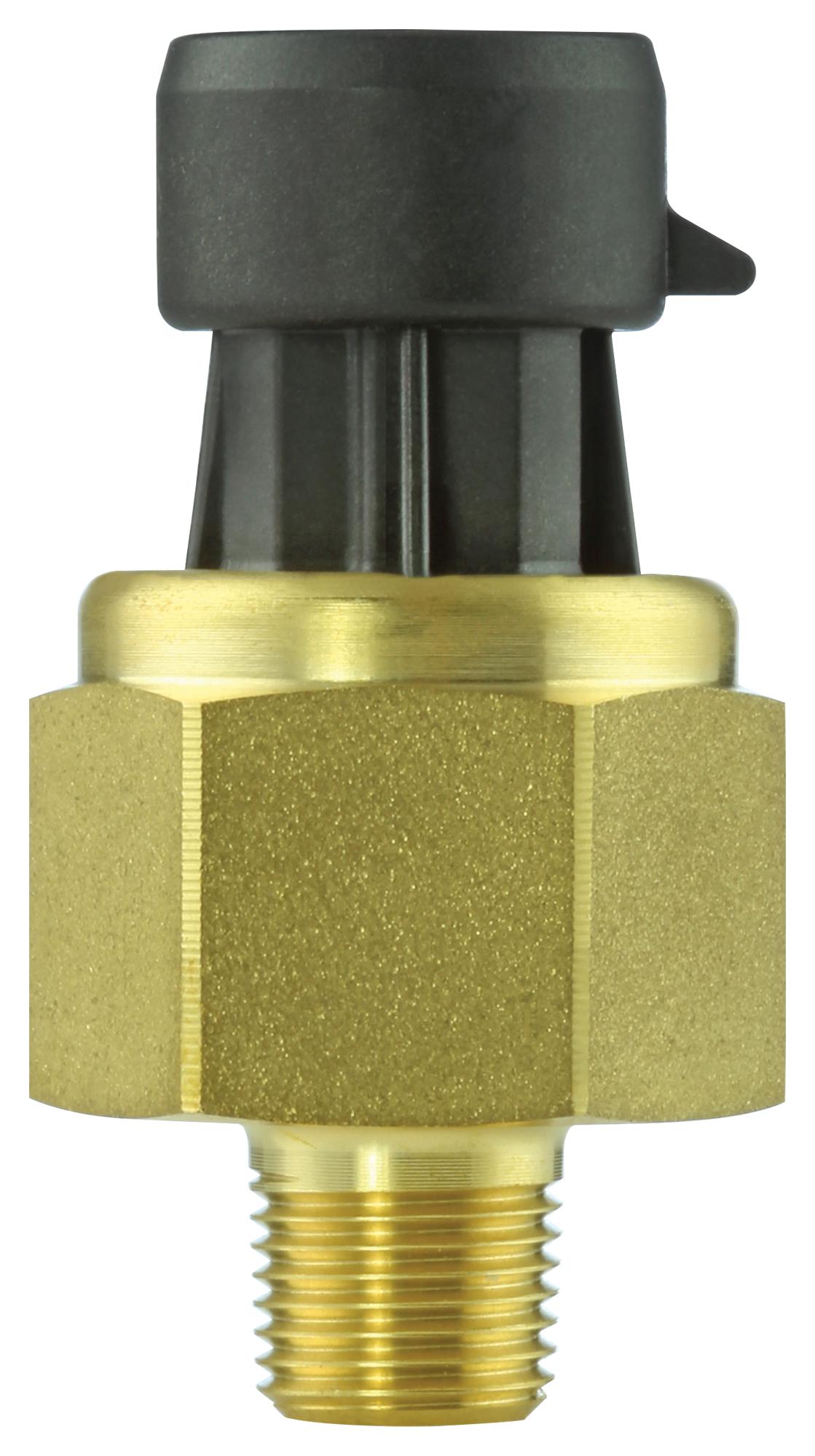

Honeywell PX3AN2BS250PAAAX Heavy Duty Pressure Transducer
Honeywell's PX3 Series Heavy Duty Pressure Transducers utilize piezoresistive sensing technology combined with an Application Specific Integrated Circuit (ASIC). These sensors are fully calibrated and temperature compensated for operation from -40°C to 125°C, providing accurate and reliable measurement performance across a wide temperature range. They feature a total error band of ±1.0% full scale span, high insulation resistance, excellent dielectric strength, and robust electromagnetic compatibility (EMC). Designed to withstand harsh environmental conditions, they offer high external freeze/thaw resistance, reduced power consumption, and versatile configurations that allow for flexible application use without the need for initial engineering or tooling costs.
Honeywell PX3AN2BS250PAAAX Heavy Duty Pressure Transducer Specifications:
- Pressure range: 1 bar to 50 bar | 15 psi to 700 psi (absolute and sealed gage)
- Temperature operation: -40°C to 125°C (-40°F to 257°F)
- Total Error Band: ±1.0%FSS from -20°C to 85°C
- Output: Ratiometric, 0.5 Vdc to 4.5 Vdc or 0.33 Vdc to 2.97 Vdc
- Insulation resistance: >100 MOhm at 1500 Vdc
- Dielectric strength: AC1500V for 1 min or AC1800V for 1 sec
- Response time: <2 ms
- Supply voltage: 5 Vdc ±0.25 V, 3.3 Vdc ±0.25 V, overvoltage protection up to 16 Vdc
- Dimensions: Pressure port types include G1/4, 7/16-20 UNF, M12x1.5, NPT, T1 tube
- Materials: Brass or copper, internal alumina, glass, silicon sensing element
- Ingress protection: IP67 (Metri-Pack 150), IP69K (cable harness)
- Shock: 100 G, Vibration: 20 G sweep (threaded ports)
- Electrical connections: Metri-Pack 150 or cable harness, RoHS, REACH, CE compliant
Buy the Honeywell Series PX3 Pressure Transducer: 1 to 50 Bar PX3AN2BS250PAAAX
Purchase Honeywell's PX3 Series Heavy Duty Pressure Transducer online today to ensure robust performance, accurate measurements, and durable operation under harsh environmental conditions. Designed for industrial refrigerant, hydraulic, and HVAC systems, this transducer provides precise pressure monitoring with advanced sensing technology and comprehensive calibration. Its wide temperature compensation, high immunity to electromagnetic interference, and external freeze/thaw resistance make it ideal for demanding applications. Order now to benefit from fast delivery, technical support, and the peace of mind that comes with Honeywell quality.
Buy Honeywell PX3AN2BS250PAAAX now and experience unmatched reliability and performance in demanding industrial applications.
Frequently Asked Questions
Where can I buy Honeywell PX3AN2BS250PAAAX?
You can click on the BUY or RFQ button to purchase PX3AN2BS250PAAAX from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part PX3AN2BS250PAAAX?
You can download the PX3AN2BS250PAAAX datasheet or visit the Honeywell website for support.
Who is the manufacturer of PX3AN2BS250PAAAX?
Honeywell
