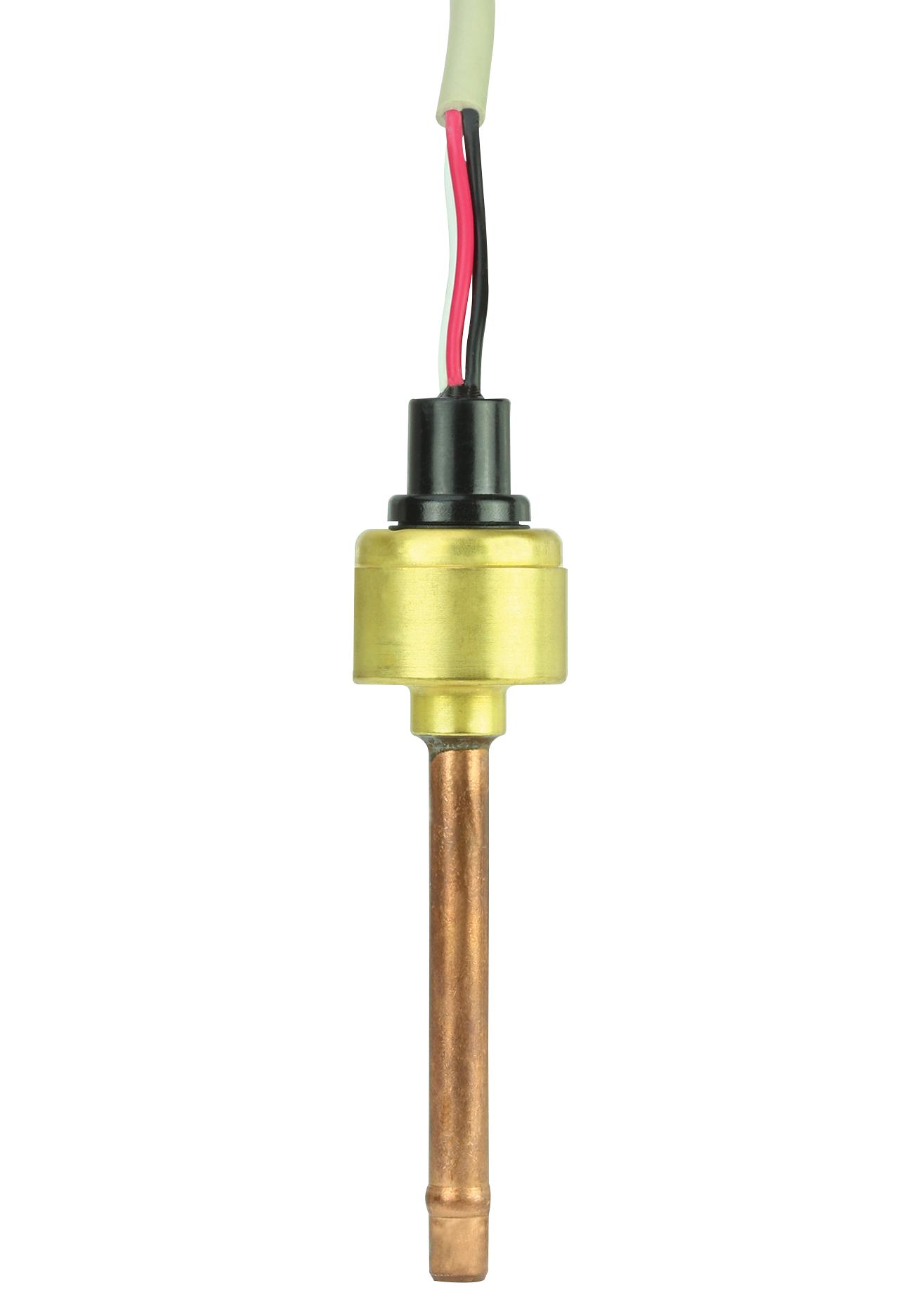

Honeywell PX3ET1BH667PSAAX heavy duty pressure transducer
Honeywell’s PX3 Series Heavy Duty Pressure Transducers utilize piezoresistive sensing technology with ASIC signal conditioning, housed in brass and featuring reliable electrical connections. Calibrated and temperature compensated from -40°C to 125°C, they offer a total error band of +1.0% FSS between -20°C and 85°C, ensuring accurate and consistent measurement performance. Designed for rugged industrial applications, these transducers support various pressure ranges up to 50 bar or 700 psi, with options for absolute or sealed gage references. They feature high EMC performance, external freeze/thaw resistance, and media compatibility with HFC refrigerants and hydraulic fluids, suitable for HVAC, refrigeration, and hydraulic systems.
Honeywell PX3ET1BH667PSAAX heavy duty pressure transducer Specifications:
- Pressure range: 1 bar to 50 bar | 15 psi to 700 psi (absolute and sealed gage)
- Temperature compensation: from -40 °C to 125 °C [-40 °F to 257 °F]
- Total Error Band: +1.0 %FSS from -20 °C to 85 °C [-4 °F to 185 °F]
- Response time: <2 ms
- Electrical connection: Metri-Pack 150 or cable harness options
- Output: Ratiometric 0.5 Vdc to 4.5 Vdc or 0.33 Vdc to 2.97 Vdc
- Ingress protection: IP67 (Metri-Pack 150), IP69K (cable harness)
- Insulation resistance: >100 MOhm, 1500 Vdc
- Dielectric strength: AC1500V, 1 min or AC1800V, 1 sec
- Operating temp: -40 °C to 125 °C [-40 °F to 257 °F]
- Storage temp: -40 °C to 125 °C [-40 °F to 257 °F]
- Shock: 100 G per MIL-STD-202G, Method 213B
- Vibration: 20 G sweep from 10 Hz to 2000 Hz
- Material: Brass C36000, copper UNS C12200, alumina, glass, silicon
- Media compatibility: HFC refrigerants, hydraulic oils, lubricants, water, air
- Electrical connector: Metri-Pack 150, range of port types including 1/4-18 NPT, G1/4, M12x1.5, tube, and Schrader
- Seal materials: Nitrile, silicone or HNBR for broad media compatibility
Buy the Buy Honeywell PX3 Series Pressure Transducer Part Number PX3ET1BH667PSAAX Online
Purchase the Honeywell PX3 Series Heavy Duty Pressure Transducer online today for robust, high-precision pressure measurement in industrial HVAC, refrigeration, and hydraulic systems. Designed to withstand harsh environments, these transducers offer fast response times, broad pressure ranges, and high durability with IP67/IP69K ratings. They are calibration and temperature compensated for accurate readings, with multiple port options for flexible installation. Whether monitoring refrigerants or hydraulic oil, buying online ensures quick delivery and access to comprehensive technical support for your industrial needs.
Order your Honeywell PX3 ET1BH667PSAAX heavy duty pressure transducer today and enhance your industrial pressure monitoring with reliable, rugged performance.
