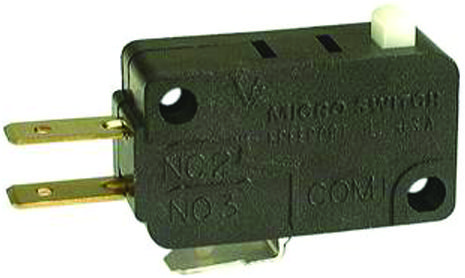

Honeywell V72B17E9 Miniature Safety Switch
The V7-2B17E9 is a single-pole double-throw miniature switch with a pin plunger actuator and quick connect terminals, ideal for both simple and precise ON/OFF operations. Featuring a PCT polyester thermoplastic housing and silver-plated contacts, it ensures high reliability in critical applications such as pressure sensing, temperature monitoring, and manual controls. Rated for up to 100,000 load cycles and 10 million mechanical cycles, it operates in temperatures from -40°C to 82°C. Widely used in electronic devices, HVAC, industrial controls, and medical equipment, this switch offers durability and versatility for demanding environments.
Honeywell V72B17E9 Miniature Safety Switch Specifications:
- Circuitry: SPDT (single-pole double-throw)
- Operating Force: 0.25 N to 3.9 N [15 g to 397 g]
- Electrical Ratings: Up to 5 A at 125 Vac, 250 Vac, 277 Vac
- Housing Material: High strength thermoplastic, PCT polyester
- Contacts: Silver-plated contacts with gold alloy options
- Operating Temperature: -40°C to 82°C [-40°F to 180°F]
- Mechanical Life: Up to 10 million cycles
- Terminal Type: Quick connect 4.75 mm x 0.51 mm (0.187 in x 0.02 in)
- Actuators: Pin plunger, integral lever, auxiliary lever options
- Agency Certifications: CSA, ENEC, UL; RoHS compliant
- Physical Dimensions: Typical terminal width 4.75 mm, housing made of durable thermoplastic
- Application: Used in consumer electronics, HVAC, industrial controls, medical instruments
Buy the Buy Honeywell V7 Series Part Number V72B17E9 Online
Order the Honeywell V7 Series V72B17E9 switch online today to ensure reliable performance in industrial automation, HVAC, medical, and consumer electronics. Its compact design, durable thermoplastic housing, and silver-plated contacts provide long-lasting, high-quality operation. Suitable for critical applications requiring up to 10 million cycles, this switch features quick connect terminals for easy installation and a wide temperature range from -40°C to 82°C. Enhance your equipment’s safety, precision, and efficiency with this versatile switch available now online.
Get Honeywell V7 Series V72B17E9 today—designed for high reliability and precise ON/OFF switching in demanding applications.
Frequently Asked Questions
Where can I buy Honeywell V72B17E9?
You can click on the BUY or RFQ button to purchase V72B17E9 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part V72B17E9?
You can download the V72B17E9 datasheet or visit the Honeywell website for support.
Who is the manufacturer of V72B17E9?
Honeywell
