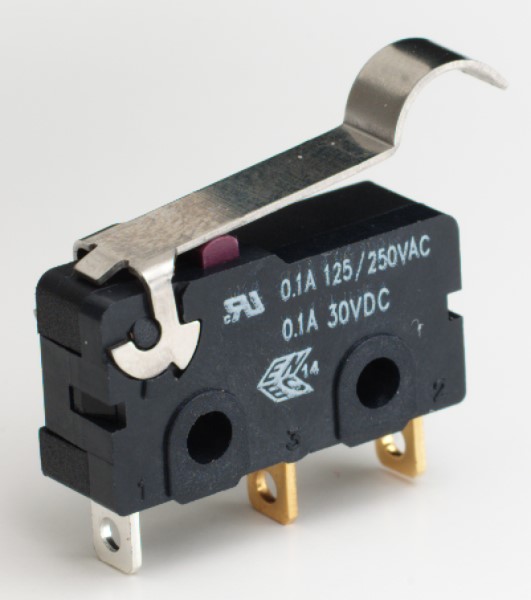

Honeywell ZX10E50C01 Subminiature Basic Switch
Honeywell’s MICRO SWITCH™ ZX Series is a subminiature snap-action switch, part of the Z series family. Despite its small size, it's capable of controlling electrical loads ranging from logic-level circuits to limited power-duty switching. Available with solder or PCB terminals, the ZX Series adapts to diverse electrical connectivity needs. Its stainless steel lever options and compact package make it suitable for various applications, and it's certified to UL, cUL, ENEC, and CQC standards for global use. This switch provides a cost-effective solution for applications requiring a compact and versatile switching mechanism.
Honeywell ZX10E50C01 Subminiature Basic Switch Specifications:
- Circuitry: SPDT
- Operating Force: 90 g or 150 g @ plunger
- Termination: PCB, solder
- Sealing: IP40
- Actuators: Pin plunger, levers
- Agency Certification: UL, cUL, ENEC, CQC, RoHS compliant
- Operating Temperature: -40 °C to 85 °C
- Mechanical Endurance: 3,000,000 cycles min.
- Electrical Endurance: 10,000 cycles min.
- Switch Resistance: 100 mΩ max.
- Insulation Resistance: 100 MΩ min.
- Dielectric Strength: 1500 VRMS
- Contact Material: Gold-plated silver
- Housing Material: Polyamide (nylon)
Buy the ZX10E50C01 HONEYWELL Subminiature Basic Switch | myMectronic
Purchase the Honeywell ZX10E50C01 securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Honeywell ZX10E50C01?
You can click on the BUY or RFQ button to purchase ZX10E50C01 from an authorized Honeywell distributor.
How do I troubleshoot issues or seek technical support for part ZX10E50C01?
You can download the ZX10E50C01 datasheet or visit the Honeywell website for support.
Who is the manufacturer of ZX10E50C01?
Honeywell
