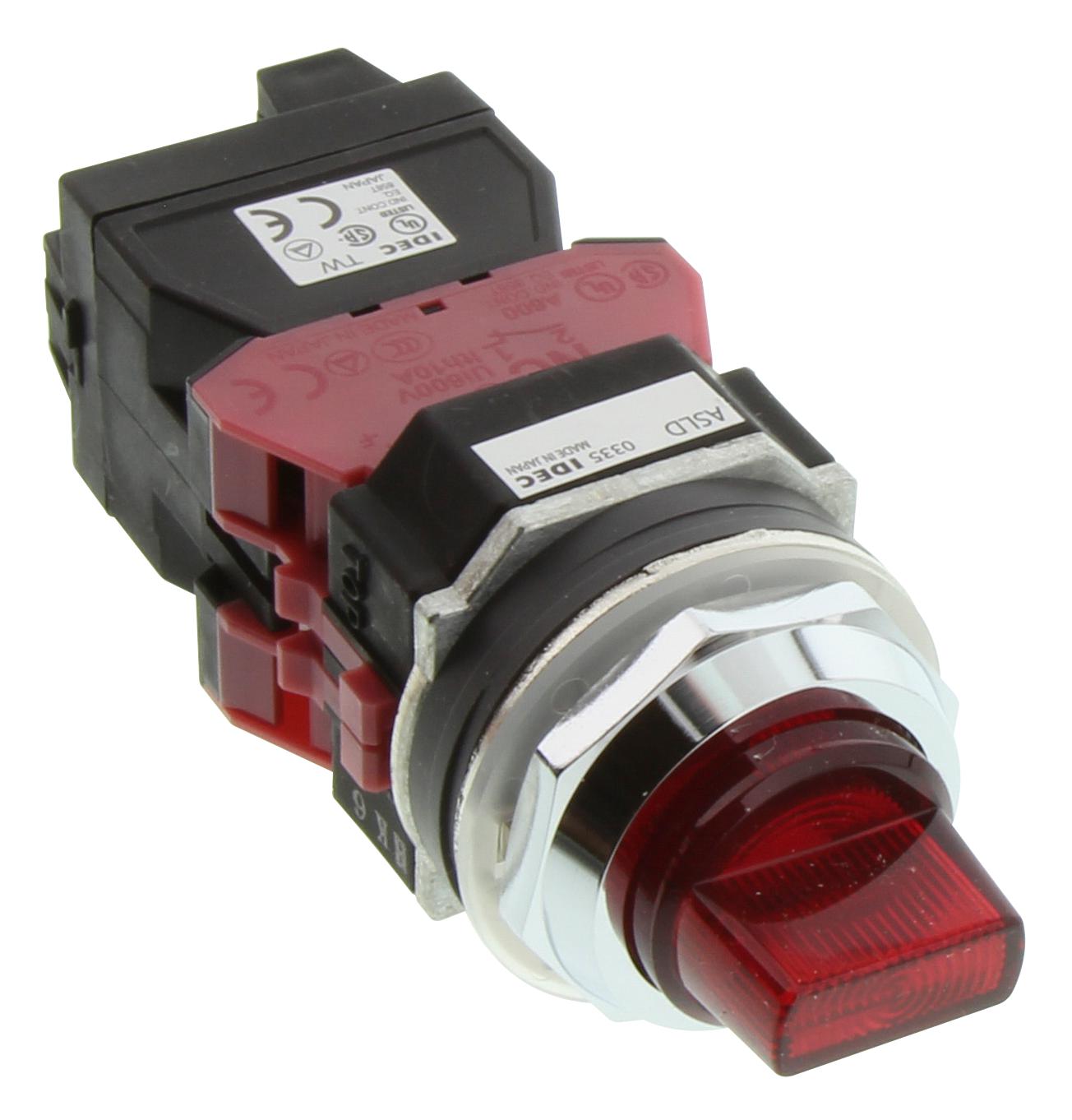

IDEC Corporation ASLD3313602DNUR Full-Size NEMA Pushbuttons
The TWND Series is a robust line of industrial switches, including full-size NEMA pushbuttons, selector switches, stop switches, and pilot lights. Designed for durability, these switches feature rugged construction with chrome-plated zinc rings, die cast zinc, and self-cleaning contacts. Available in various configurations including illuminated and non-illuminated options, they conform to standards like EN60947-5-1 and IEC60068-2-6. Suitable for control panels in harsh environments, they provide reliable operation with low contact resistance, high dielectric strength, and IP65 rated watertight/oiltight panel sealing. Ideal for automation and machinery applications.
IDEC Corporation ASLD3313602DNUR Full-Size NEMA Pushbuttons Specifications:
- Conforming to Standards EN60947-5-1, UL E08, CSA C22-2 No.14
- Vibration Resistance 5 to 55Hz, 98m/sec² (10g) conforming to IEC60068-2-6
- Shock Resistance 980m/sec² (100g) conforming to IEC80068-2-27
- Electrical Shock Protection Class 2 conforming to IEC60664-1
- IP65 Watertight/oiltight panel sealing conforming to IEC60529 and NEMA ICS6-110
- Dielectric Strength 25KV AC 1 minute
- Rated Thermal Current 10 Amp
- Contact Resistance 50mΩ or less initially
- Rated insulation Voltage 600 V, Impulse Withstanding Voltage 2.5KV AC
- Operating Temperature -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated); Storage -40°C to +80°C
- Contact Operation: Slow make, double break wiping contacts
- Number of Operations: 5,000,000 cycles (momentary pushbuttons), 500,000 (others)
- Pollution Degree 3, Pollution Level IEC60947-1
- Polarity and voltage ratings according to models: 120V, 240V, 480V AC/DC, 6V, 12V, 24V, 120V, 240V, 480V
- Physical Dimensions vary by button size: Range from 9mm flush to 40mm mushroom, jumbo mushroom at 65mm
- Material used includes zinc, chrome-plated zinc, and durable plastics, with optional LED illumination with current-limiting resistors and protection diodes
Buy the IDEC ASLD3313602DNUR – Reliable Full-Size NEMA Pushbuttons for Industrial Applications
Enhance your control panel with IDEC's full-size NEMA pushbuttons, selector switches, and pilot lights. Crafted for harsh industrial environments, these switches offer unmatched durability, precision engineering, and easy installation. Made to withstand vibrations, shocks, and exposure to oils and water, they ensure safe and reliable operation. Available in various configurations including illuminated and non-illuminated options, they meet rigorous safety standards. Perfect for automation, manufacturing, and machinery control, these high-quality switches will improve operational efficiency and reliability in any industrial setting.
Order your IDEC Series ASLD3313602DNUR full-size NEMA pushbuttons today and give your projects the dependable quality they deserve.
