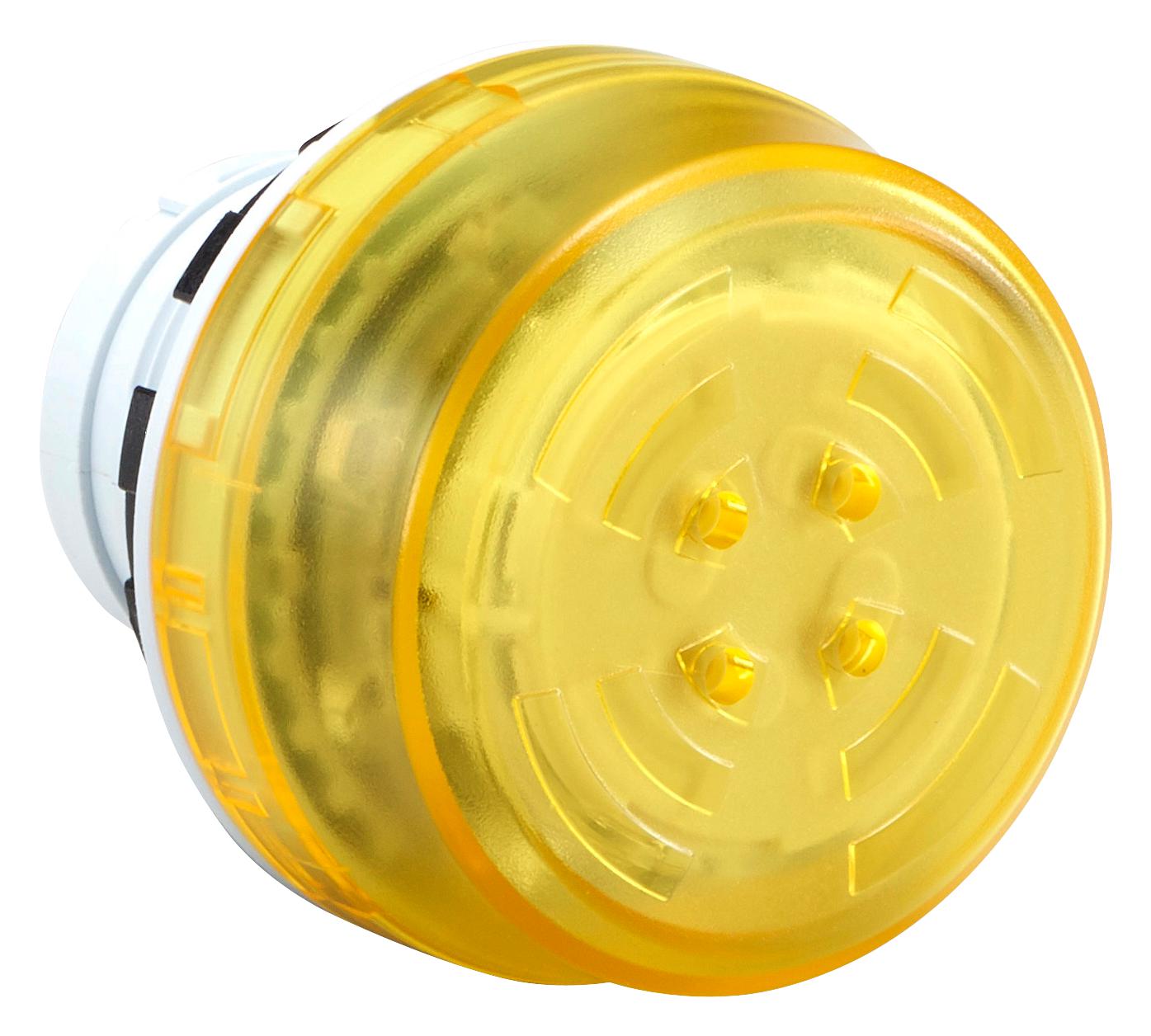

IDEC Corporation HW1ZP1F2PQ4Y Illuminated Buzzer
The HW series illuminated buzzer combines a buzzer and pilot light in a compact, IP65-rated waterproof housing suitable for semi-outdoor and safety-critical applications. Operating at 12-24V DC, it features a yellow illumination, intermittent sound, and flashing light cycle with a sound pressure of up to 84dB. Its sturdy construction meets UL508 and EN60947-5-1 standards, making it ideal for fireman's elevators, fire alarm systems, production lines, and AGV control stations. Easy wiring and optional terminal rubber boot enhance durability and installation convenience.
IDEC Corporation HW1ZP1F2PQ4Y Illuminated Buzzer Specifications:
- Degree of Protection Panel front: IP65, Terminal: IP40, IP54 with rubber boot
- Rated Voltage: 12 to 24V DC, 10.8 to 26.4V DC
- Rated Current: 8mA (12V), 18mA (24V), Max. 100mA
- Sound Pressure: 84dB at 0.1m, 64dB at 1m
- Sound Frequency: 2,200 to 2,450Hz, Intermittent and flashing cycle at 105 cycles/minute
- Operating Temp: -20°C to +50°C, Humidity: 20% to 85% RH
- Storage Temp: -30°C to +80°C
- Shock Resistance: Operation 100 m/s², Damage 1,000 m/s²
- Vibration Resistance: 5-55Hz, amplitude 0.5mm
- Insulation Resistance: 100MΩ at 500V DC
- Dielectric Strength: 1000V AC for 1 minute
- Dimensions: Suitable panel thickness 0.8-6mm, rubber gasket included
- Standards: UL508, EN60947-5-1
Buy the Buy IPD Illuminated Buzzer Part Number HW1ZP1F2PQ4Y Online
Purchase the IPD HW series illuminated buzzer online today to enhance safety and operational alert systems. Its robust IP65-rated waterproof housing, yellow LED illumination, and audible alert function make it perfect for semi-outdoor, fire safety, and industrial applications. Easy wiring with push-in terminals, optional rubber boot for improved IP54 protection, and compliance with UL508 and EN60947-5-1 standards ensure durability and safety. This versatile product is ideal for control stations, fire alarms, production lines, and AGV systems, offering reliable performance in challenging environments.
Buy IPD HW1ZP1F2PQ4Y illuminated buzzer now and experience reliable signaling with waterproof IP65 quality and easy installation.
Frequently Asked Questions
Where can I buy IDEC Corporation HW1ZP1F2PQ4Y?
You can click on the BUY or RFQ button to purchase HW1ZP1F2PQ4Y from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part HW1ZP1F2PQ4Y?
You can download the HW1ZP1F2PQ4Y datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of HW1ZP1F2PQ4Y?
IDEC Corporation
