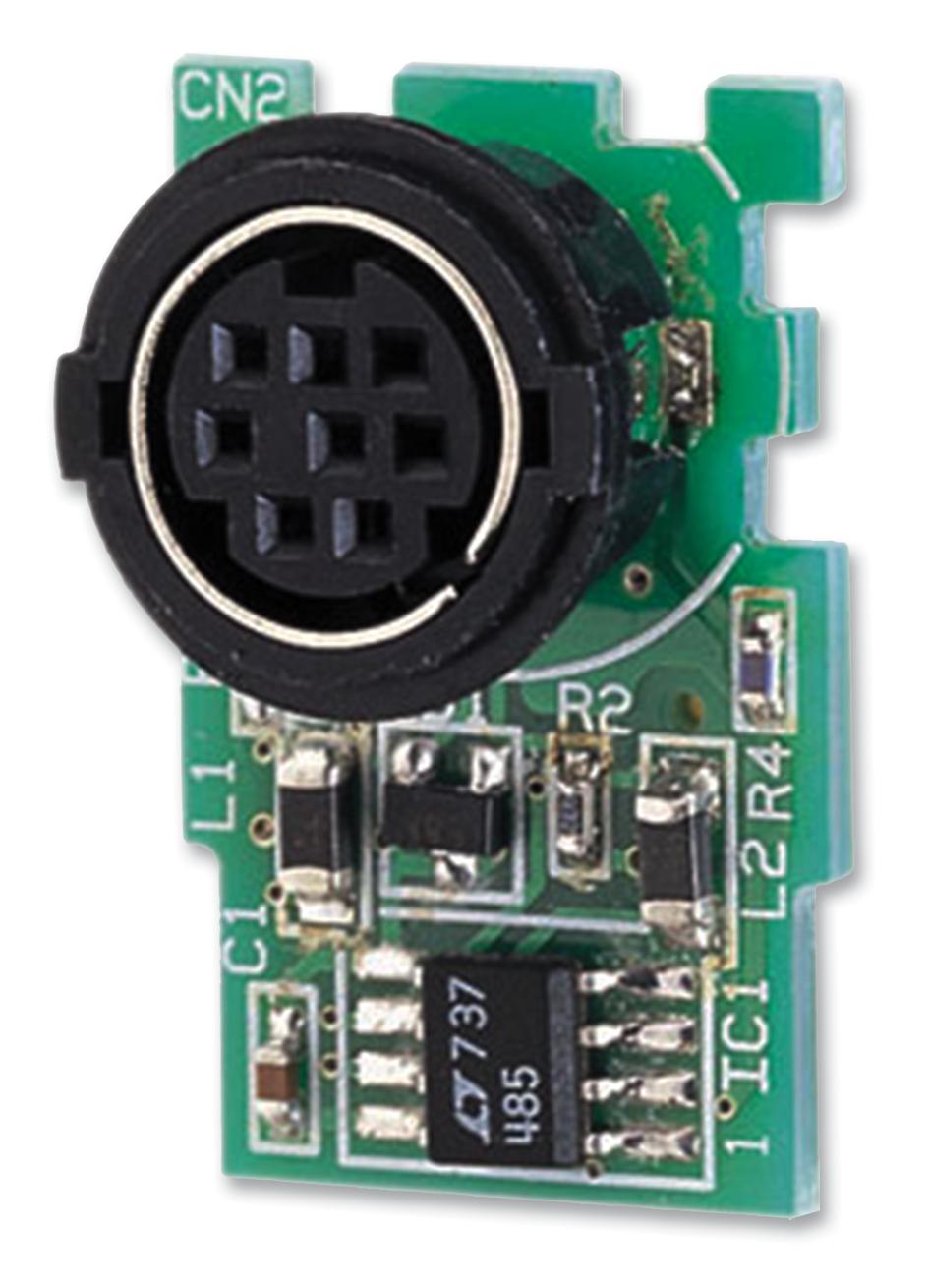

IDEC Corporation FC4APC1 Communication Interface Module
The FC4APC1 communication interface module supports multiple protocols including RS232C and RS485, facilitating seamless connection between PLC and peripheral devices. Designed for easy integration with MicroSmart Pentra and all-in-one CPU modules, it offers reliable data transmission over twisted-pair cables up to 200 meters. Compatible with various models, it ensures high-speed communication, ideal for automation systems and industrial control networks. Its rugged construction and compliance with industry standards guarantee durability in demanding environments, supporting efficient data exchange for automation and control applications.
IDEC Corporation FC4APC1 Communication Interface Module Specifications:
- Model: FC4A-PC1
- Standards: EIA RS232C, EIA RS485
- Max Baud Rate: 115,200 bps
- Ports: 1 serial port
- Isolation: Not isolated from internal circuit
- Cable length: Up to 200 meters with twisted-pair shielded cable
- Cable type: 24 AWG, shielded multi-core cable (NIHON Electric)
- Connector: Phoenix Contact terminal block FC4A-PMT10P
- Insertion/Removal Durability: 100 times minimum
- Operating temperature: 0 to 55°C
- Relative humidity: 10 to 95% (no condensation)
- Electrical characteristics: Dielectric strength 2,000V AC/min, Insulation resistance 100 MO/km
- Power supply: 5V or 24V DC (external)
- External power consumption: approximate 0.3W
- Dimensions: approximately 70 mm x 23.5 mm
Buy the Buy IDEC FC4APC1 Communication Interface Module RS232C/RS485 Online
Enhance your automation network with the IDEC FC4APC1 communication interface module. Supporting RS232C and RS485 protocols, it offers high-speed data transfer over twisted-pair cables up to 200 meters. Its rugged design ensures durability in industrial environments, enabling seamless integration with MicroSmart Pentra and all-in-one CPU modules. Easy to install, it provides reliable serial communication essential for efficient automation processes. Purchase online now for dependable connectivity and improved system performance today.
Order your IDEC FC4APC1 communication interface module today and ensure robust, reliable serial communication for your industrial automation systems.
Frequently Asked Questions
Where can I buy IDEC Corporation FC4APC1?
You can click on the BUY or RFQ button to purchase FC4APC1 from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part FC4APC1?
You can download the FC4APC1 datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of FC4APC1?
IDEC Corporation
