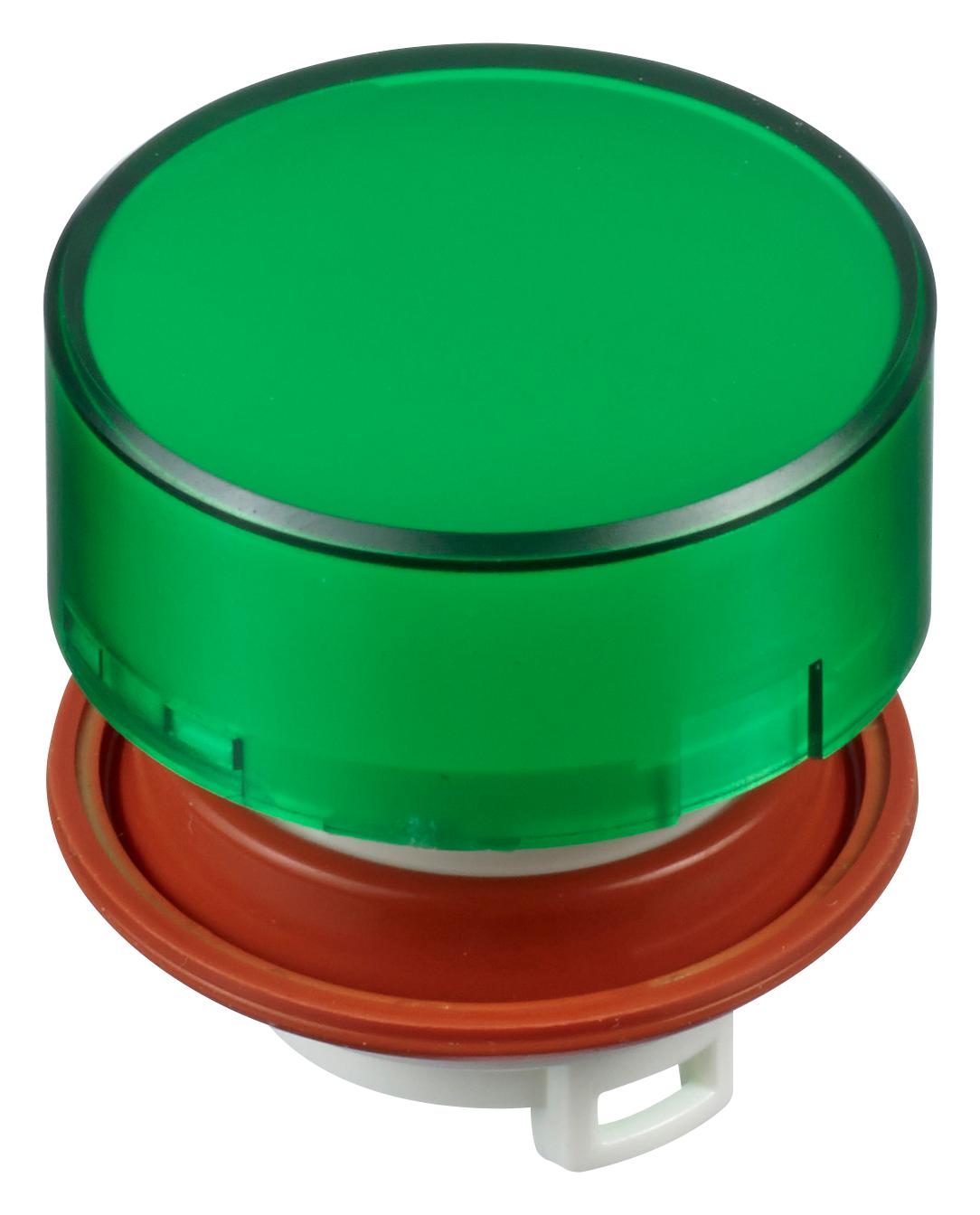

IDEC Corporation HW1AL2GL Pushbutton Switch
The HW series is a range of industrial pushbutton switches, pilot lights, and emergency stop components. Designed for global compliance, these devices feature lockable levers, finger-safe contacts, and are available with incandescent or LED illumination. They meet international standards including UL, CSA, TUV, and IEC requirements, suitable for use in various industrial automation applications such as power controls, start-stop functions, and safety interlocks. These rugged switches ensure reliable operation in high-vibration environments, with easy installation and maintenance, making them ideal for diverse manufacturing and process control systems.
IDEC Corporation HW1AL2GL Pushbutton Switch Specifications:
- Flammability: UL 94V-0
- Current Rating: 10A (AC-15), 6A (DC-13)
- Rated Insulation Voltage: 600V
- Operating Temperature: -25°C to +50°C
- Vibration Resistance: IEC 60068-2-6
- Shock Resistance: IEC 60068-2-27
- Electrical Reliability: MTBF over 10 million cycles
- Contact Material: Silver, gold-plated optional
- Protection Degree: IP20, IP65 with silicon cover
- Switching Capacity: 1/4 HP at 120V, 1 HP at 240V
- Mounting: Panel cutout 22mm, snap-in or threaded
- Standards: UL, CSA, TUV, IEC, SEMI S2
- Approval Numbers: UL Listed, CSA Certified, IEC compliant
- Certifications: CE, UL, CSA, TUV, CCC
- Poles & Modes: SPDT, DPDT, maintained, spring return, with lock options
- Lighting: Incandescent or LED, 6V, 12V, 24V, 120V, 240V rated
- Electrical Clearance: 4 mm (contacts), 2 mm (contact gaps)
Buy the Buy IDEC Pushbutton Switch Part Number HW1AL2GL Online
Purchase the IDEC HW1AL2GL pushbutton switch online for reliable operation in industrial environments. Featuring lockable levers, finger-safe contacts, and multiple illumination options, this switch complies with international standards including UL, CSA, and IEC. Designed for easy panel mounting, it is suitable for power control, emergency stops, and automation systems. Ensure safety and durability with this high-quality device. Available with incandescent or LED lighting, it is ideal for manufacturing, process control, and safety applications requiring dependable switching in vibration-prone environments.
Get IDEC HW1AL2GL pushbutton switch today—built for precision and long-lasting durability in industrial automation applications.
Frequently Asked Questions
Where can I buy IDEC Corporation HW1AL2GL?
You can click on the BUY or RFQ button to purchase HW1AL2GL from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part HW1AL2GL?
You can download the HW1AL2GL datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of HW1AL2GL?
IDEC Corporation
