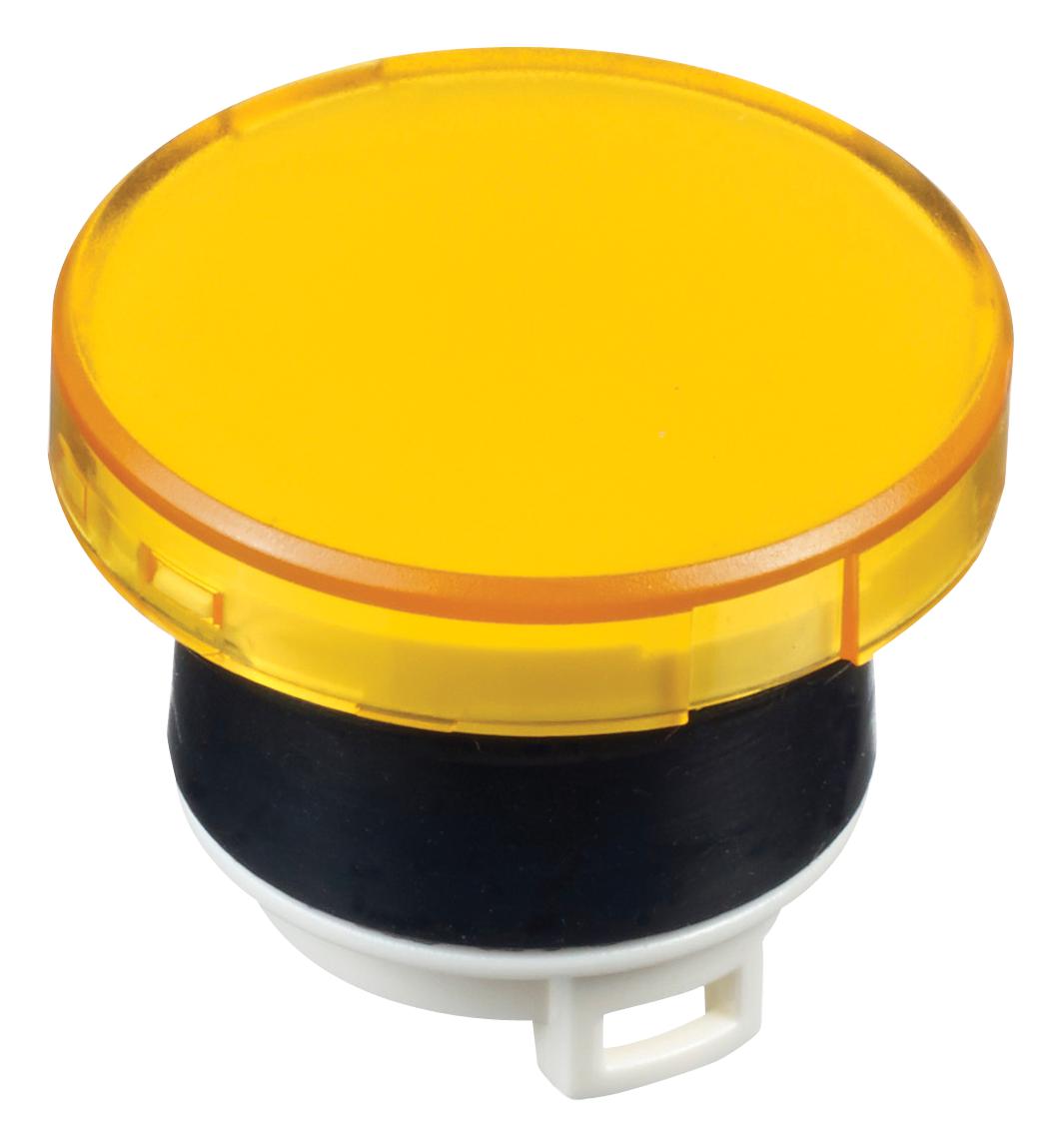

IDEC Corporation HW1AP1Y Industrial Pushbutton Switch
The HW series illuminated pushbutton features a 22mm diameter design with finger-safe IP20 contacts, full voltage and transformer LED or incandescent lamps, and tamperproof, CE, UL, CSA, and IEC standards compliance. Suitable for emergency stops, start/stop, and power switches, it offers easy panel mounting with locking rings and optional rubber covers for water and dust resistance. The switch can be used in high-vibration environments, with certified approvals ensuring safety and reliability across global industrial applications.
IDEC Corporation HW1AP1Y Industrial Pushbutton Switch Specifications:
- Diameter: 22mm
- Protection Class: IP20 (standard), IP65 with silicone cover
- Contacts: Finger-safe, 1NO-1NC, 2NO, 2NC, 2NO-2NC, 4NO, 4NC
- Electrical Ratings: AC-15: 600V, 3A; DC-13: 125V, 1.1A
- Switching Capacity: 1/4 HP @ 120V, 1HP @ 240V
- Insulation Voltage: 600V
- Operating Temperature: -25°C to +50°C
- Vibration Resistance: 10-55Hz, 98 m/sec²
- Shock Resistance: 100G
- MTBF: Over 10 million cycles at 3V DC, 5mA
- Standards & Approvals: UL, CSA, CE, TUV, SEMI S2, IEC 60947-5-5
- Front Bezel: Plastic or Metal, with optional shroud
- Illumination: LED or incandescent, full voltage or transformer driven, various colors
- Panel Mounting: Locking ring, notched panel compatible, lock recommendation for vibration resistance
- Dimensions: Panel cutout diameter 22mm, depth varies with contact type and lighting options
Buy the IDEC HW1AP1Y – Reliable Industrial Pushbutton for Emergency & Control Applications
Enhance your control panels with the IDEC HW series industrial pushbutton. Designed for durability, safety, and easy installation, these switches feature finger-safe contacts, versatile illumination options, and worldwide approvals. Perfect for emergency stops, start/stop functions, and industrial automation, they ensure reliable operation even in high-vibration environments. Choose from full voltage or transformer-driven LED and incandescent lighting, with optional silicone covers for water resistance. Order online today and elevate your automation systems with trusted quality and safety.
Order your IDEC HW1AP1Y series pushbutton today and ensure reliable operation in demanding industrial environments with certified safety features.
Frequently Asked Questions
Where can I buy IDEC Corporation HW1AP1Y?
You can click on the BUY or RFQ button to purchase HW1AP1Y from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part HW1AP1Y?
You can download the HW1AP1Y datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of HW1AP1Y?
IDEC Corporation
