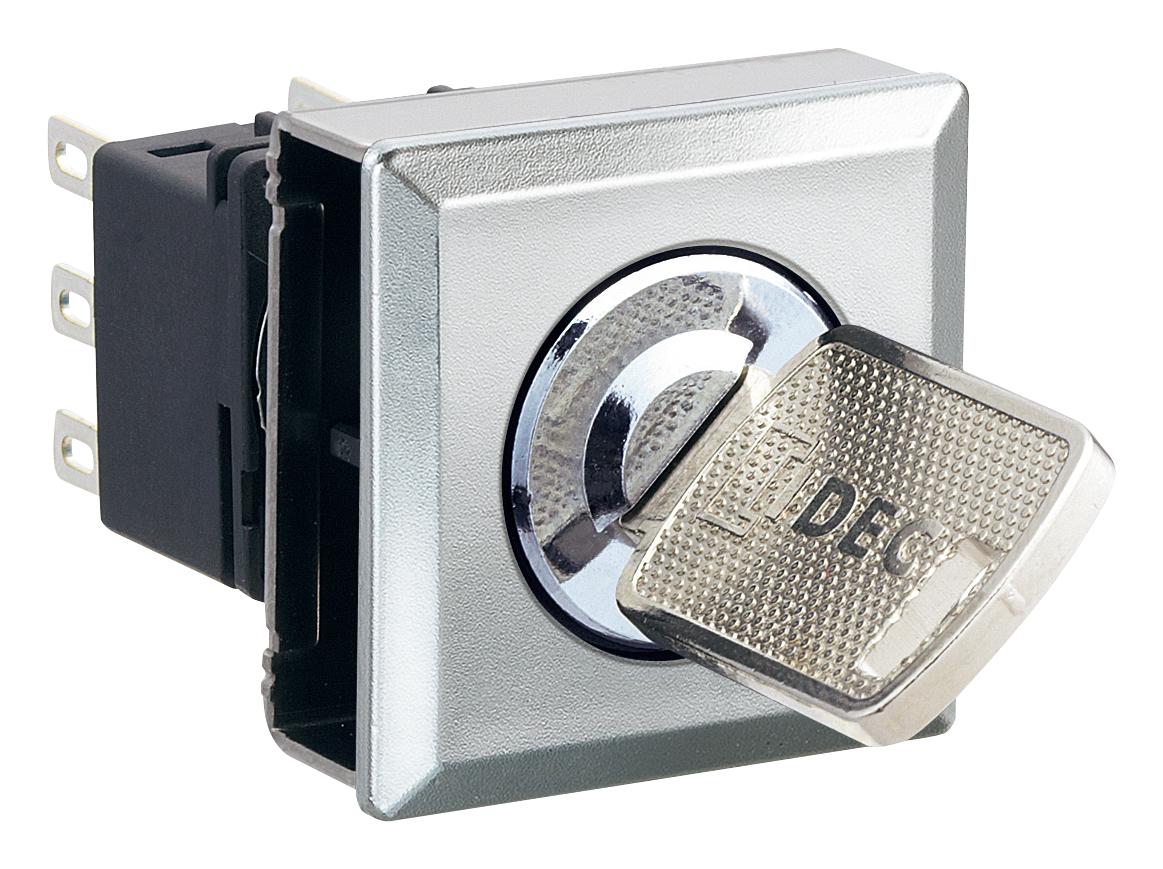

IDEC Corporation LBW7MK3ST2A Key Selector Switch
The LBW7MK3ST2A is a versatile 3-position key selector switch designed for industrial control panels. It features a robust construction with a metallic bezel, and offers momentary or maintained operation modes. The switch includes a disc tumbler key mechanism for enhanced security, available in various colors such as red, green, and white. Suitable for applications requiring reliable switching with key lock safety, it has Gold or Silver contacts, rated for up to 5A at 250V AC, and is compliant with IEC 60529 IP66 protection standards, ensuring durability in harsh environments.
IDEC Corporation LBW7MK3ST2A Key Selector Switch Specifications:
- Switch Type: 3-position key selector
- Operation Mode: Momentary or Maintained (selectable)
- Contact Material: Gold or Silver contacts
- Rated Current: 5A at 250V AC
- Contact Configuration: 3PDT with key lock
- Bezel Material: Metallic or Black plastic
- Color Options: Red, Green, White, Blue, Amber, Yellow
- Protection Degree: IP66 (from front)
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -30°C to +80°C
- Vibration Resistance: 10-55Hz, amplitude 0.5mm
- Impact Resistance: 10m/s2
- Insulation Resistance: 100MΩ at 500V DC
- Dielectric Strength: 2,500V AC for 1 min
- Mounting Panel Thickness: 0.5 to 3.2mm
Buy the Buy IDEC Key Selector Switch Part Number LBW7MK3ST2A Online
Order the IDEC LBW7MK3ST2A key selector switch online today to enhance your control system with a secure, high-quality locking mechanism, IP66 protection, and versatile operation modes. Capable of handling up to 5A at 250V AC, this switch ensures safe and durable performance in demanding environments. Its easy mounting on panels 0.5 to 3.2mm thick makes it suitable for various industrial applications, providing peace of mind and seamless integration into your electrical systems.
Buy IDEC LBW7MK3ST2A now and experience reliable security features with a durable metallic bezel for industrial control panels.
Frequently Asked Questions
Where can I buy IDEC Corporation LBW7MK3ST2A?
You can click on the BUY or RFQ button to purchase LBW7MK3ST2A from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LBW7MK3ST2A?
You can download the LBW7MK3ST2A datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LBW7MK3ST2A?
IDEC Corporation
