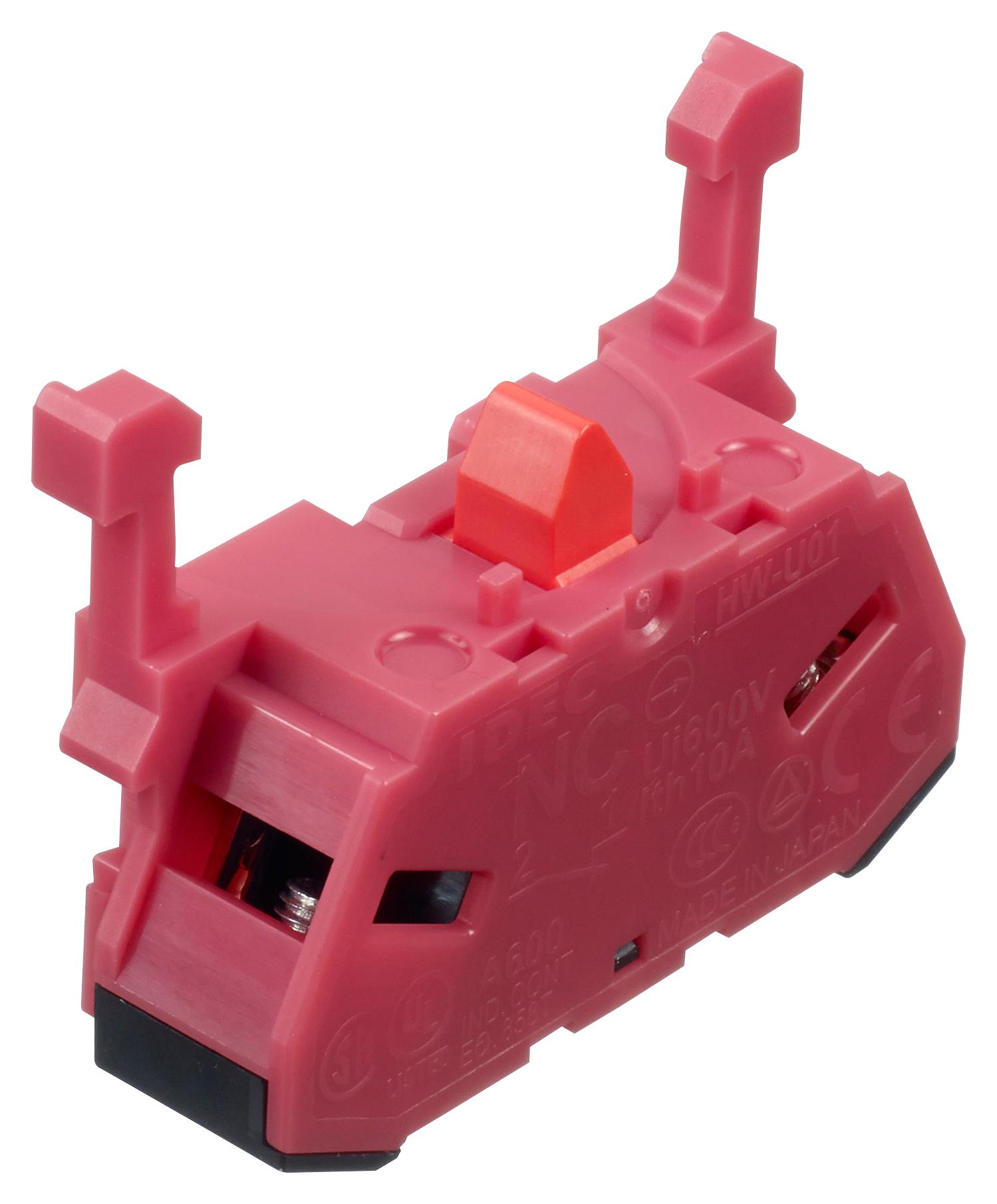

IDEC Corporation HWU01 Heavy Duty Switch
Heavy-duty industrial control switch with finger-safe IP20 structure, spring-up terminals, and versatile physical dimensions. Suitable for tough environments, it features a diecast zinc or plastic body, various contact configurations, and LED illumination options. Designed for reliable high-current operation with safety standards compliance, with options including mushroom, pushlock, pull, and key selector types. Compatible with optional accessories such as mounting rings, rubber boots, and transformer units, providing flexible installation and maintenance features for control panels and machinery applications.
IDEC Corporation HWU01 Heavy Duty Switch Specifications:
- Material: Diecast Zinc or Plastic
- Contact Configurations: 1NO-1NC, 2NO, 2NC, 2NO-2NC, 3NO, 3NC, 4NO, 4NC
- Operating Voltage: 6V, 12V, 24V AC/DC, 100V, 110V, 200V, 220V, 380V, 440V AC, 110V DC, 380V DC
- Rated Insulation Voltage: 600V
- Contact Ratings: 10A continuous current, with utilization categories AC-15, DC-12, DC-13
- LED Ratings: 6V/12V/24V AC/DC, 100/110/220/240V AC, 380V/440V AC, 110V DC
- Degree of Protection: IP20 (standard), IP65 (optional for dust-proof versions)
- Terminal Screws: M3.5
- Operating Temperature: -25°C to +70°C, -25°C to +50°C for illuminated models
- Wiring: Compatible with crimp terminals (AWG14-22), maximum wire cross-section 2 mm²
- Life Expectancy: Mechanical switching 500,000 cycles, electrical life 500,000 operations (contact-specific)
Buy the IDEC Series TWN Heavy-Duty Switch: HWU01
Order the IDEC TWN HWU01 heavy-duty switch online today. With robust construction, high current capacity, and versatile contact options, this control switch ensures reliable operation in harsh environments. Its finger-safe IP20 design, easy wiring with spring-up terminals, and compliance with safety standards make it ideal for demanding industrial automation. Equip your control panel with this durable, high-performance switch for long-term reliability and safe operation. Purchase online now and enhance your machinery's control system effortlessly.
Buy IDEC TWN HWU01 heavy-duty industrial switch now and experience unmatched reliability and performance for tough machinery applications.
Frequently Asked Questions
Where can I buy IDEC Corporation HWU01?
You can click on the BUY or RFQ button to purchase HWU01 from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part HWU01?
You can download the HWU01 datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of HWU01?
IDEC Corporation
