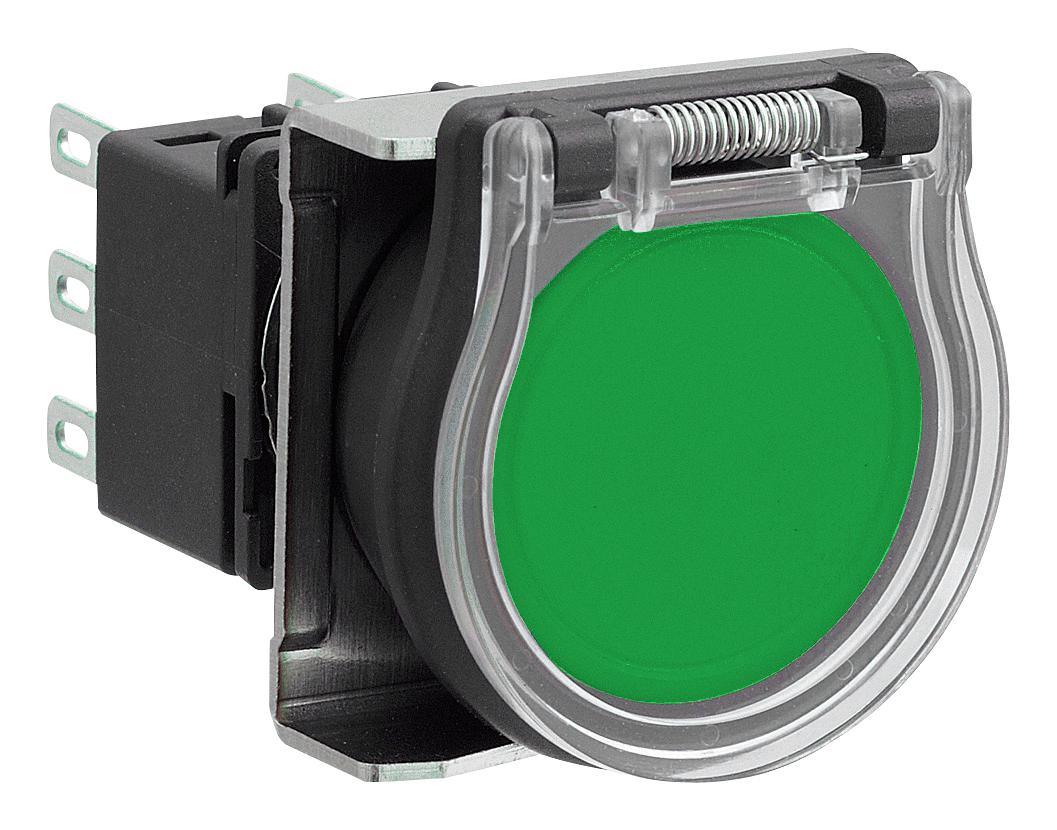

IDEC Corporation LBW6GBM1T5G Pushbutton Switch
The LBW6GBM1T5G is a robust, IP65-rated flush-mounted pushbutton designed for panel mounting in industrial automation and control systems. It features a guarded construction with a spring-return guard that opens 180 degrees, ensuring safety and ease of operation. Equipped with a durable plastic bezel and available in multiple illumination colors such as green, red, white, amber, and yellow, it utilizes LED modules with various operating voltages. The switch provides reliable contact operation with gold or silver contacts, suitable for harsh environments and critical switching applications.
IDEC Corporation LBW6GBM1T5G Pushbutton Switch Specifications:
- Panel Mounting Panel Thickness: 0.5 to 3.2 mm
- Bezel Material: Plastic or metallic options
- Bezel Type: Flush mounted with guard (spring-return, opens 180°)
- Contact Material: Gold or silver contacts
- Contact Operation: Maintained or spring return
- Illumination Colors: Amber, green, red, white, yellow, blue, with LED voltages 5V DC and 12V AC/DC
- IP Rating: IP65 from the front, resistant to dust and water splashes
- Electrical Ratings: 250V AC/DC, resistive load 3A, inductive load 1.5A, initial contact resistance 50mΩ
- Operation Temperature: -25°C to +55°C, storage -30°C to +80°C
- Vibration Resistance: 2 to 55 Hz, amplitude 0.5mm, Shock Resistance: 10 m/s²
- Dimensions: 25mm for standard bezel, 29.9mm for flush bezel, with terminal arrangement suited for PC board or solder/tab connection
Buy the Buy IDEC LBW6GBM1T5G Part Number LBW6GBM1T5G Online
Order the IDEC LBW6GBM1T5G pushbutton switch online today for industrial control applications. Its IP65-rated flush mount design ensures protection against dust and water. Featuring LED illumination in multiple colors, it offers durable gold or silver contacts suitable for harsh environments. Easy to install with panel thickness compatibility from 0.5 to 3.2 mm, it provides reliable operation with a spring-return guard that opens 180 degrees. Enhance your control panel with this high-quality, safety-oriented switch designed for long-lasting performance.
Get IDEC LBW6GBM1T5G today—built for rugged industrial environments with IP65-rated protection and reliable LED illumination.
Frequently Asked Questions
Where can I buy IDEC Corporation LBW6GBM1T5G?
You can click on the BUY or RFQ button to purchase LBW6GBM1T5G from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LBW6GBM1T5G?
You can download the LBW6GBM1T5G datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LBW6GBM1T5G?
IDEC Corporation
