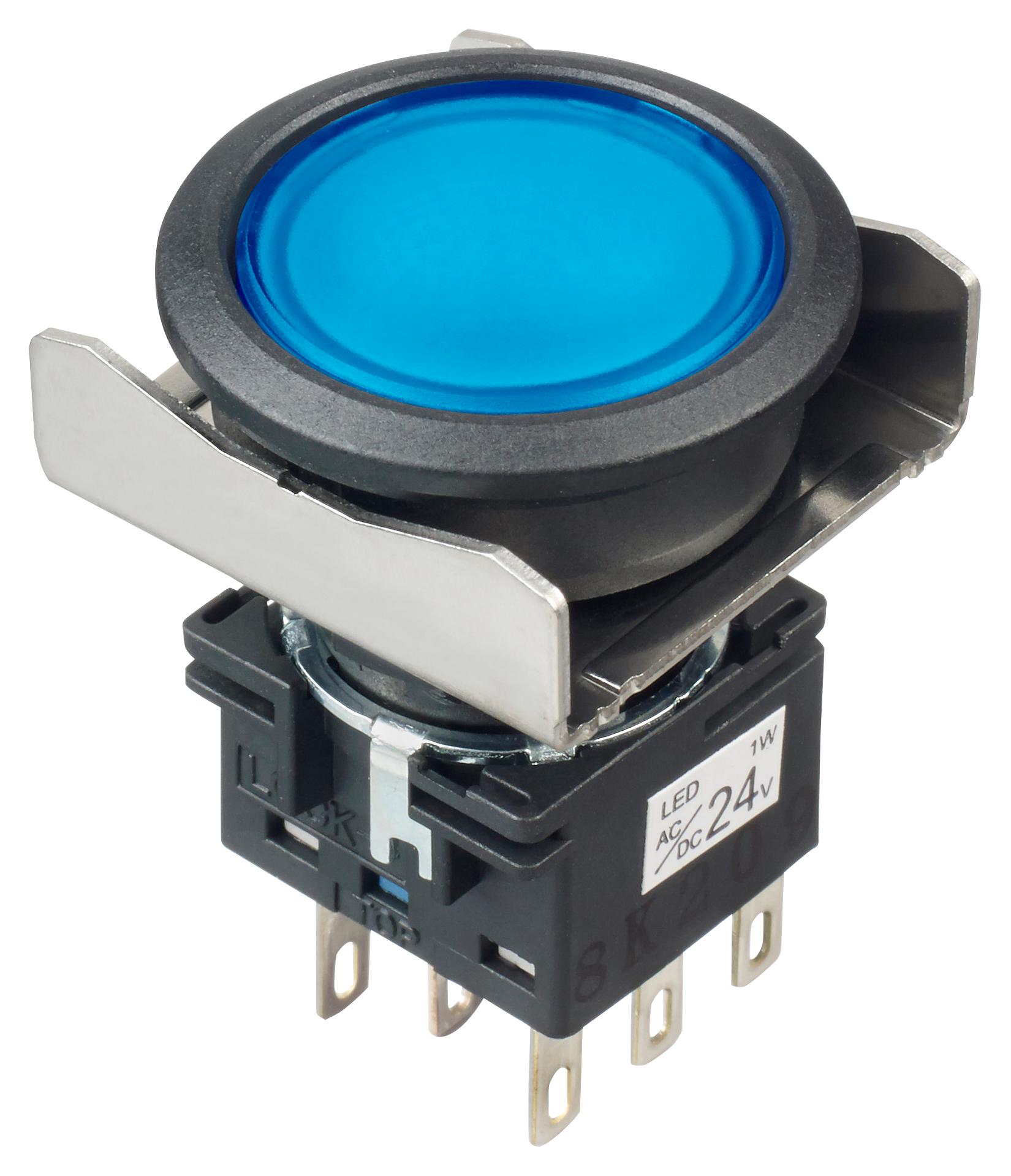

IDEC Corporation LBW6LM1RT64WS Illuminated Pushbutton
The LBW6LM1RT64WS is a stylish and functional illuminated pushbutton with a large operator surface, ideal for frequent operation. It features a black bezel, momentary operation, and gold contacts. Incorporating LED illumination, it offers multiple color options including red, green, yellow, and white for clear operation status indication. Its IP65 protection ensures durability against water and dust, suitable for industrial control panels. This pushbutton combines aesthetic appeal with high reliability, making it suitable for automation and machinery control systems.
IDEC Corporation LBW6LM1RT64WS Illuminated Pushbutton Specifications:
- Panel Thickness: 0.5 to 3.2 mm
- Bezel Color: Black
- Operation Mode: Momentary
- Contact Material: Gold-plated
- Contact Configuration: SPDT
- Illumination: LED with color options (Red, Green, Yellow, White)
- Protection Degree: IP65 (IEC 60529)
- Rated Voltage: 24V AC/DC
- Current Consumption: 24 mA
- Temperature Range: -25°C to +60°C
- Dielectric Strength: 2,500V AC, 1 min
- Insulation Resistance: ≥50 MΩ at 500V DC
- Weight: Approx. 25 grams
- Mounting: Through-panel with gasket for secure installation
Buy the IDEC Series LBW Illuminated Pushbutton: LBW6LM1RT64WS
Enhance your control panel with the IDEC LBW series illuminated pushbutton, featuring a large operator surface, stylish black bezel, IP65 protection, LED illumination, and gold contacts. Ideal for frequently used control switches such as START and STOP. Easy to install with through-panel mounting and a durable construction suitable for industrial environments. Available in multiple LED colors, including red, green, yellow, and white, to provide clear status indication. Built for long-lasting performance, this control component ensures operational excellence in automation systems.
Buy IDEC LBW6LM1RT64WS now and experience unmatched reliability and high-performance operation in industrial automation.
Frequently Asked Questions
Where can I buy IDEC Corporation LBW6LM1RT64WS?
You can click on the BUY or RFQ button to purchase LBW6LM1RT64WS from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LBW6LM1RT64WS?
You can download the LBW6LM1RT64WS datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LBW6LM1RT64WS?
IDEC Corporation
