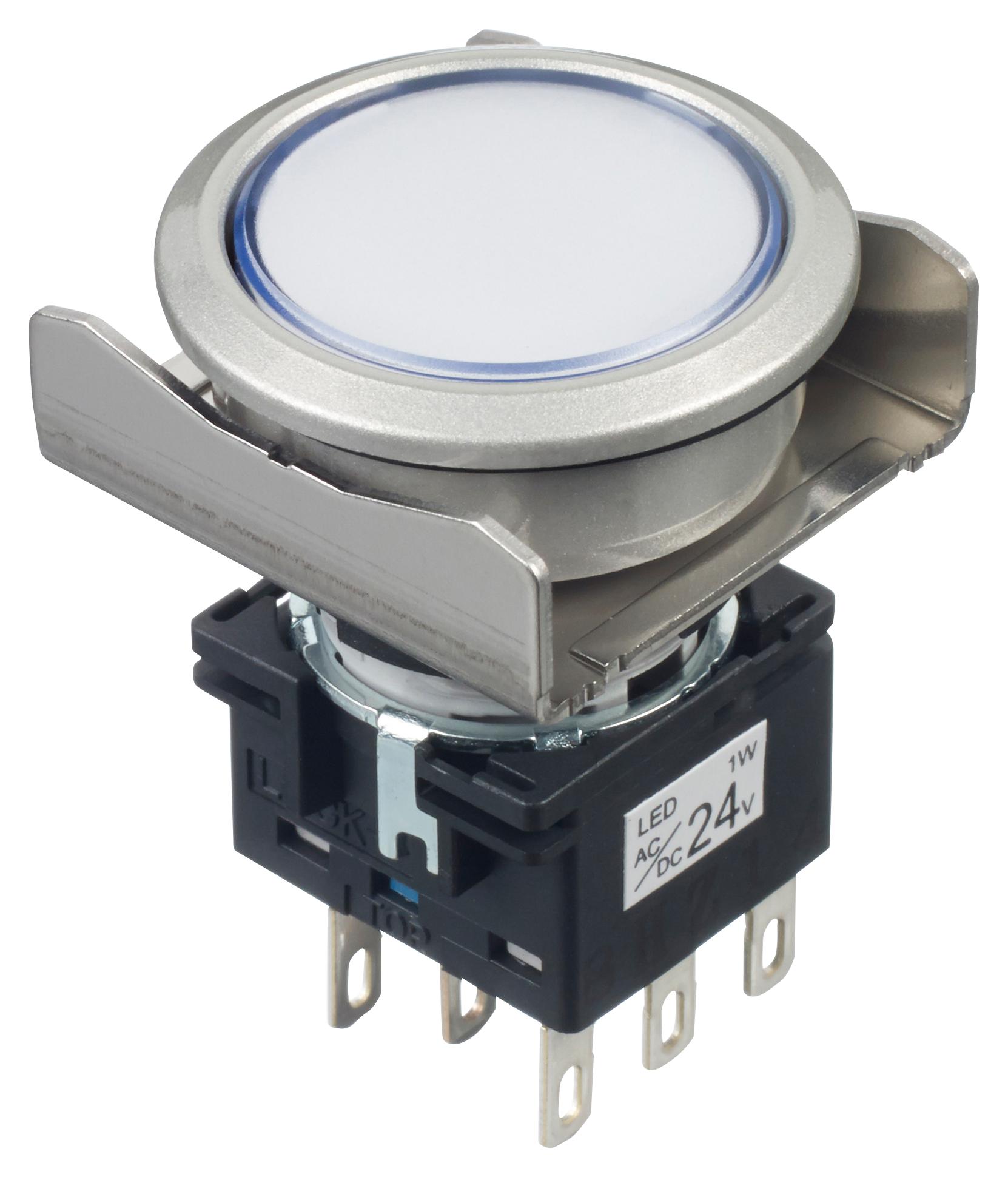

IDEC Corporation LBW6MLA1T64PW Illuminated Pushbutton
The LBW series illuminated pushbutton switch features various mounting options, including extended, flush, and ring-illuminated styles. It supports multiple color LEDs such as amber, green, red, blue, and white, with operating voltages of 5V, 12V, and 24V AC/DC. Designed for panel mounting with IP65 protection, it utilizes solder or PCB terminals, ensuring reliable connections. The switches are suitable for industrial control panels, offering momentary or maintained operation, with clear lens options for labels and symbols. A durable plastic or metallic bezel enhances robustness and aesthetic appeal, making it ideal for automation and machinery control applications.
IDEC Corporation LBW6MLA1T64PW Illuminated Pushbutton Specifications:
- Mounting Style: Extended, flush, and ring-illuminated
- Bezel Material: Plastic or metallic
- Protection: IP65 from the front panel
- LED Colors: Amber, green, red, blue, white, yellow (white lens type for illumination off)
- Operating Voltage: 5V DC, 12V AC/DC, 24V AC/DC
- Current Rating: 7mA (red/white), 2mA (green), 5mA (blue), 20mA (white, yellow)
- Operation: Momentary, maintained, with optional guard and extended styles
- Button Shape: Round or square with different bezel designs
- Contact Material: Gold or silver contacts
- Terminal Style: Solder/tab and PC board terminals
- Rated Insulation Voltage: 500V AC
- Dielectric Strength: 500V AC for 1 min
- Vibration Resistance: 2-3 Hz with specified amplitude
- Operating Temperature Range: -25°C to +55°C or +60°C depending on model
- Weight: Ranges from 4.3g to around 6g depending on style
- Accessories: Lens, marking plate, mounting gasket, terminal cover
Buy the Buy IEC LBW Series Illuminated Pushbutton Part Number LBW6MLA1T64PW Online
Enhance your control panel with our IEC LBW6MLA1T64PW illuminated pushbutton switch, offering IP65 protection, multiple LED colors, and various mounting styles. Designed for durability and easy wiring with solder or PCB terminals, this switch supports momentary and maintained operations. Whether for automation, machinery, or panel applications, it promises reliable performance, clear labeling options, and robust construction. Purchase online today and optimize your industrial control setup with this versatile, high-quality pushbutton switch designed for demanding environments.
Buy IEC LBW6MLA1T64PW series illuminated pushbutton now and experience reliable operation, IP65 protection, and versatile mounting options perfect for industrial control panels.
Frequently Asked Questions
Where can I buy IDEC Corporation LBW6MLA1T64PW?
You can click on the BUY or RFQ button to purchase LBW6MLA1T64PW from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LBW6MLA1T64PW?
You can download the LBW6MLA1T64PW datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LBW6MLA1T64PW?
IDEC Corporation
