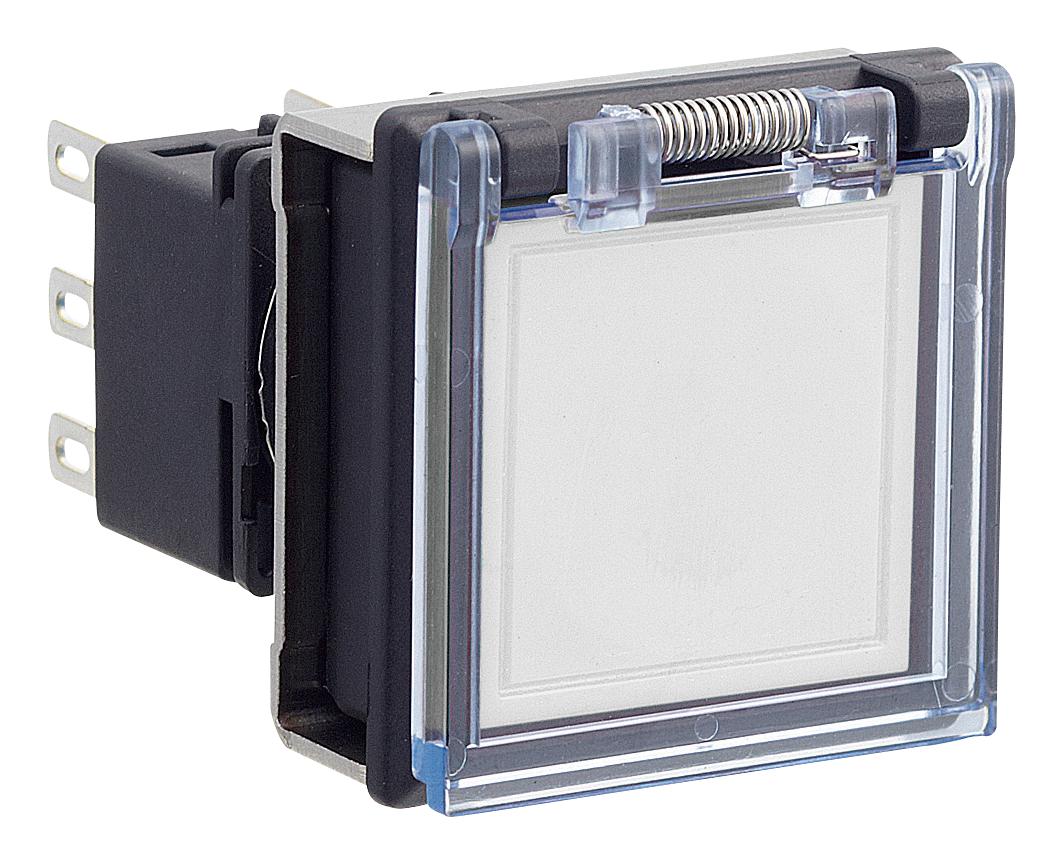

IDEC Corporation LBW7GBM1T5W Industrial Pushbutton
The LBW7GB Series flush mounted pushbutton features a durable metallic bezel, momentary operation, and high IP65 protection. Designed for use in automation and control panels, it offers a wide range of illumination options including LED light with various colors like red, green, white, and yellow. Suitable for industrial environments, this pushbutton ensures reliable switching with gold or silver contacts, easy installation, and compatibility with legend markings or legend plates for labeling. Its robust construction and versatile configurations make it ideal for factory automation, machinery control, and process management systems.
IDEC Corporation LBW7GBM1T5W Industrial Pushbutton Specifications:
- Operation: Momentary
- Bezel: Metallic, 25mm diameter
- Protection Class: IP65 front
- Illumination: LED, multiple colors (Red, Green, White, Yellow)
- Terminal Style: Solder/Tab or PC Board
- Contacts: Gold/CPDT or Silver/DPDT
- Rated Voltage: 24V AC/DC
- Rated Current: 7mA
- Dielectric Strength: 500V AC for 1 minute
- Operating Temperature: -25°C to +55°C
- Panel Thickness: 0.5 to 3.2mm
- Weight: Approximately 5g
- Dimensions: Overall diameter 25mm, panel cut-out 22mm
- Ingress Protection: IP65 (from front)
- Material: Metal bezel, plastic body
- Wiring: Solder/Tab or PC Board terminals
- Mounting: Flush mount, with optional gasket and mounting ring
- Compliance: CE, UL recognized
Buy the Buy IDEC LBW Series Pushbutton Part Number LBW7GBM1T5W Online
Enhance your control systems with the IDEC LBW7GB Series pushbutton. Featuring a robust metallic bezel, LED illumination in multiple colors, and IP65 protection, this switch offers exceptional durability and performance for industrial automation. Easy to install with solder/tab or PCB terminals, it provides reliable momentary operation ideal for factory automation, machinery control, and process management. Order online now and ensure your projects benefit from high-quality, dependable switching components designed for tough environments.
Order your IDEC LBW7GBM1T5W metallic bezel LED pushbutton today and enhance your control panel with reliable, high-quality switching components.
Frequently Asked Questions
Where can I buy IDEC Corporation LBW7GBM1T5W?
You can click on the BUY or RFQ button to purchase LBW7GBM1T5W from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LBW7GBM1T5W?
You can download the LBW7GBM1T5W datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LBW7GBM1T5W?
IDEC Corporation
