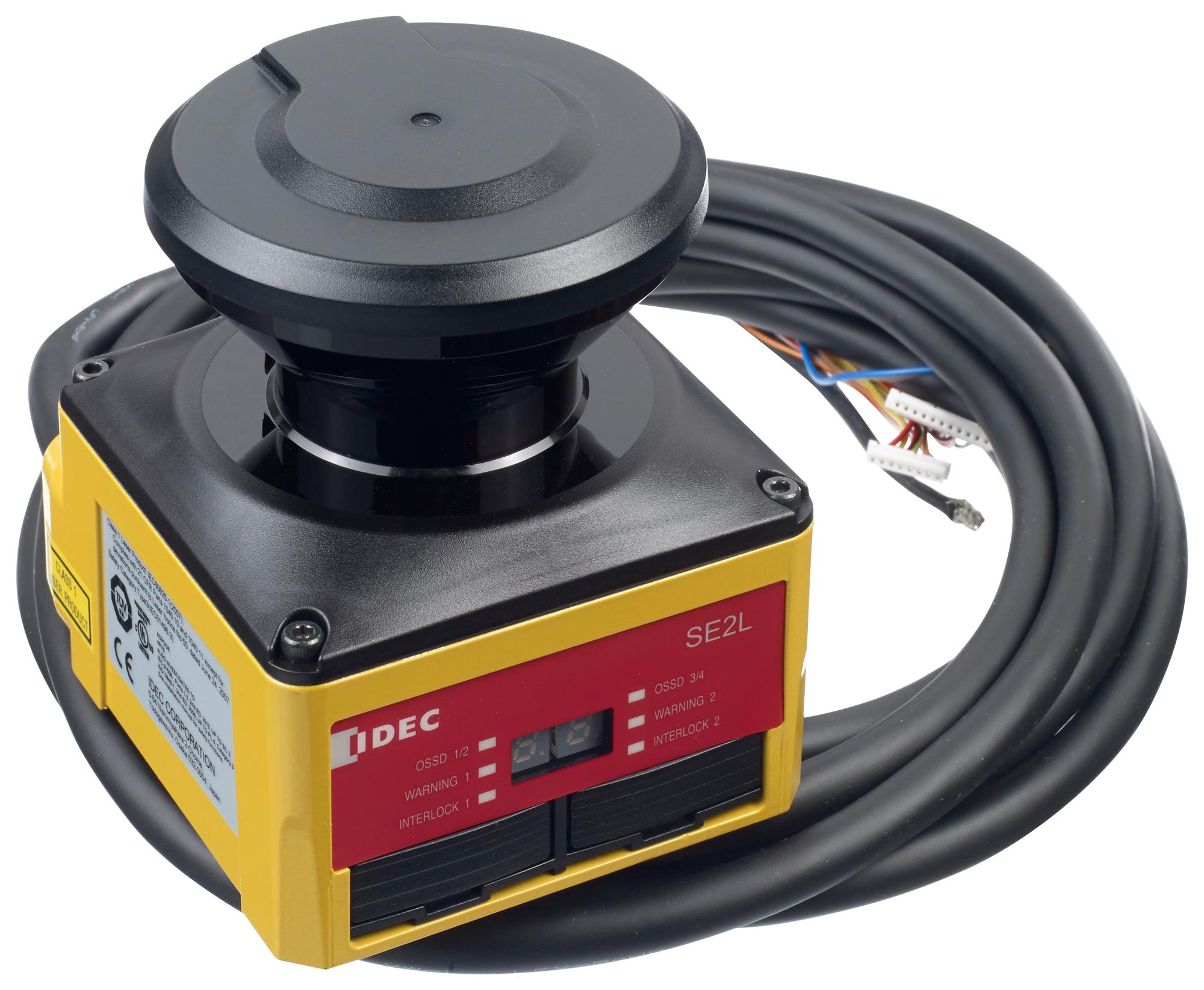

IDEC Corporation SE2LH05LP Safety Laser Scanner
The SE2L Safety Laser Scanner by IDEC is a highly advanced detection device designed for ensuring safety in hazardous areas. Featuring a 270° sensing angle, a maximum detection range of 6 meters for the protection zone and 20 meters for warning zones, it offers precise, non-reflective obstacle detection suitable for large industrial environments. Equipped with functionality for multiple safety zones, muting, and area switching via encoder inputs, it supports SIL 2 safety standards, enabling reliable machine safeguarding while facilitating flexible installation and configuration. Its robust design incorporates IP65 protection and features an easy-to-use software interface for setup and monitoring, making it ideal for modern safety applications.
IDEC Corporation SE2LH05LP Safety Laser Scanner Specifications:
- Protection Zone: 6.0 m maximum
- Warning Zone: 20 m maximum (non-safety related)
- Additional Safety Distance: +100 mm
- Sensing Angle: 270°
- Maximum Sensing Distance: 6 m (protection), 20 m (warning)
- Number of Configurable Patterns: 32
- Scan Cycle: 30 ms
- Laser Class: 1 (IEC 60825-1)
- Operating Temperature: -10°C to +50°C
- Power Supply Voltage: 24V DC ±10%
- Power Consumption: Max. 50W
- Enclosure Protection: IP65
- Material: Aluminum diecast body, polycarbonate optical window
- Dimensions: 80W x 80D x 95H mm
- Weight: approx. 0.8 kg (cable model)
- Safety Standard: SIL 2 (IEC 61508), HFT=1
- Response Time: Configurable from 90 ms to 510 ms
- Output Type: PNP transistor, maximum 200 mA per output
- Maximum number of master/slave connections: 4
- Installation: Suitable for indoor environments, requires stable mounting
- Compliance: ISO13849, IEC 61508
- Environmental Resistance: Vibration and shock resistant withstanding typical industrial conditions
Buy the IDEC Series SE2L Safety Laser Scanner: SE2L-H05LP
Order the IDEC Series SE2L Safety Laser Scanner online today and enhance your safety mechanisms. This advanced device boasts a wide sensing angle, configurable zones, and SIL 2 compliance for reliable human and obstacle detection. Its IP65 rated enclosure ensures durability in industrial environments, while the intuitive software facilitates quick setup and monitoring. Designed for large-scale safety applications, the SE2L integrates seamlessly with existing control systems via Ethernet and RS-485 interfaces. Experience improved safety and productivity by choosing IDEC’s trusted, high-performance laser scanning solutions for your automation needs.
Get IDEC SE2L-H05LP today—built for precision, safety, and long-lasting reliability in industrial safety guarding.
Frequently Asked Questions
Where can I buy IDEC Corporation SE2LH05LP?
You can click on the BUY or RFQ button to purchase SE2LH05LP from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part SE2LH05LP?
You can download the SE2LH05LP datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of SE2LH05LP?
IDEC Corporation
