IDEC Corporation LD9Z6ALBRC Signaling Tower

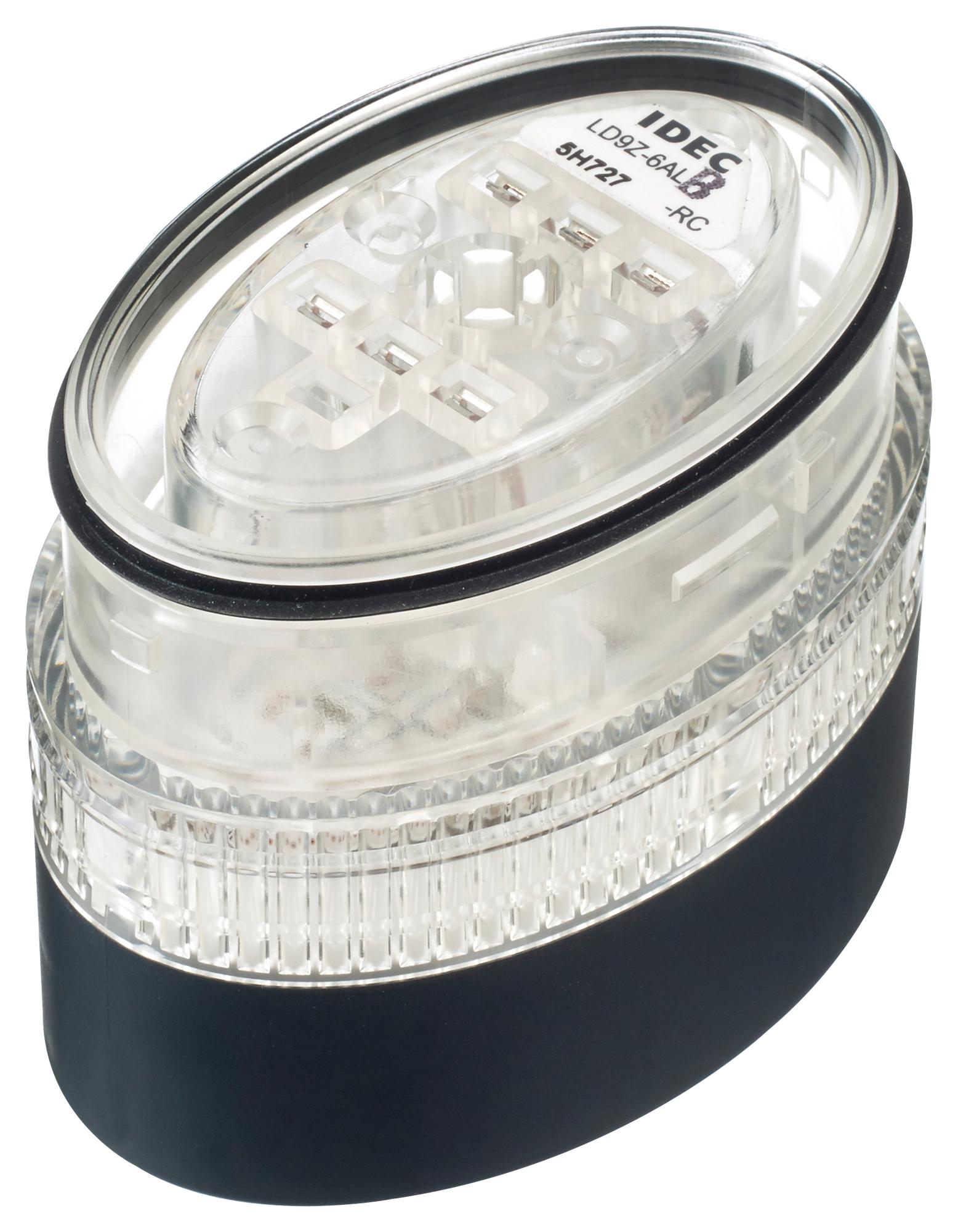

The LD6A LED SignaLight Towers are highly visible signaling solutions featuring a unique striped design and oval lenses for improved visibility from multiple directions. Available in various mounting styles, including frame, wall, direct, pole with base, and pole with L-shaped bracket, these towers offer customization options and conform to international standards for flashing cycles. Equipped with an alarm capable of 360° sound projection, adjustable volume, and IP65/IP54 protection ratings, they are suitable for industrial environments demanding clear, durable visual and audio alerts.
IDEC Corporation LD9Z6ALBRC Signaling Tower Specifications:
- Housing Material: ABS resin
- Lens Material: AS resin
- Pole: Steel (nickel-chrome plated)
- Pole Base: Diecast aluminum
- Mounting Styles: Frame, wall, direct, pole with base, pole with L-shaped bracket
- Flashing Cycle: 1.75Hz (IEC 60073)
- Alarm Frequency: 3.3kHz, two styles
- Alarm Volume: Adjustable 70 to 90dB
- Protection Ratings: IP65 (steady), IP54 (flashing)
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +75°C
- External Contact Ratings: 100mA min, 35V AC min dielectric strength
- Vibration Resistance: 10 to 56Hz, 0.5mm amplitude
- Shock Resistance: 147 m/s², 6 shocks per axis
- LED Life Expectancy: About 30,000 hours (at 25°C)
- Rated Insulation Voltage: 36V AC/DC
- Power Consumption: Approximately 0.75W
- Dimensions vary by mounting type and number of tiers, with detailed measurements provided in mounting diagrams.
- Certification Standards: IEC 60073, IEC 60947-1
Buy the IDEC LD6A – Reliable Signaling Lights for Industrial Applications
Discover the IDEC Signaling Tower LD6A, a durable, high-visibility LED warning solution designed for industrial environments. Featuring multiple mounting options, IP65/IP54 ratings, and adjustable alarm sound with 360° audio projection, it ensures effective signaling. The towers are available with customized configurations and compliant with IEC standards for flashing cycles. Easy to install and maintain, these signaling towers enhance safety and communication in manufacturing plants, factories, and automation systems, making them an essential component for industrial process control and hazard warning systems.
Get IDEC LD6A today—built for precision and durable signaling in demanding industrial environments.
Frequently Asked Questions
Where can I buy IDEC Corporation LD9Z6ALBRC?
You can click on the BUY or RFQ button to purchase LD9Z6ALBRC from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LD9Z6ALBRC?
You can download the LD9Z6ALBRC datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LD9Z6ALBRC?
IDEC Corporation
