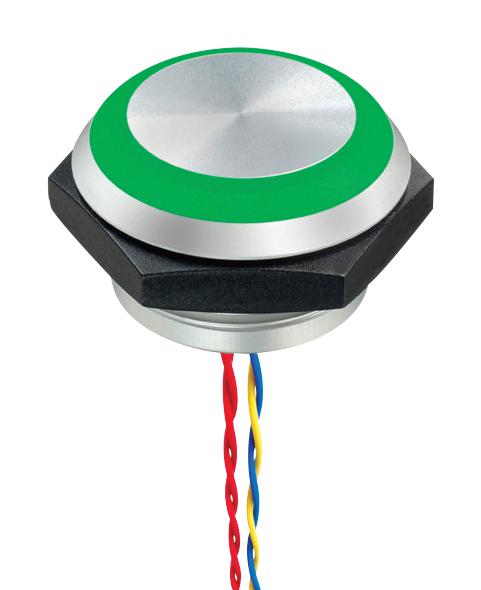

IDEC Corporation PN1LM4AFB002E2A Piezo Switch
The Piezo switch series features a solid-state, reliable pushbutton design with IP68/IP69K sealing, stainless steel housing, and illumination options including dot and ring LED indicators. Available in 22mm and 30mm diameters, these switches are ideal for demanding applications in medical, food processing, and industrial environments. They support over 50 million cycles, have minimal switch resistance, and incorporate easy-to-clean, sealed surfaces that withstand harsh conditions with high durability and long lifespan. Variants include flush and side-viewable LED configuration options with multiple color choices.
IDEC Corporation PN1LM4AFB002E2A Piezo Switch Specifications:
- Housing Diameter: 22mm or 30mm
- Housing Material: Stainless steel 316L
- Sealing: IP68 and IP69K
- Switch Type: Solid state, momentary pushbutton
- LED Options: Dot or ring illumination, various colors including blue, green, red, yellow, white, and dual color
- Electrical Ratings: 1A at 24V AC/DC
- Switch Resistance: ON: 10 ohms max / OFF: 5 M ohms min
- Cycle Life: Over 50 million cycles
- Operating Force: 2.00N to 6.00N
- Operating Temperature: -40°C to +75°C
- Panel Thickness: 1.5mm to 6mm
- Material: Metal housing, polycarbonate LED ring
- Locking Nut: Stainless steel or nylon
Buy the IDEC 22mm– Reliable Piezo Switches for Industrial Applications
Order the high-performance piezo switch online today. Designed for durability and reliability, these switches feature IP68/IP69K sealing, stainless steel housing, and versatile LED illumination options. Perfect for industrial, medical, and food processing applications, the switches support over 50 million cycles, ensuring long-term operation. Easy to clean and resistant to contaminants, they offer dependable operation under harsh conditions. Purchase now to secure advanced surface-mount switching solutions with customizable LED indicators, supporting demanding industry needs with proven quality and performance.
Buy IDEC piezo switch PN1LM4AFB002 now and experience unmatched reliability and long-lasting performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy IDEC Corporation PN1LM4AFB002E2A?
You can click on the BUY or RFQ button to purchase PN1LM4AFB002E2A from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part PN1LM4AFB002E2A?
You can download the PN1LM4AFB002E2A datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of PN1LM4AFB002E2A?
IDEC Corporation
