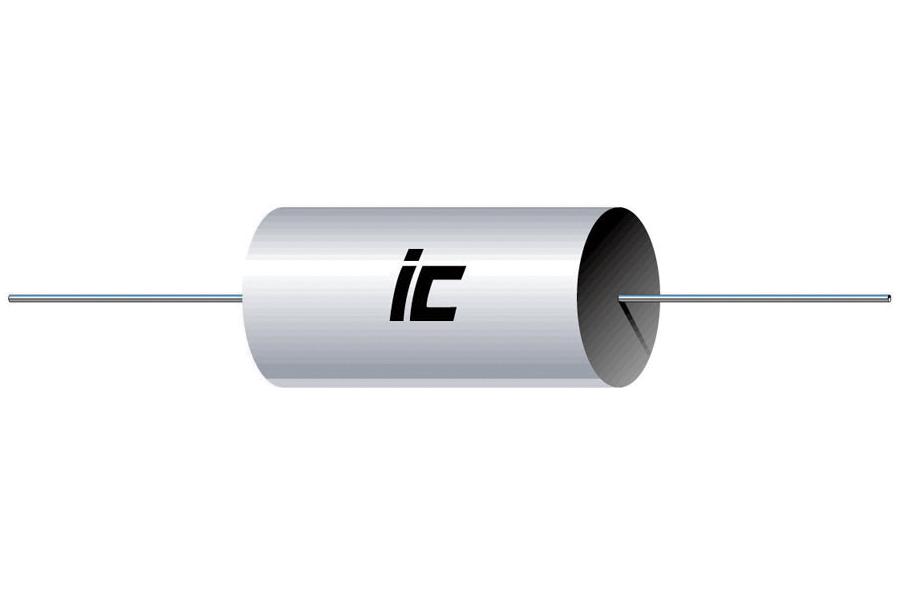

ILLINOIS CAPACITOR 102MWR630K Metallized Polyester Film Capacitor
These metallized polyester film capacitors are compact, with low ESR, suited for general-purpose applications like bypass, coupling, and blocking. They operate at AC voltages up to 400V and temperatures from -40°C to +105°C. Their small size and flame-retardant polyester coating make them ideal for electronic circuit filtering, signal coupling, and energy storage. They feature a dielectric polyester construction, lead-free tinned copper leads, and are UL 94V0 flame retardant. Designed for reliable performance, these capacitors ensure minimal capacitance drift and stable insulation resistance over time.
ILLINOIS CAPACITOR 102MWR630K Metallized Polyester Film Capacitor Specifications:
- Capacitance Range: 0.001 µF to 1.5 µF
- Voltage Rating: up to 400V AC, peak, and DC voltage 50 to 400V
- Operating Temperature: -40°C to +105°C
- Dielectric Material: Polyester film with metallized coating
- Physical Dimensions: Vary from 5.5x11.5mm, up to 28.5x46.5mm
- Dissipation Factor: Max 1.5% at 25°C and 10kHz for C<0.1uF
- Insulation Resistance: Typical 15000 to 30000 MΩ
- Capacitance Tolerance: ±5% (optional)
- Flammability: UL 94V0 rated polyester tape wrap
- Lead Material: Tinned copper leads
- Self Inductance: Less than 1 nanohenry per mm
- Capacitance Drift: Less than 1.0% after 2 years at 40°C
- Dielectric Strength: 160% of VDC for 2 seconds at 25°C
- Dissipation Factor: Less than 0.005 at 1kHz and 25°C
- Pulse Voltage: Up to 400V peak
Buy the Metallized Polyester Film Capacitors – Reliable Bypass for Industrial Applications
Enhance your electronic circuits with our high-quality metallized polyester film capacitors. Designed for reliable bypass, coupling, and filtering in industrial and consumer electronics, they operate efficiently up to 400V AC/DC and withstand temperature ranges from -40°C to +105°C. These compact capacitors feature low ESR, flame-retardant polyester wrap, and minimal capacitance drift over time. Perfect for energy storage, signal coupling, and noise filtering, they ensure stable performance and durability, available for online purchase with fast shipping and excellent customer support.
Order your Illinois Capacitor metallized polyester film capacitor today and ensure your electronic projects have dependable performance and long-lasting stability.
Frequently Asked Questions
Where can I buy ILLINOIS CAPACITOR 102MWR630K?
You can click on the BUY or RFQ button to purchase 102MWR630K from an authorized ILLINOIS CAPACITOR distributor.
How do I troubleshoot issues or seek technical support for part 102MWR630K?
You can download the 102MWR630K datasheet or visit the ILLINOIS CAPACITOR website for support.
Who is the manufacturer of 102MWR630K?
ILLINOIS CAPACITOR
