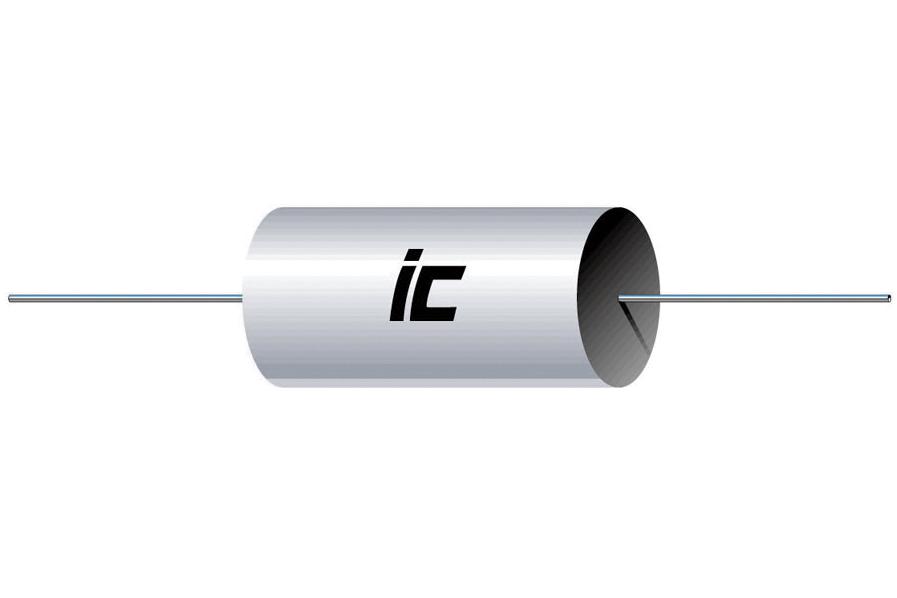

ILLINOIS CAPACITOR 103MPW400K Metallized Polypropylene Axial Capacitor
Metallized polypropylene film capacitors with axial leads designed for switching power supplies and general-purpose applications, excluding across the line use. These capacitors feature low ESR, high AC/ripple current handling, and stability over frequency and temperature ranges. Operating from -55°C to +105°C, they support voltages up to 400VDC and have a dissipation factor below 0.001. With flame-retardant polyester tape wrapping and lead-free copper leads, these capacitors ensure durability, consistent performance, and are ideal for high-frequency, high-stability electronic circuit applications.
ILLINOIS CAPACITOR 103MPW400K Metallized Polypropylene Axial Capacitor Specifications:
- Capacitance: 103µF
- Voltage: 400VDC
- Tolerance: ±10%
- Temperature Range: -55°C to +105°C, 10% at 1kHz, 25°C, optional ±5%
- Dissipation Factor: <0.001 at 1kHz, 25°C
- Insulation Resistance: >30,000 MΩ @25°C, <70% RH, for 1 minute at 0.33uF; >10,000 MΩ for >0.33uF
- Life Span: 2000 hours at +85°C with 125% rated voltage
- Capacitance Change: <3% initially, <5% after 56 days at 40°C with 90-95% RH
- Damp Heat Test: <0.005 at TkHz, 25°C
- Self Inductance: <1 nH per mm of body and lead length
- Capacitance Drift: <0.5% over 2 years at 40°C
- Dielectric Strength: 200% of rated voltage for 10 seconds at 25°C
- Dielectric Material: Polypropylene
- Construction: Metallized film with flame-retardant polyester tape (UL 510), epoxy resin end fills (UL94V0)
- Leads: Lead-free, tinned copper
- Lead Diameter: 0.6 mm to 0.8 mm
- Certifications: UL Listed, RoHS compliant
Buy the Metallized Polypropylene Film Capacitors – Reliable Axial Leaded for Power Supplies
Enhance your electronic circuitry with high-quality metallized polypropylene axial capacitors, offering low ESR and high ripple current handling. Operating from -55°C to +105°C, these capacitors support voltages up to 400VDC, ensuring durability and stability over time. Ideal for power supplies, filtering, and high-frequency applications, they feature flame-retardant tape and lead-free copper leads for safety and environmental compliance. Quick online purchase guarantees consistent performance, long life, and superior electrical characteristics, making them essential components for your industrial and electronic projects.
Buy Cornell Dubilier metallized polypropylene film capacitors now and experience unmatched reliability and performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy ILLINOIS CAPACITOR 103MPW400K?
You can click on the BUY or RFQ button to purchase 103MPW400K from an authorized ILLINOIS CAPACITOR distributor.
How do I troubleshoot issues or seek technical support for part 103MPW400K?
You can download the 103MPW400K datasheet or visit the ILLINOIS CAPACITOR website for support.
Who is the manufacturer of 103MPW400K?
ILLINOIS CAPACITOR
