INFINEON ESD233B1W0201E6327XTSA1 ESD Protection Diode
The ESD233-B1-W0201 is a bi-directional transient voltage suppressor (TVS) diode designed for ESD and surge protection in sensitive electronic circuits. With a working voltage up to 5.5 V and a small 0201 SMD package, it provides excellent line capacitance of 33 pF at 1 MHz, clamping voltage typically at 13 V, and very low reverse current under 1 nA. It ensures robust ESD protection, certified for industrial use, RoHS and Halogen Free compliant, and suitable for high-density PCB integration to safeguard ICs and digital interfaces.
INFINEON ESD233B1W0201E6327XTSA1 ESD Protection Diode Specifications:
- Package Size: 0201 (0.58 mm x 0.28 mm x 0.15 mm)
- Working Voltage: Vwm = 5.5 V
- Line Capacitance: 33 pF at 1 MHz
- Clamping Voltage: 13 V at 16 A, 8/20 us surge
- Reverse Leakage Current: < 1 nA at Vp=5.5 V
- Peak Pulse Power: 70 W
- Peak Pulse Current: 45 A
- Operating Temperature Range: -55°C to 125°C
- Storage Temperature: -65°C to 150°C
- RoHS Compliant, Halogen Free
- Applicable Standards: IEC 61000-4-2 (ESD): +20 kV
- IEC 61000-4-4 (EFT): 2 kV / 40 A (5/50 ns)
- IEC 61000-4-5 (Surge): 5 A (8/20 us)

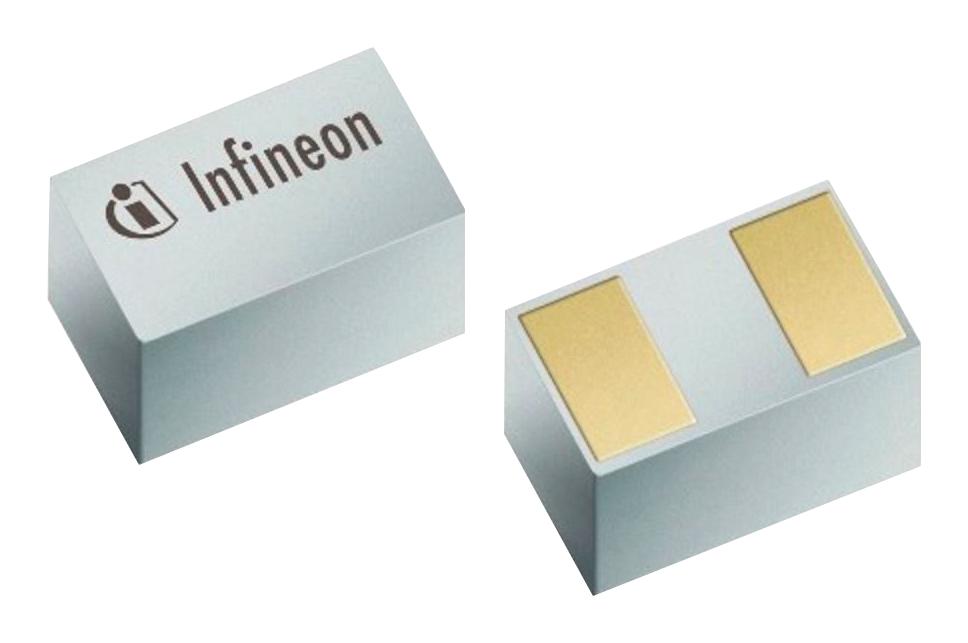

Buy the Infineon Series WLL-2-1 ESD Protection: ESD233B1W0201
Purchase the Infineon ESD233-B1-W0201 today to ensure your electronic circuits are protected from ESD and surge events. This compact 0201 bi-directional TVS diode offers a working voltage of 5.5 V, low line capacitance of 33 pF, and a clamping voltage of 13 V at 16 A. Designed for high-density PCB applications, it supports industry standards like IEC 61000-4-2 for ESD and provides excellent reliability, RoHS, and Halogen Free compliance. Secure your sensitive components now with this miniaturized, high-performance protective device.
Get Infineon ESD233-B1-W0201 today—built for robust ESD and surge protection in compact 0201 package, ensuring your circuit's safety and reliability.
Frequently Asked Questions
Where can I buy INFINEON ESD233B1W0201E6327XTSA1?
You can click on the BUY or RFQ button to purchase ESD233B1W0201E6327XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part ESD233B1W0201E6327XTSA1?
You can download the ESD233B1W0201E6327XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of ESD233B1W0201E6327XTSA1?
INFINEON
