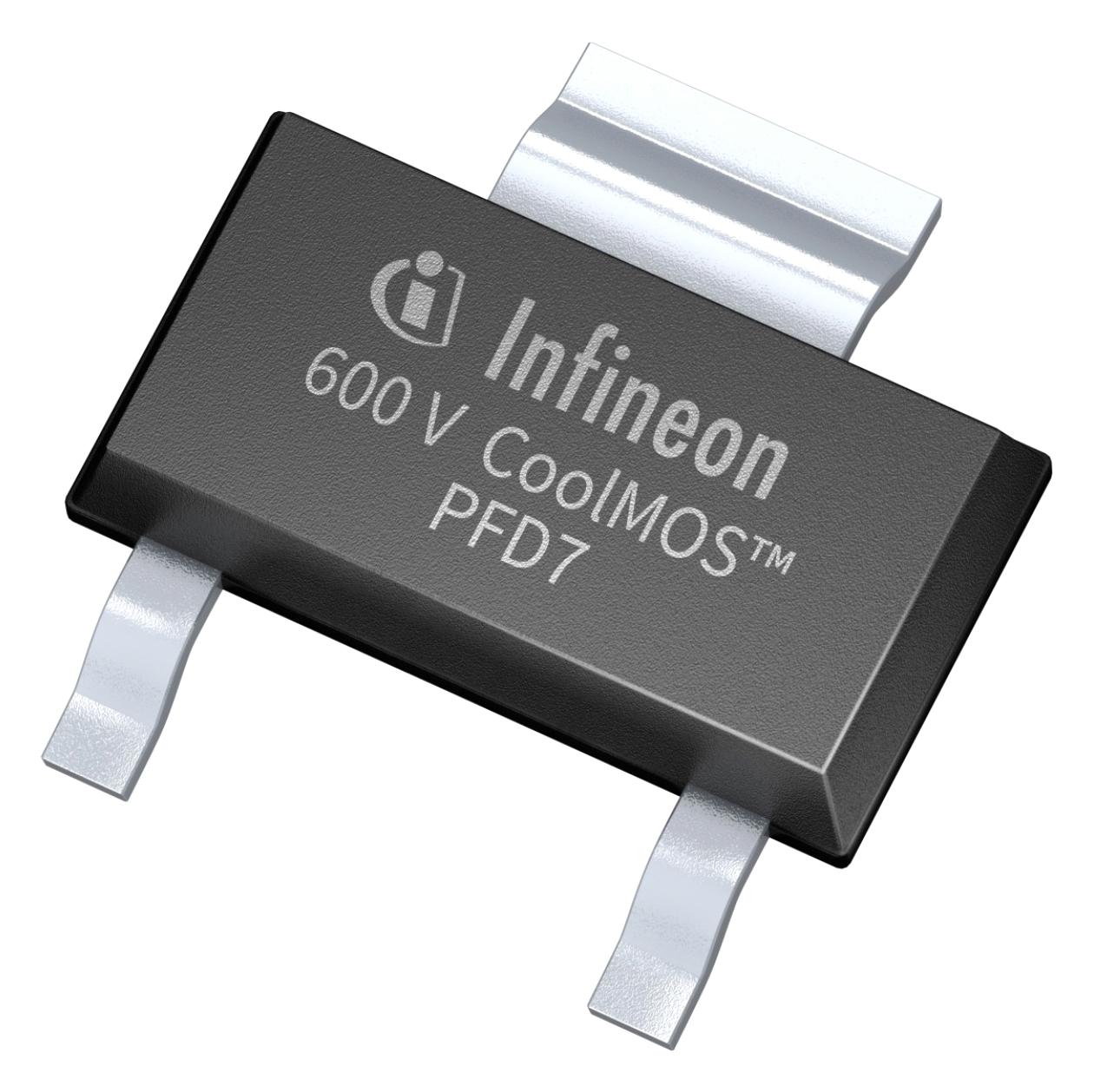

INFINEON IPN60R360PFD7SATMA1 High-Voltage Power MOSFET
The CoolIMOS PFD7 is a high-voltage, superjunction MOSFET with a voltage rating of 600V, designed for efficient high-power switching in consumer applications like chargers, adapters, lighting, and motor drives. It features low switching and conduction losses, excellent thermal management, a fast body diode, and high ESD robustness. Qualified to JEDEC standards, its compact PG-SOT223 package supports high power density, enabling slim, energy-efficient designs suitable for high frequency switching topologies. Its ruggedness and ease of optimization make it ideal for ZVS circuits and high-density systems.
INFINEON IPN60R360PFD7SATMA1 High-Voltage Power MOSFET Specifications:
- Drain-source breakdown voltage: 600 V
- Pulsed drain current: 24 A
- Power dissipation: 7 W
- Thermal resistance junction-solder point: 17.36 °C/W
- Thermal resistance junction-ambient: 160 °C/W on PCB
- Maximum junction temperature: 150 °C
- Gate threshold voltage: 3.5 to 4.5 V
- Gate charge (Qg): 12.7 nC
- On-state resistance (Rds(on)): 0.705 Ω at 10 V
- Switching times: turn-on delay 13.5 ns, turn-off delay 46 ns
- Diode recovery time: 90 ns
- Recovery charge (Qr): 0.28 pC
- Maximum avalanche energy: 29 mJ
- Reinforced ruggedness: dv/dt 120 V/ns
- Package: PG-SOT223 (JEDEC standard)
- Storage temperature: -40°C to 150°C
- Operating junction temperature: -40°C to 150°C
- Insulation withstand voltage: 250 V
