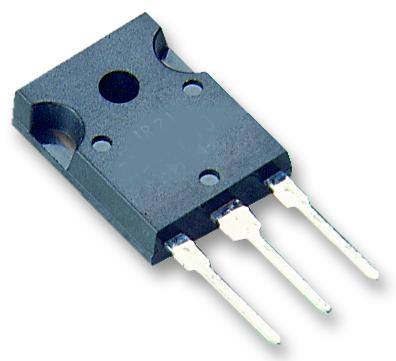

INFINEON IGZ100N65H5XKSA1 High-Speed Power IGBT
The IGZ100N65H5 is a high-speed IGBT transistor based on TRENCHSTOP™ 5 technology, optimized for industrial power control applications such as uninterruptible power supplies, welding converters, and solar inverters. It features a 650V breakdown voltage, ultra-low switching losses thanks to Kelvin emitter pin design, and a maximum junction temperature of 175°C. Its robust construction ensures high efficiency and reliability in demanding switching operations, providing low gate charge and thermal stability, making it ideal for medium to high-frequency switching in industrial environments.
INFINEON IGZ100N65H5XKSA1 High-Speed Power IGBT Specifications:
- Collector-Emitter Voltage: 650 V
- Collector Current: 100 A (DC), 400 A (pulsed)
- Collector-Emitter Saturation Voltage: 1.65-2.10 V
- Gate-Emitter Threshold Voltage: 3.2-4.0 V
- Maximum Junction Temperature: 175°C
- Power Dissipation: 536 W at 25°C, 268 W at 100°C
- Thermal Resistance, Junction-Case: 0.28 K/W
- Thermal Resistance, Junction-Ambient: 40 K/W
- Switching Times: Turn-on delay 30-50 ns, Fall time 15-17 ns
- Gate Charge: Approx. 2100 nC
- Capacitance (Input/Output): ~6560 pF / 97 pF
- VEE (Gate-Emitter Voltage): ±20 V
- Storage Temperature Range: -55°C to +150°C
- Soldering Temperature: 260°C (wave soldering for 10s)
Buy the Infineon IGZ100N65H5 – Reliable 650V High-Speed IGBT for Industrial Applications
Purchase the Infineon IGZ100N65H5 IGBT online today and empower your power electronics with this high-speed, 650V device. Designed with TRENCHSTOP™ 5 technology, it offers ultra-low switching losses, high current capability, and excellent thermal stability, making it perfect for industrial applications like UPS, welding, and solar inverters. Easy to replace previous models thanks to plug-and-play design, this IGBT ensures efficient, reliable performance with low gate charge and exceptional switching characteristics. Order now to upgrade your power modules effortlessly.
Order your Infineon Series IGZ100N65H5 IGBT today and enhance your industrial power switching with this high-speed, reliable device designed for demanding applications.
Frequently Asked Questions
Where can I buy INFINEON IGZ100N65H5XKSA1?
You can click on the BUY or RFQ button to purchase IGZ100N65H5XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IGZ100N65H5XKSA1?
You can download the IGZ100N65H5XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IGZ100N65H5XKSA1?
INFINEON
