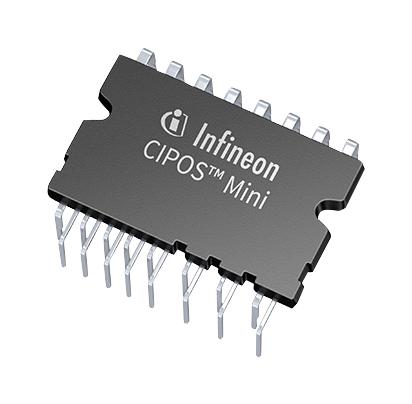

INFINEON IKCM10H60GAXKMA1 Motor Drive Module
The CIPOS™ control integrated power system module controls three-phase AC motors and permanent magnet motors, optimized for high-frequency drive applications like washing machines and fans. Featuring TRENCHSTOP™ IGBTs, anti-parallel diodes, and an integrated gate driver, it offers excellent electrical performance, overload protection, temperature monitoring, and safe deadtime management. Its rugged, low EMI design ensures reliable operation under demanding conditions, with good thermal conduction and electrical isolation. Ideal for motor drives requiring high switching frequencies around 15kHz, it enhances system efficiency and compactness.
INFINEON IKCM10H60GAXKMA1 Motor Drive Module Specifications:
- Maximum blocking voltage: 600V
- Peak reverse voltage: 600V
- Recommended operating temperature: -40°C to 100°C
- Storage temperature: -40°C to 125°C
- Isolation voltage RMS: 2000V
- Output current: 6A continuous, 16A peak
- Switching frequency: up to 20kHz
- Power dissipation per IGBT: 23.1W
- Junction temperature: -40°C to 150°C
- Thermal resistance junction-case: 5.42K/W
- Thermal resistance junction-case diode: 6.88K/W
- Control supply voltage VDD: 7V to 20V
- High side floating voltage: 13.5V to 18.5V
- Input voltage LIN/HIN: 0V to 5V
- Deadtime: minimum 0.5μs, typical 380ns
- Switching times: turn-on delay 600ns, turn-off delay 770ns
- Overcurrent detection threshold: 0.47V
- Bootstrap voltage: 600V maximum reverse voltage
- Package: Dual in-line module, lead-free, RoHS compliant.
- Mechanical: Mounting torque 0.59-0.78 Nm, weight approx. 6.15g.
Buy the Infineon Series CIPOS™ IKCM10H60GA: Control Power System
Experience high-performance motor control with the Infineon CIPOS power system module. Designed for three-phase AC motors, it features integrated IGBTs, anti-parallel diodes, and an efficient gate driver to ensure reliable operation at high switching frequencies. Its rugged construction provides excellent thermal conduction, electrical isolation, and extensive overload protection, making it ideal for demanding applications like washing machines, fans, and low-power motor drives. Easily integrable, RoHS compliant, and with a compact dual-in-line package, order online today to optimize your system's reliability and efficiency.
Order your Infineon Series CIPOS™ IKCM10H60GA control power module today and give your motor drives the dependable high-frequency performance they deserve.
