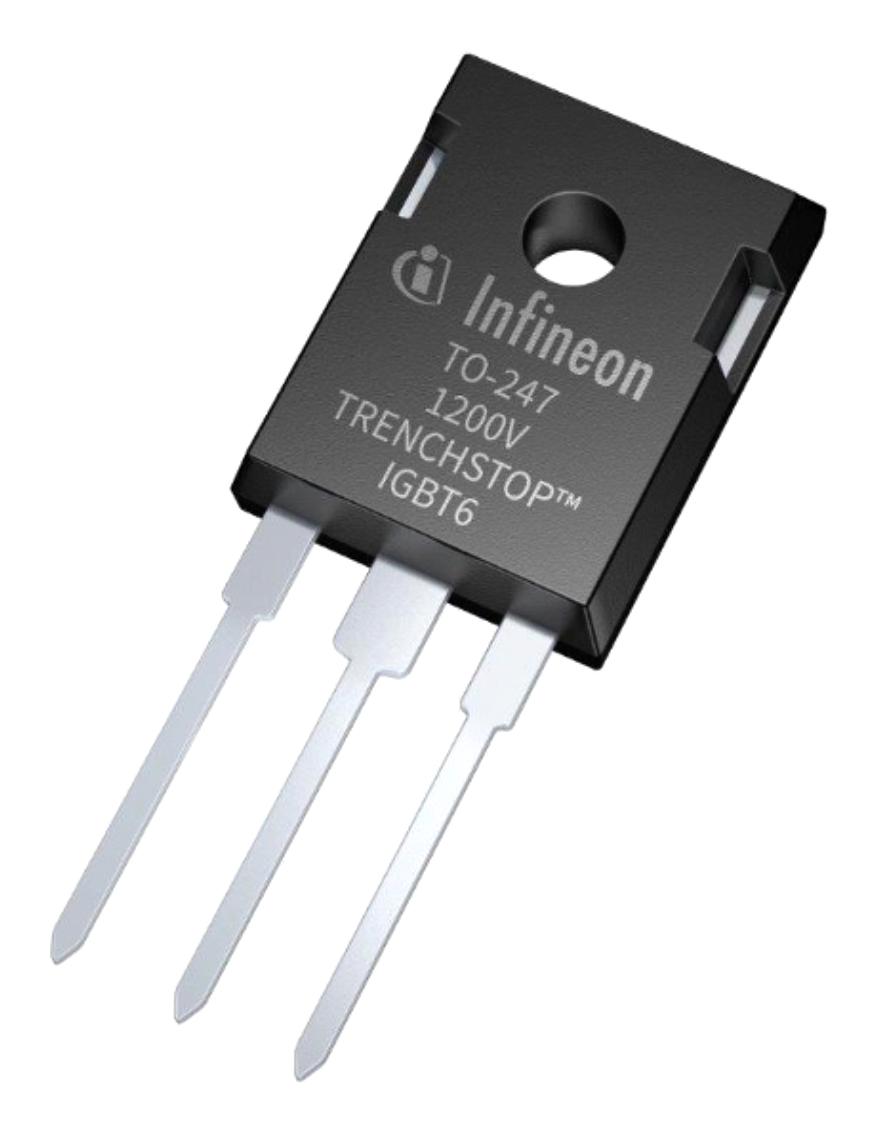

INFINEON IKW15N120BH6XKSA1 High Speed Power Module
The IKW15N120BH6 is a sixth-generation, high-speed soft switching IGBT module designed for efficient power switching in industrial applications. Featuring 1200V voltage rating and 15A current capability, it incorporates TrenchStop™ technology for reduced losses, low EMI, and fast recovery diodes for optimal performance. Its high junction temperature of 175°C ensures reliable operation in demanding environments including UPS, solar inverters, chargers, and energy storage systems. The device supports resonant and hard switching topologies, with comprehensive datasheets and modeling support available. It is Pb-free and RoHS compliant, ensuring environmental standards are met.
INFINEON IKW15N120BH6XKSA1 High Speed Power Module Specifications:
- Voltage Rating: 1200V
- Collector Current: 15A (DC), 60A (pulsed)
- Maximum Junction Temperature: 175°C
- Gate-Emitter Voltage: +20V
- Reverse Recovery Time: 340ns (at 25°C), 540ns (at 175°C)
- Power Dissipation: 200W at 25°C, 100W at 100°C
- Thermal Resistance: Junction-Case 0.74 KW, Junction-Ambient 40 KW
- Package: PG-TO247-3
- Peak Diode Reverse Recovery Charge: 0.83uC
- Switching Energy Losses: 1.25mJ (typical)
- Gate Charge: 920nC
- Isolation Voltage (Vge): +20V
- Pb-free, RoHS compliant
Buy the Buy Infineon IGBT Part Number IKW15N120BH6XKSA1 Online
Purchase Infineon IGBT Part Number IKW15N120BH6XKSA1 online today to ensure reliable high-speed switching in your power electronics projects. This advanced power module offers 1200V voltage rating and 15A current capacity, suitable for industrial UPS, solar inverters, chargers, and energy storage systems. Incorporating innovative TrenchStop™ technology, it provides low EMI, fast diode recovery, and high junction temperature tolerance to optimize system efficiency and longevity. Shop now for fast delivery and technical support, elevating your design with high-performance, environmentally compliant components.
Get Infineon IGBT Part Number IKW15N120BH6XKSA1 today—built for high-speed switching, efficiency, and long-lasting durability in industrial power applications.
Frequently Asked Questions
Where can I buy INFINEON IKW15N120BH6XKSA1?
You can click on the BUY or RFQ button to purchase IKW15N120BH6XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IKW15N120BH6XKSA1?
You can download the IKW15N120BH6XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IKW15N120BH6XKSA1?
INFINEON
