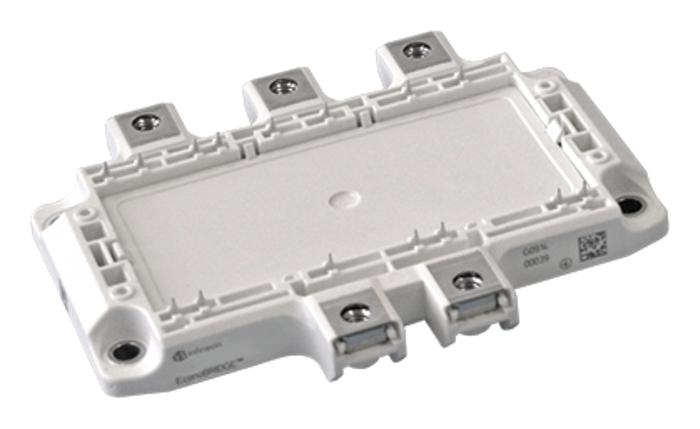

INFINEON TDB6HK240N16PBOSA1 IGBT Module
The TDB6HK240N16P is an advanced IGBT module with PressFIT technology, featuring a high blocking voltage of 1600V and a continuous RMS current capacity of 240A. Designed for demanding motor drives, power conversion, and inverter applications, it includes an integrated NTC temperature sensor and isolated base plate for enhanced safety and reliability. The module is UL approved and complies with high insulation voltage standards, ensuring durability in industrial environments. Its robust construction supports long service life and efficient thermal management, making it suitable for high power switching tasks.
INFINEON TDB6HK240N16PBOSA1 IGBT Module Specifications:
- Blocking Voltage: 1600V
- Continuous RMS Current: 240A
- Surge Forward Current (10 ms): 1600A
- Forward Voltage at 140A: 0.90V
- Reverse Current at 150°C: 1.40 mA
- Peak Reverse Voltage: 1600V
- Isolation Test Voltage: 40 kV RMS, 1 min
- Thermal Resistance, Junction to Case: 0.30 KW per diode
- Thermal Resistance, Case to Heatsink: 0.064 KW per diode
- Creepage Distance, Contact to Heatsink: 25.0 mm
- Maximum Junction Temperature: 130°C
- Module Weight: 350 g
- Base Material: Copper
- Mounting Torque (Electr. connection): 0.6 Nm
- Certifications: UL Approved
Buy the Buy Infineon TDB6HK240N16P Part Number TDB6HK240N16P Online
Purchase the Infineon IGBT module today for reliable high-voltage switching, designed for demanding industrial applications. With a blocking voltage of 1600V and a continuous RMS current of 240A, it ensures excellent performance in power conversion and motor drive systems. Features include an integrated NTC temperature sensor, isolated base plate, and PressFIT connection technology for easy assembly. UL certification guarantees safety and durability, making this module the ideal choice for high power, high efficiency switching tasks. Buy online now and enhance your power electronics system with confidence.
Get Infineon TDB6HK240N16P today—built for high power switching, long-lasting durability, and reliable motor drive applications.
Frequently Asked Questions
Where can I buy INFINEON TDB6HK240N16PBOSA1?
You can click on the BUY or RFQ button to purchase TDB6HK240N16PBOSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TDB6HK240N16PBOSA1?
You can download the TDB6HK240N16PBOSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TDB6HK240N16PBOSA1?
INFINEON
