INFINEON IM393L6E3XKLA1 Power Hybrid IC
IM393-L6E is a 15A, 600V integrated power hybrid IC designed for advanced appliance motor drives such as energy-efficient fans and pumps. It combines low VCE(on) trench IGBT technology with industry-grade high-speed drivers in a thermally enhanced package. Features include integrated gate drivers, temperature monitoring, over-current protection, and isolation capable of 2000V rms. Suitable for washing machines, air conditioners, refrigerators, and low-power motor drives, this compact IPM simplifies design with reliable fail-safe operation and high thermal performance.
INFINEON IM393L6E3XKLA1 Power Hybrid IC Specifications:
- Operating junction temperature: -40°C to 150°C
- Operating case temperature: -40°C to 125°C
- Storage temperature: -40°C to 125°C
- Isolation test voltage: 2000V rms for 1 minute
- Blocking voltage: 600V
- DC-link supply voltage: 450V (surge 500V)
- Maximum output current: 15A (continuous), 22.5A (peak at 25°C)
- Power dissipation per IGBT: 23W
- Gate driver supply voltage: 0 to 20V
- Input control voltage: 0 to 5V
- Thermal resistance junction-case: 47.5°C/W (low side W-phase), 6.1°C/W (diode)
- Package type: Tiny DIP
- Isolation: 2000V rms, CTI > 600
- Recognized by UL (File Number E314539)

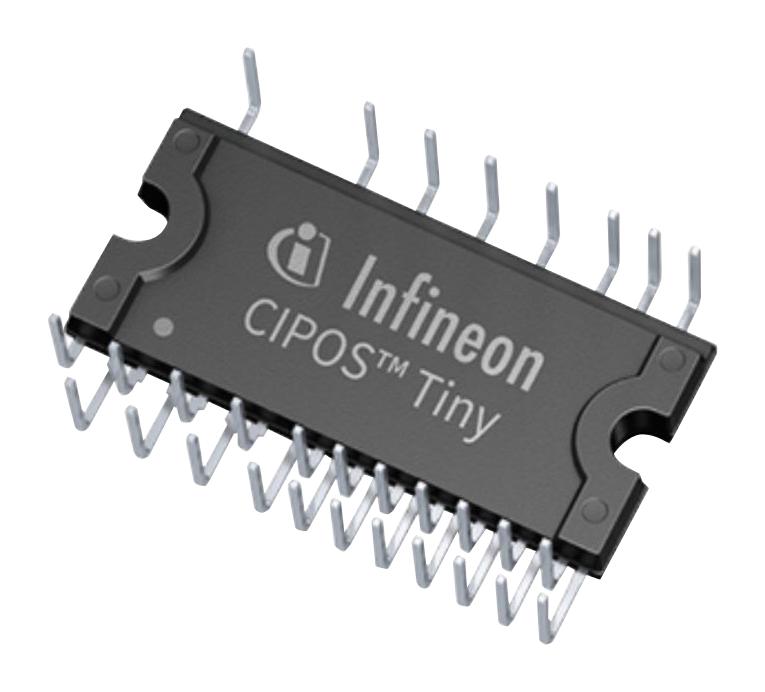

Buy the Infineon Series Tiny IPM: IM393L6E3XKLA1
Discover the reliable performance of the Infineon IM393L6E3XKLA1, a compact 600V/15A power hybrid IC designed for appliance motor drives. With advanced low VCE(on) trench IGBT technology, integrated gate drivers, high-precision temperature monitoring, and 2000V rms isolation, this component simplifies designs of energy-efficient fans, pumps, and refrigerators. Its robust protection features ensure fail-safe operation in demanding environments. Easily order online to enhance your project with this industry-leading IPM, optimized for thermal management and high transient response for modern appliance applications.
Get Infineon IM393L6E3XKLA1 today—built for precision, energy efficiency, and long-lasting durability in appliance motor drives.
Frequently Asked Questions
Where can I buy INFINEON IM393L6E3XKLA1?
You can click on the BUY or RFQ button to purchase IM393L6E3XKLA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IM393L6E3XKLA1?
You can download the IM393L6E3XKLA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IM393L6E3XKLA1?
INFINEON
