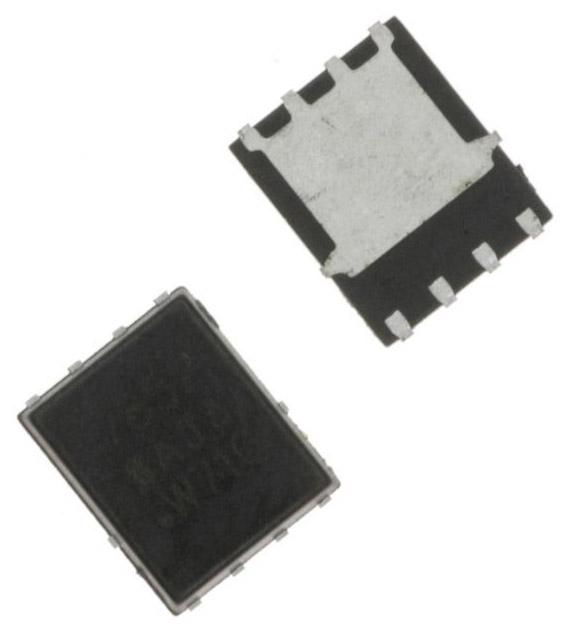

INFINEON IPL60R365P7AUMA1 High-Voltage Power MOSFET
The IPL60R365P7 is a 600V Power MOSFET based on Infineon’s CoolMOS™ P7 platform, designed for high-efficiency switch mode power supplies, PFC circuits, and resonant switching stages. It features excellent ease of use with very low ringing, robust body diode, and outstanding ESD capability (>2kV). With low switching and conduction losses, it enables compact, cooler, and more efficient solutions suitable for LED lighting, servers, telecom, and UPS applications. Fully qualified according to JEDEC standards for industrial applications, it offers high power density and rugged performance.
INFINEON IPL60R365P7AUMA1 High-Voltage Power MOSFET Specifications:
- Maximum drain-source voltage Vds: 600V
- Continuous drain current Id: specified by Tj and device conditions
- Pulsed drain current Ip,pulse: 26A
- Avalanche energy Ens: 27mJ
- Avalanche energy Repetitive Ear: 0.14mJ
- Gate threshold voltage Vgs(th): 3 to 4V
- Gate-source voltage Ves: -20V to +20V (static), -30V to +30V (dynamic)
- Power dissipation Ptot: 46W at Tj=25°C
- Thermal resistance junction-case Rinic: 2.73°C/W
- Thermal resistance junction-ambient Rina: typically 62°C/W on PCB
- Maximum junction temperature Tj: -40°C to 150°C
- Gate charge Qg: 13nC
- Drain-source on-resistance Rds(on): typically 0.725Ω at Vgs=10V, Tj=150°C
- Drain-source breakdown voltage Vds: 600V
- Reverse diode forward voltage Vf: approximately 0.9V at 2.7A
- Diode reverse recovery time tr: 145ns
- Package: PG-VSON-4 (surface-mount)
Buy the Infineon IPL60R365P7 – Reliable High-Voltage Power MOSFET for Industrial Applications
Order the IPL60R365P7 online to ensure your high-voltage switch mode power supplies, PFC, and resonant stages operate with maximum efficiency and robustness. This reliable power MOSFET offers low switching losses, excellent ESD robustness (>2kV), and a rugged body diode suitable for demanding industrial, lighting, server, telecom, and UPS applications. Its JEDEC qualification guarantees high manufacturing standards, making it an essential component for designing cooler, more compact, and energy-efficient electronic solutions. Purchase now for fast delivery and industry-leading quality.
Buy Infineon IPL60R365P7 now and experience unmatched reliability and performance in high-voltage switching applications, ideal for industrial environments.
Frequently Asked Questions
Where can I buy INFINEON IPL60R365P7AUMA1?
You can click on the BUY or RFQ button to purchase IPL60R365P7AUMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPL60R365P7AUMA1?
You can download the IPL60R365P7AUMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPL60R365P7AUMA1?
INFINEON
