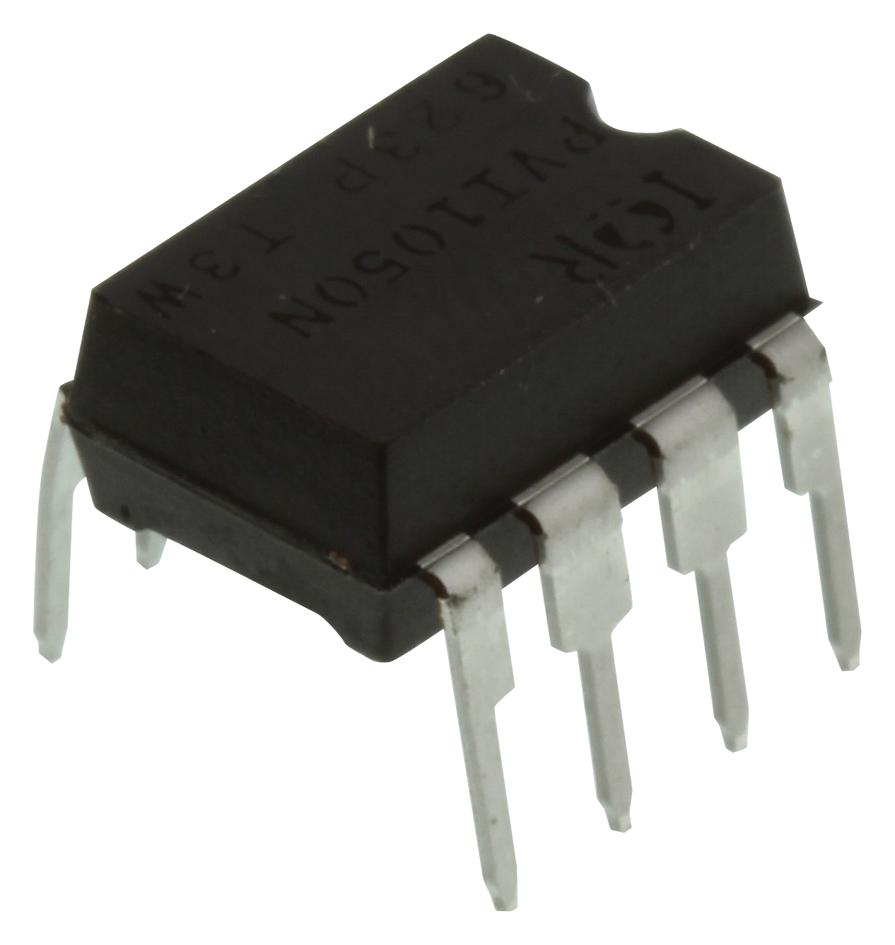

INFINEON PVI1050NPBF Photovoltaic Isolator
The PVI1050NPBF is a through-hole photovoltaic isolator designed to generate an electrically isolated DC voltage in response to a DC input signal. It can directly drive the gates of power MOSFETs or IGBTs, making it ideal for high-current and high-voltage switching applications requiring optical isolation between control circuitry and power loads. The device features a monolithic integrated circuit photovoltaic generator controlled by an optically isolated GaAlAs LED. Its dual-channel design allows for driving independent MOSFETs or connecting outputs in parallel or series to achieve higher current or voltage. The isolator includes fast turn-off circuitry for reliable switching, ensuring solid-state reliability and robustness in industrial and signal processing applications.
INFINEON PVI1050NPBF Photovoltaic Isolator Specifications:
- Input Current Range: 2.0 to 50 mA (DC)
- Maximum Forward Voltage Drop: 14 V at 10mA, 25°C
- Maximum Reverse Voltage: 6.0 V
- Maximum Reverse Current: 100 μA at -6.0V
- Open Circuit Voltage: 5.0 V per channel at ILED=10mA
- Short Circuit Current: 5.0 μA at ILED=10mA per channel
- Maximum Capacitance: 1.0 to 2.0 pF
- Maximum Ton Time: 300 μs at RL>20MΩ, 160 μs at RL=10MΩ, 90 μs
- Maximum Toff Time: 220 μs at ILED=10mA, loading 10pF
- Dielectric Strength Input-Output: 4000 V
- Output-to-Output Dielectric Strength: 1200 V
- Input-to-Output Insulation Resistance: 2 GΩ at 25°C, 50% RH, 100 Vdc
- Pin Soldering Temperature: +260°C for 10 sec
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +125°C
- RoHS Compliant
- Qualification Standards: JEDEC JESD471, J-STD-020E, J-STD-033C
Buy the International Series PVI Series Photovoltaic Isolator: PVI1050NPBF
Purchase the International PVI1050NPBF photovoltaic isolator online today to enhance your industrial control systems with high-voltage, high-current isolation. Its dual-channel, fast turn-off features and monolithic design ensure superior reliability and efficient gate driving of power MOSFETs and IGBTs. Equipped to handle demanding environments, this device offers excellent dielectric strength, low capacitance, and robust thermal performance, making it the ideal choice for signal processing, motor drives, and industrial automation applications. Order now for quick delivery and free technical support.
Buy International PVI1050NPBF now and experience unmatched reliability and performance for high-current switching and solid-state isolation.
Frequently Asked Questions
Where can I buy INFINEON PVI1050NPBF?
You can click on the BUY or RFQ button to purchase PVI1050NPBF from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part PVI1050NPBF?
You can download the PVI1050NPBF datasheet or visit the INFINEON website for support.
Who is the manufacturer of PVI1050NPBF?
INFINEON
