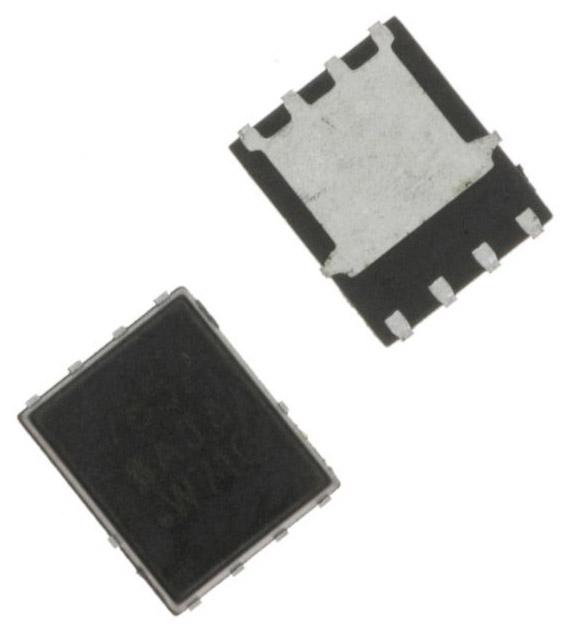

INFINEON IPL65R195C7AUMA1 High-Voltage Power MOSFET
The IPL65R195C7 power transistor from Infineon is a high-performance, 650V CoolMOS™ C7 series MOSFET designed for high efficiency and reliability in industrial applications. Featuring superjunction technology, it offers low gate charge, fast switching, high ruggedness, and excellent thermal performance. Suitable for PFC stages, hard switching PWM, telecom, server, UPS, and solar systems, its ThinPAK package enables compact, high-density designs. Proven in industrial environments, this device ensures system efficiency, lower cooling requirements, and long-term durability.
INFINEON IPL65R195C7AUMA1 High-Voltage Power MOSFET Specifications:
- Drain-source Voltage: 650V
- Continuous Drain Current: 65A
- Pulsed Drain Current: 49A
- Avalanche Energy, Single Pulse: 57mJ
- Avalanche Repetitive Energy: 0.29mJ
- Gate Threshold Voltage: 3.5V
- Maximum Gate-Source Voltage: ±20V
- On-Resistance: 0.0414Ω at Vgs=10V, Tj=150°C
- Body Diode Reverse Recovery Time: 700ns
- Maximum Power Dissipation: 75W
- Thermal Resistance Junction-Case: 1.66°C/W
- Junction to Ambient: 62°C/W
- Operating Junction Temperature Range: -40°C to +150°C
- Reflow Soldering Temperature: up to 260°C
- Device Package: ThinPAK SMD
- Insulation Withstand Voltage: 400V
- Reverse Diode Peak Recovery Current: 16A
- Gate Charge Total: 23nC
Buy the Infineon Series C7 650V MOSFET: IPL65R195C7
Purchase the Infineon IPL65R195C7 high-voltage power MOSFET online today for your industrial power systems. Designed with advanced superjunction technology, this 650V device offers low gate charge, fast switching, and excellent thermal stability. Its compact ThinPAK package enables high power density, reducing cooling needs and system size. Ideal for PFC, PWM, telecom, and solar applications, it ensures long-lasting reliability and efficiency. Secure your supply now to enhance your electrical projects with industry-leading technology and top-tier performance.
Order your Infineon Series C7 650V power transistor IPL65R195C7 today and give your industrial power projects the dependable efficiency and reliability they deserve.
Frequently Asked Questions
Where can I buy INFINEON IPL65R195C7AUMA1?
You can click on the BUY or RFQ button to purchase IPL65R195C7AUMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPL65R195C7AUMA1?
You can download the IPL65R195C7AUMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPL65R195C7AUMA1?
INFINEON
