INFINEON ISO1I811TXUMA1 Digital Input Module
The ISO11811T is a galvanic isolated 8-channel digital input interface designed for industrial automation applications, compliant with IEC61131-2 Type 1/2/3 standards. It features a compact TSSOP-48 package, integrated coreless transformer technology for high isolation, and supports both serial and parallel microcontroller interfaces with adjustable filters for noise suppression. The device provides reliable detection of signal states from sensors like proximity switches, with integrated LED indicators, and supports up to 125 kHz sampling rate, making it ideal for PLCs, industrial PCs, and control equipment in harsh environments.
INFINEON ISO1I811TXUMA1 Digital Input Module Specifications:
- Package: TSSOP-48, 8 mm x 12.5 mm
- Isolation Voltage: 500 Vac standard, UL1577 compliant
- Input Channels: 8 digital sensor inputs with current sink characteristic
- Sensor Types Supported: IEC61131-2 Type 1/2/3, two-wire proximity switches
- Supply Voltage VBB: 9.6 V to 35 V
- Logic Interface: 3.3/5V CMOS compatible, SPI and parallel modes
- Sampling Frequency: Up to 125 kHz
- Digital Filters: Adjustable deglitching filters, configurable latency
- Error Detection: Internal data transmission and VBB missing voltage monitoring
- Input Resistance: External resistor Rext 12kΩ, 2kΩ for status LEDs
- Operational Temperature Range: -40°C to +85°C
- Absolute Max Ratings: VBB -0.3 V to 45 V, VCC -0.3 V to 6.5 V
- Typical Power Dissipation: Not specified, externally powered
- Compliance: IEC61000-4-8, UL1577
- Communication Protocols: SPI, parallel, with configurable interface mode
- LED Indicators: Status LEDs for each input channel
- Application: PLCs, industrial control systems, automation, industrial PCs

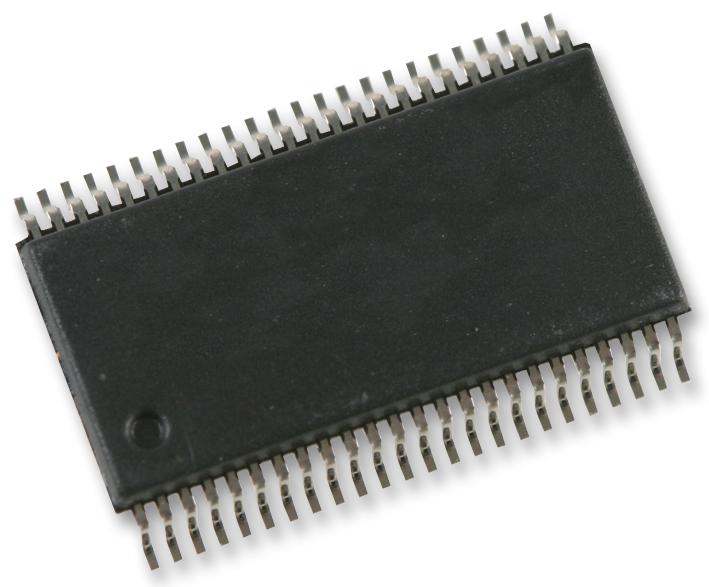

Buy the Buy Infineon ISO11811T Part Number ISO1I811TXUMA1 Online
Order the Infineon ISO11811T digital input module online today to enhance your industrial control setup with high isolation, noise filtering, and reliable sensor detection. This 8-channel interface with integrated LED indicators and support for IEC standards ensures robust performance in harsh environments. Perfect for PLCs and automation systems, the ISO11811T provides flexible serial and parallel connectivity, supporting up to 125 kHz sampling. Secure your supply and optimize your automation with this dependable, compact component from a trusted manufacturer.
Buy Infineon ISO11811T now and experience unmatched reliability and high-speed digital input detection in industrial automation systems.
