INFINEON IPL65R230C7AUMA1 Power MOSFET
The IPL65R230C7 is a high-voltage power MOSFET designed with Infineon's innovative CoolMOS™ C7 technology, optimized for efficient switching in power management applications. It features a 650V drain-source breakdown voltage, low gate charge, high ruggedness, and excellent thermal performance, making it suitable for PFC and hard switching PWM stages in industries such as computing, telecom, UPS, and solar. Its ThinPAK SMD package ensures minimal parasitic inductance for fast, reliable operations, with enhanced system efficiency and reduced cooling needs.
INFINEON IPL65R230C7AUMA1 Power MOSFET Specifications:
- Drain-source breakdown voltage: 650 V
- Maximum continuous drain current: 41 A
- Pulsed drain current: 41 A
- Avalanche energy, single pulse: 48 mJ
- Avalanche energy, repetitive: 0.24 mJ
- Gate threshold voltage: 3.5 V (typ.), 4 V (max.)
- Maximum gate-source voltage: ±20 V
- Drain-source on-resistance: 0.488 Ω (typ.) at Vgs=10V
- Total gate charge: 20 nc
- Input capacitance: 996 pF
- Output capacitance: 14 pF
- Reverse recovery time: 414 ns
- Diode forward voltage: 0.8 V
- Power dissipation: 67 W at Tc=25°C
- Thermal resistance junction-case: 1.87°C/W
- Operating junction temperature: -40°C to 150°C
- Storage temperature: -40°C to 150°C

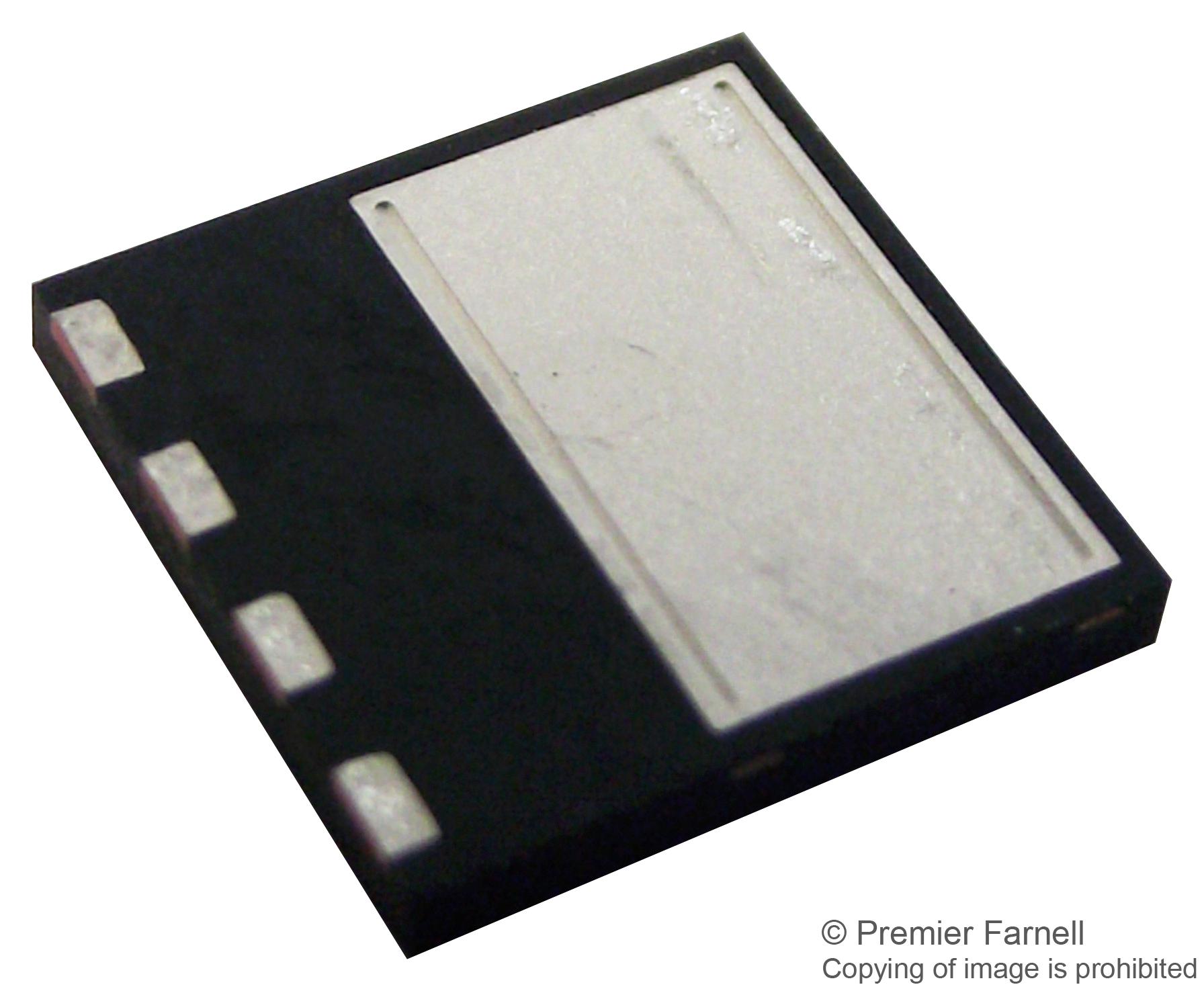

- Package: ThinPAK SMD, minimal parasitic inductance
- Insulation withstand voltage: 650 V
Buy the Buy Infineon CoolMOS C7 Power Transistor Part Number IPL65R230C7 Online
Enhance your power management systems by purchasing the Infineon IPL65R230C7 power MOSFET online. Featuring 650V breakdown voltage, low gate charge, and excellent thermal performance, this device provides high efficiency, reliable switching, and reduced cooling requirements. Its ThinPAK SMD package ensures minimal parasitic inductance for fast, dependable operation in PFC stages, telecom, UPS, and solar applications. Get superior system efficiency and space savings by choosing this high-quality, easy-to-implement power transistor from Infineon.
Order your Infineon Series IPL65R230C7 650V Power Transistor today and ensure your power systems benefit from fast switching, high efficiency, and reliable performance.
Frequently Asked Questions
Where can I buy INFINEON IPL65R230C7AUMA1?
You can click on the BUY or RFQ button to purchase IPL65R230C7AUMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPL65R230C7AUMA1?
You can download the IPL65R230C7AUMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPL65R230C7AUMA1?
INFINEON
