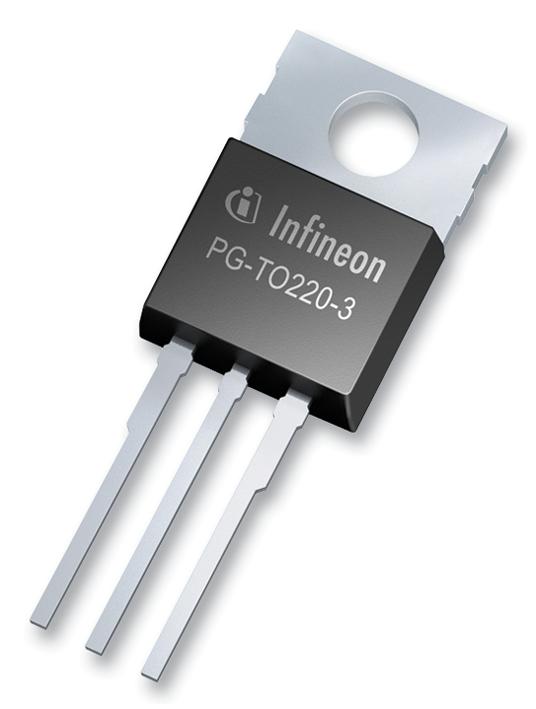

INFINEON IPP023N04NGXKSA1 High-Current Power MOSFET
The Infineon IPP023N04N G is a high-current N-channel MOSFET designed for power switching applications such as ORing and uninterruptible power supplies. It offers low on-resistance, excellent avalanche robustness, and is RoHS compliant. Qualified according to JEDEC standards, this device features a maximum drain current of 90 A, a breakdown voltage of 40 V, and supports pulse currents up to 400 A with a thermal resistance of 0.9 K/W. Its robust construction is suitable for demanding industrial power management, ensuring reliable operation and long-term durability in various electronics systems.
INFINEON IPP023N04NGXKSA1 High-Current Power MOSFET Specifications:
- Drain-source breakdown voltage: 40 V
- Continuous drain current: 90 A at 25°C
- Pulsed drain current: 400 A
- Avalanche energy: 150 mJ
- Power dissipation: 167 W
- Thermal resistance junction-case: 0.9 K/W
- Operating temperature range: -55°C to 175°C
- Gate threshold voltage: 2 V to 4 V
- Gate-source voltage: ±20 V
- On-state resistance Rds(on): 1.9 to 2.3 mΩ
- Input capacitance: 10,000 pF
- Output capacitance: 2,700 pF
- Reverse recovery charge: 80 nC
- Package options: PG-TO220-3 and PG-TO263-3
- RoHS compliant, halogen-free, avalanche tested
Buy the Infineon Series Power-Transistor: High-Current N-Channel MOSFET 40V: IPP023N04N G
Enhance your power management system with the high-current Infineon Power MOSFET offering low Rds(on), excellent avalanche robustness, and reliable performance up to 175°C. Designed for demanding industrial, automotive, and aerospace applications, this device provides durable, efficient switching capabilities. Its low gate charge facilitates faster switching, reducing power loss, while the compact PG-TO220-3 and PG-TO263-3 packages ensure easy integration into existing systems. Trust Infineon for quality, performance, and longevity in your power electronics solutions.
Get Infineon IPP023N04N G today—built for precision and long-lasting durability in power switching and industrial applications.
Frequently Asked Questions
Where can I buy INFINEON IPP023N04NGXKSA1?
You can click on the BUY or RFQ button to purchase IPP023N04NGXKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPP023N04NGXKSA1?
You can download the IPP023N04NGXKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPP023N04NGXKSA1?
INFINEON
