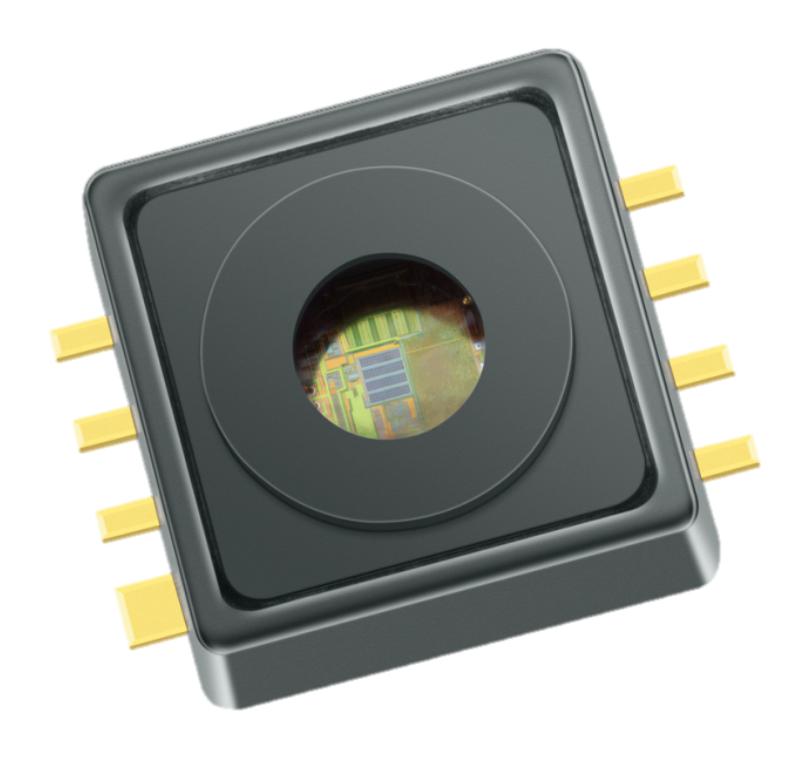

INFINEON KP212K1409XTMA1 Analog Pressure Sensor
The KP212K1409 is a high-precision analog absolute pressure sensor designed for manifold air pressure measurement, industrial control, and automotive applications. It features a capacitive sensing element with a ratiometric analog output, offering excellent accuracy (+ 1.0 kPa) across a broad temperature range (-40°C to 125°C). Packaged in a compact green SMD housing, it includes broken wire detection and internal calibration storage. Suitable for medical and consumer uses, it converts pressure measurements from 15 kPa to 115 kPa into 0.5 V to 4.5 V signals, ensuring reliable performance in demanding environments.
INFINEON KP212K1409XTMA1 Analog Pressure Sensor Specifications:
- Pressure Range: 15 kPa to 115 kPa
- Output Voltage: 0.5 V to 4.5 V (ratiometric)
- Supply Voltage: 4.5 V to 5.5 V
- Operating Temperature: -40°C to 125°C
- Accuracy: ±1.0 kPa
- Output Noise: 18 mVpms (max)
- Response Time: 0.65 to 1.0 ms
- Power Consumption: Typical 8 mA, Max 10 mA
- Package: PG-DSOF-8-16, RoHS compliant, green SMD housing
- Clamping Levels: -0.5 V to 4.5 V
- Protection: Broken wire detection, ESD resistance 2 kV (HBM)
- Calibration: Internal EEPROM with linearization parameters
- Applications include manifold air pressure sensing, industrial control, medical, and consumer electronics
- Dimensions: Package optimized for mechanical stress, suitable for Pb-free soldering
Buy the Cinfineon KP212K1409 – Reliable Analog Pressure Sensor for Industrial Applications
Order the Cinfineon KP212K1409 pressure sensor online today to enjoy superior accuracy, compact design, and robust diagnostics. This high-precision device is perfect for manifold air pressure measurement, industrial controls, and automotive systems. Its ratiometric output ensures consistent readings across temperature variations, while broken wire detection provides added safety. With a user-friendly SMD package and internal calibration, it guarantees durability in demanding environments. Make your purchase now and empower your applications with reliable, industry-grade pressure sensing technology.
Buy Cinfineon KP212K1409 now and experience unmatched reliability and performance in pressure sensing for automotive, industrial, and medical uses.
