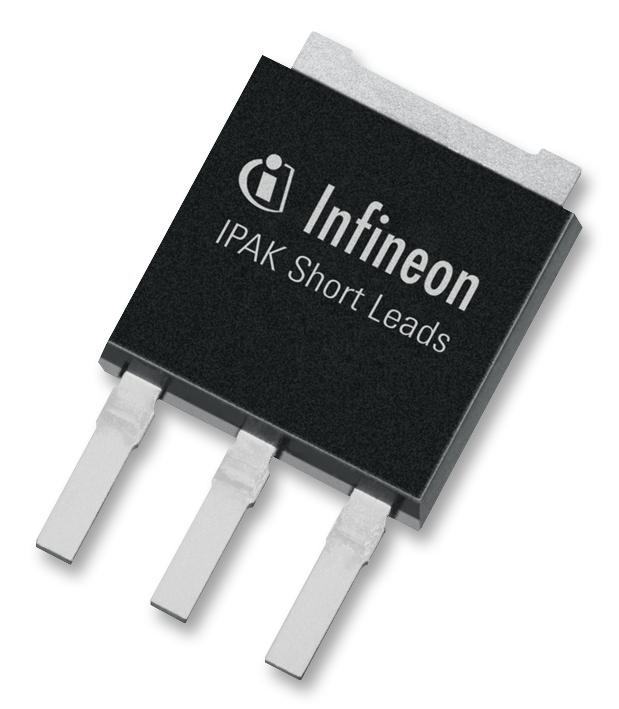

INFINEON IPS80R900P7AKMA1 800V Power MOSFET
The IPS80R900P7 is an 800V CoolMOS™ P7 power transistor designed for high-efficiency switching in industrial and consumer applications. It features industry-leading FOM Rosjon, reduced Qg, Ciss, and Coss, integrated ESD protection, and is qualified for industrial grade applications per JEDEC standards. Its high voltage, low on-resistance, and optimized gate charge enable higher power density, BOM savings, and reliable operation in flyback, LED lighting, chargers, PFC stages, and solar inverters. Easy drive and parallel operation make it suitable for demanding power switching environments.
INFINEON IPS80R900P7AKMA1 800V Power MOSFET Specifications:
- Maximum drain-source voltage: 800 V
- Continuous drain current: 3.9 A at Tj=100°C
- Pulsed drain current: 14 A
- Avalanche energy: 13 mJ (single pulse), 0.11 mJ (repetitive)
- Gate threshold voltage: 3 to 3.5 V
- Drain-source on resistance: 4.99 Ω
- Gate charge total: 15 nc
- Operating temperature range: -55°C to 150°C
- Thermal resistance junction-to-ambient: 62 °C/W
- Power dissipation: 45 W at Tj=25°C
- ESD classification: ±2 kV (HBM)
Buy the Buy Infineon 800V Power MOSFET Part Number IPS80R900P7 Online
Purchase the Infineon IPS80R900P7 high-voltage power MOSFET online now to benefit from industry-leading efficiency, low on-resistance, integrated ESD protection, and reliable operation suitable for LED lighting, solar, high-power switching, and PFC applications. Designed for easy parallel operation and high power density, this device ensures reduced BOM costs, higher yields, and robust performance across demanding environments. Shop now for fast delivery and technical support to optimize your power designs with confidence.
Order your Infineon IPS80R900P7 high-voltage power transistor today and enhance your industrial and consumer power switching projects with reliable performance.
