INFINEON IPSA70R900P7SAKMA1 Superjunction Power MOSFET
The 700V CoolMOS P7 Power Transistor is a high-performance superjunction MOSFET optimized for cost-sensitive consumer applications such as chargers, adapters, and lighting. It features ultra-low conduction and switching losses, excellent thermal behavior, and integrated ESD protection, supporting high efficiency and high power density designs in slim form factors. Its rugged dv/dt capability and high ESD tolerance make it suitable for demanding switching environments, providing reliable operation in various power management and energy-efficient systems.
INFINEON IPSA70R900P7SAKMA1 Superjunction Power MOSFET Specifications:
- Drain-source breakdown voltage: 700 V
- Continuous drain current: 35 A at Tj=100°C
- Pulsed drain current: 12.8 A at Tc=25°C
- Power dissipation: 30.5 W at Tc=25°C
- Thermal resistance, junction to ambient: 62 °C/W
- Gate threshold voltage: 3 V to 3.5 V
- Maximum operating junction temperature: 150 °C
- Gate-source voltage: -30 V to 30 V
- Reverse diode forward voltage: 0.9 V at Ir=1.4A
- Gate charge Qg: 6.8 nC
- Switching times: turn-on approx. 12 ns, turn-off approx. 58 ns
- Maximum dv/dt: 100 V/ns
- ESD class: HBM 1C
- Package: PG-TO 251 (IPA-Short Lead with ISO-Standoff)

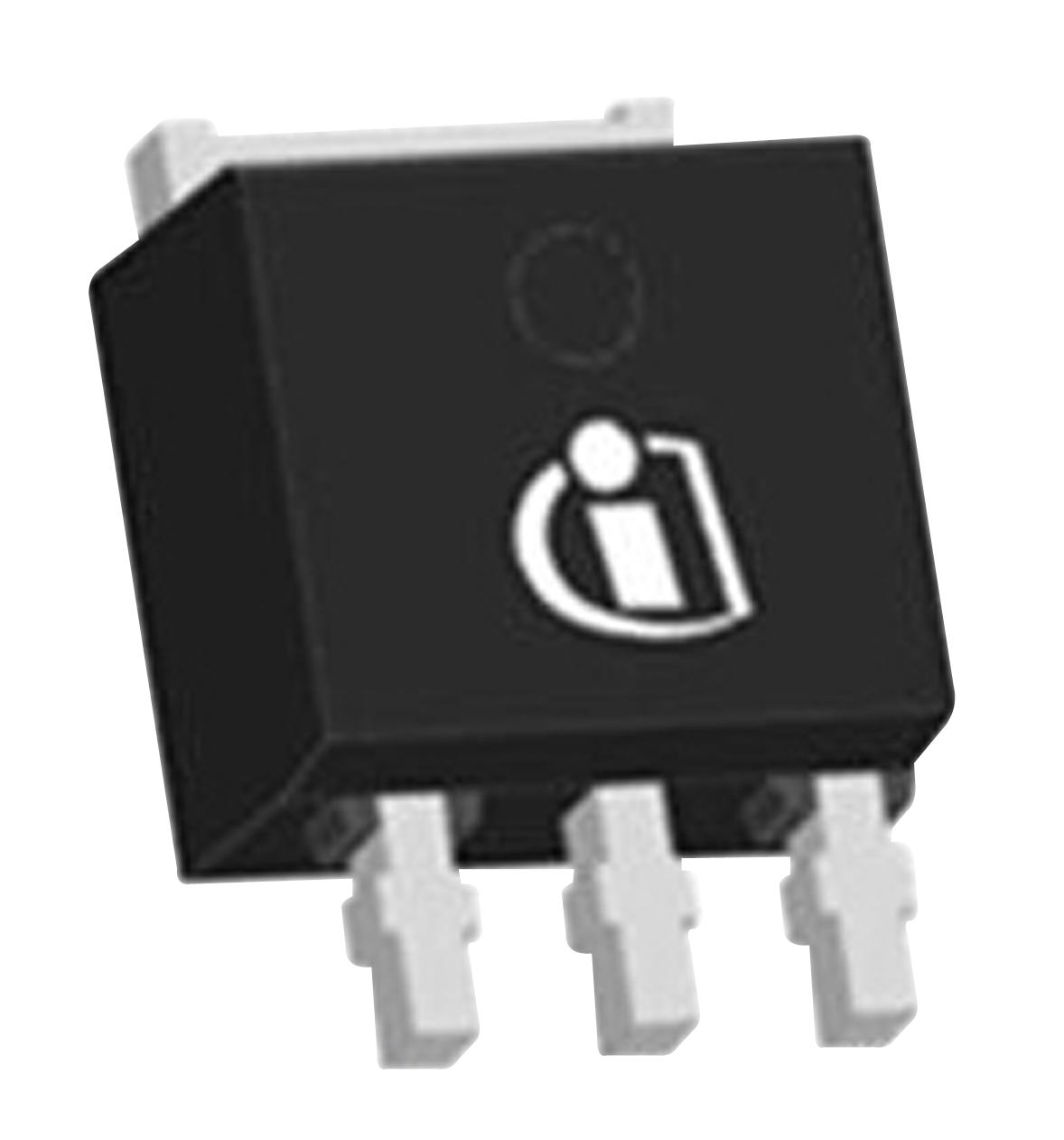

Buy the Buy Infineon 700V CoolMOS™ P7 Power Transistor Part Number IPSA70R900P7S Online
Discover the 700V CoolMOS P7 Power Transistor from Infineon, designed for efficient high-voltage switching in consumer applications like chargers and lighting. This superjunction MOSFET provides extremely low conduction and switching losses, supporting high power density and slim design options. Its excellent thermal and electrostatic ruggedness ensure reliable operation under demanding conditions while enabling high efficiency and energy savings. Perfect for energy-efficient power supplies, adapters, and flyback topologies, this transistor guarantees dependable performance for your advanced electronic systems.
Order your Infineon Series IPSA70R900P7S 700V CoolMOS P7 Power Transistor today and give your high-voltage switching projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy INFINEON IPSA70R900P7SAKMA1?
You can click on the BUY or RFQ button to purchase IPSA70R900P7SAKMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPSA70R900P7SAKMA1?
You can download the IPSA70R900P7SAKMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPSA70R900P7SAKMA1?
INFINEON
