INFINEON TLE5014C16XUMA1 GMR Angle Sensor
The TLE5014 is a robust, GMR-based angular position sensor designed for automotive steering applications. Featuring 360° magnetic field measurement, high voltage tolerance, reverse polarity capability, and integrated EEPROM for configuration and ID storage, it provides precise angle output with a maximum error of 1°. Built according to safety standards like ASIL-D, it incorporates internal safety mechanisms with a SPFM > 97% and interfaces such as PWM, SPC, and SENT. Its compact, RoHS compliant package ensures reliable, long-term operation in harsh environments over temperature ranges from -40°C to 125°C.
INFINEON TLE5014C16XUMA1 GMR Angle Sensor Specifications:
- Sensing principle: Giant Magneto Resistance (GMR)
- Angle measurement: 360° absolute, 12-bit output
- Maximum angle error: 1° over lifetime and temperature range
- Temperature range: -40°C to 125°C, Grade 1 (Q100)
- Magnetic field range: 25mT to 80mT at 25°C
- Supply voltage: 4.2V to 5.5V
- Output interfaces: PWM, SPC, SENT
- EEPROM capacity: 112-bit customer ID, calibration data, configuration
- Power dissipation: approximately 85-86 mW in typical operation
- ESD protection: 4kV (HBM)
- Package: PG-TDSO-16, halogen free, RoHS compliant
- Safety compliance: Developed according to ISO 26262, ASIL-D capable
- Magnetic sensitivity in orthogonal GMR bridges, temperature compensation via lookup tables
- Internal safety mechanisms with SPFM > 97%, configurable look-up tables for error correction

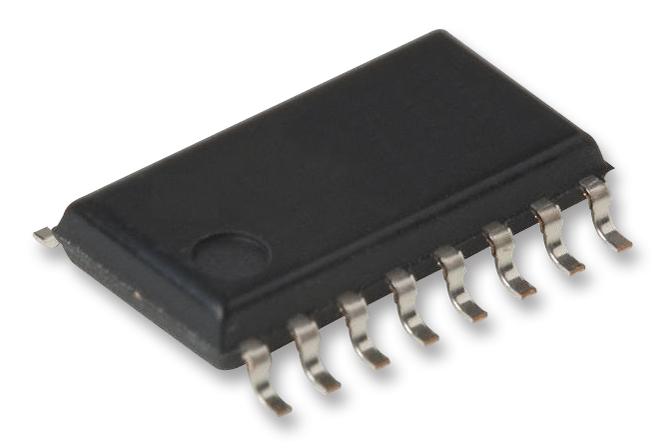

Buy the Infineon Series TLE5014 Angle Sensor: TLE5014C16XUMA1
Enhance your automotive safety and precision with the Infineon Series TLE5014GMR Angle Sensor, engineering reliable 360° position measurement. Featuring integrated EEPROM, robust safety mechanisms, and multiple interface options such as PWM, SPC, and SENT, this sensor operates over -40°C to 125°C, ensuring durability in harsh environments. Its advanced GMR technology guarantees 1° maximum error over the product lifetime, making it ideal for critical applications like steering angle detection. Order online now for fast delivery and benefit from easy integration into your automotive systems.
Order your Infineon Series TLE5014C16 angle sensor today and give your automotive projects the dependable accuracy and safety features they deserve.
