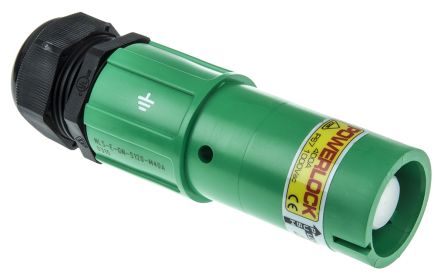

ITT CANNON 0782391610 Circular Connector, Powerlock
The ITT CANNON NLS-N-W-S120-M40A circular connector is a high-performance solution for power transmission in demanding environments. Designed with a Veam Powerlock & Snaplock series, it offers a secure bayonet mating system and robust IP67 ingress protection. The connector's high-temperature thermoplastic shell and M40A cable gland (for 19-28mm cable OD) ensure durability and reliability. It is ideal for applications requiring high current carrying capacity (400A) and voltage resistance (2KVac / 3KVdc), such as industrial machinery, power distribution systems, and heavy equipment.
ITT CANNON 0782391610 Circular Connector, Powerlock Specifications:
- Series: Line Source (male contact)
- Shell Style: Neutral
- Color: White
- Contact Type: 120 mm set screw
- Cable Gland: M40A cable gland (Cable OD 19-28 mm)
- Maximum Current Rating: 400 A
- Maximum Rated Voltage to Earth: 2KVac / 3KVdc
- Minimum Flashover: 9.5K Vdc or Ac peak
- Operating Temperature Range: -30°/+125°
- Insulation Resistance: <5 M ohms @500Vdc
- Ingress Protection (Mated): IP67
- Protection Against Electrical Shock: IP2X
- Flammability: UL94-V0
- Contact Retention: Nylon Pin
- Mating Method: Bayonet
- Mating Cycles: 500
- Operating Voltage: 1000Vac
- Shell Material Finish: High temperature thermoplastic
Buy the 078239-1610 ITT CANNON Circular Connector | myMectronic
Purchase the ITT CANNON NLS-N-W-S120-M40A connector securely and conveniently online.
